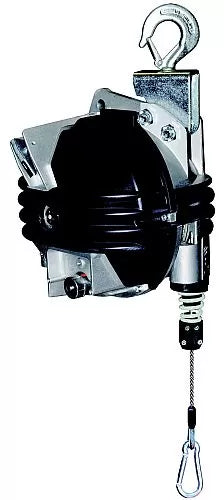

Zero Gravity Balancers 9434G-9435G-9436G-9437G-9438G-9439G-9440G-9441G-9442G-9443G-9444G
Features
- Rubbered protection.
- Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Auxiliary safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device.
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Lining up upper hook.
- Visible cable for inspection.
- Inert spring drum assembly.
Technical Data
| ITEM | 9434G | 9435G | 9436G | 9441G | 9442G | 9443G | 9444G | |
| Capacity | kg | 35-45 | 40-50 | 50-60 | 60-70 | 70-80 | 80-90 | 80-100 |
| Stroke | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Net weight | kg | 25.69 | 24.88 | 25.91 | 26.79 | 27.98 | 29.13 | 29.69 |
| Gross weight | kg | 27.50 | 26.60 | 27.60 | 28.50 | 29.70 | 30.80 | 31.40 |
| Package dimensions | mm | 670 295 286 |
670 295 286 |
670 295 286 |
670 295 286 |
670 295 286 |
670 295 286 |
670 295 286 |
