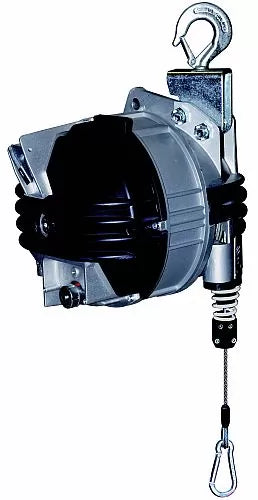

Tecna 9451G/9456G Zero Gravity Balancers, Capacity 100/180 kg

TECNA

Tecna 9451G/9456G Zero Gravity Balancers, Capacity 100/180 kg

£ POA

Please call for best price.

Features

  • Rubbered protection.
  • Ribbed and sealed monobloc construction in aluminium alloy.
  • Stainless steel rope.
  • Adjustable capacity by means of a worm screw.
  • Auxiliary safety suspension.
  • Safety device against load dropping due to the spring breakage (>3kg).
  • Centrifugal safety device.
  • Upper rotary suspension with safety hook.
  • Locking device to block the load at any height.
  • Adjustable stroke limiting device.
  • Taper drum rotating on ball bearings.
  • Cable guide in antifriction material.
  • Rotary upper hook with ball bearing.
  • Lining up upper hook.
  • Visible cable for inspection.
  • Inert spring drum assembly.

Technical Data

ITEM 9451G 9452G 9453G 9454G 9455G 9456G
Capacity kg 100-115 115-130 130-140 140-150 150-160 160-180
Stroke mm 3000 3000 3000 3000 3000 3000
Net weight kg 37.83 37.99 39.74 40.06 42.13 44.43
Gross weight kg 40.0 40.1 41.9 42.2 44.3 46.6
Package dimensions mm 670
300
360		 670
300
360		 670
300
360		 670
300
360		 670
300
360		 670
300
360
