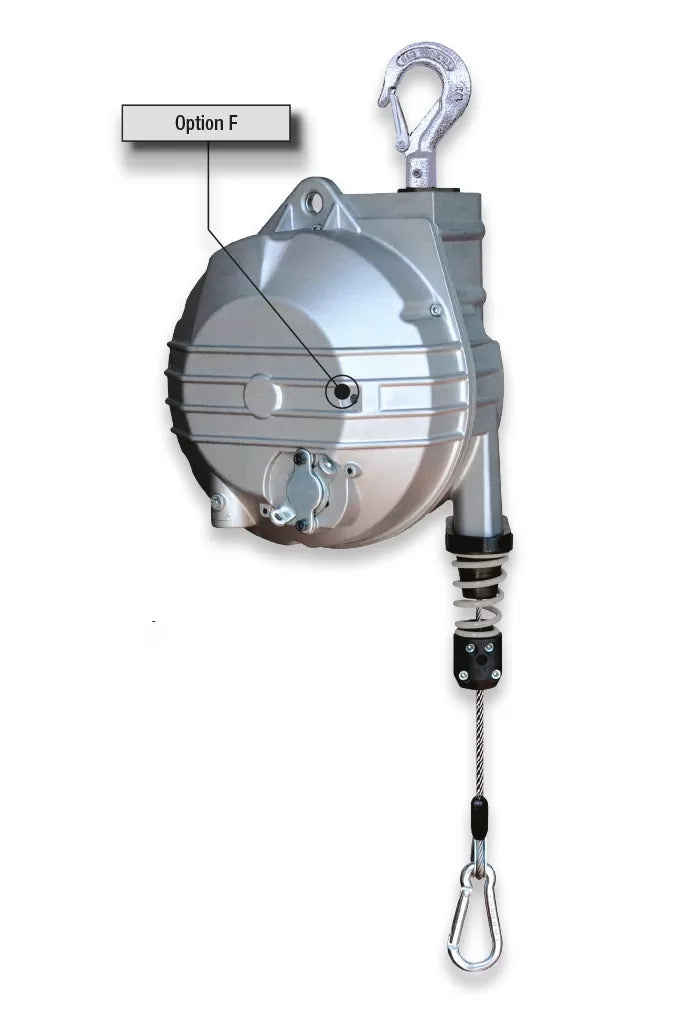

Zero Gravity ESD Balancers 9502ES/9509ES – Capacity 20/100 kg
9502ES / 9503ES / 9504ES / 9505ES / 9506ES / 9507ES / 9508ES / 9509ES
Features
- Certification for ESD-PROTECTED AREAS (EPA)
- Anti-electrostatic materials
- Grounded-Ribbed and sealed monobloc construction in aluminium alloy.
- Stainless steel rope.
- Adjustable capacity by means of a worm screw.
- Safety suspension.
- Safety device against load dropping due to the spring breakage (>3kg).
- Centrifugal safety device.
- Upper rotary suspension with safety hook.
- Locking device to block the load at any height.
- Adjustable stroke limiting device.
- Taper drum rotating on ball bearings.
- Cable guide in antifriction material.
- Rotary upper hook with ball bearing.
- Lining up upper hook.
- Inert spring drum assembly.
- Operating temperature between + 5°C to + 60°C.
Technical Data
| ITEM | 9502ES | 9503ES | 9504ES | 9505ES | 9506ES | 9507ES | 9508ES | 9509ES | |
| Capacity | kg | 20-30 | 30-40 | 40-50 | 50-60 | 60-70 | 70-80 | 80-90 | 90-100 |
| Stroke | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 |
| Net weight | kg | 12.60 | 15.20 | 15.50 | 16.70 | 15.50 | 17.70 | 16.20 | 16.80 |
| Gross weight | kg | 14.40 | 17.00 | 17.30 | 18.50 | 17.30 | 19.50 | 18.00 | 18.60 |
| Package dimensions | mm | 590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
590 265 260 |
