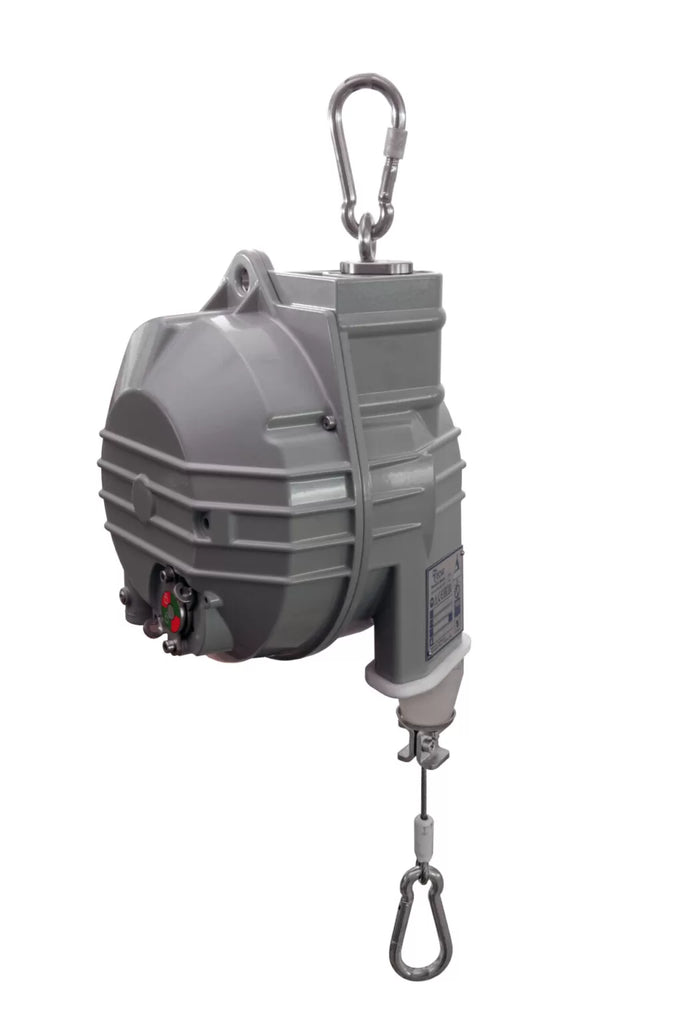

Tecna 9502RL/9325RL Food Industry Zero Gravity Balancers, Capacity 12/100 kg

The TECNA FOOD INDUSTRY ZERO GRAVITY balancer is designed for various sectors including: food & beverage, meat slaughtering and processing, dairy, confectionery and baking, industrial washing and sanitation. Depending on the chosen model, the TECNA FOOD INDUSTRY ZERO GRAVITY balancer (9502RL-9503RL-9504RL-9505RL-9506RL-9507RL-9508RL-9509RL-9520RL-9521RL-9522RL-9523RL-9524RL-9525RL) offers a load capacity from 12 to 100 kg with a cable stroke of 2100 mm.

Features

• Cast aluminium housing with special high-strength Rilsan ® treatment against oxidation and chemical aggression from soaps and detergents
• Smoother surface facilitates cleaning and sanitization
• Food grade rope guide, shock absorber and wire cap
• Rustproof and Stainless Steel exterior materials
• Rustproof and Stainless Steel interior materials
• NSF-H1 certified food grade grease
• Ribbed and sealed monobloc construction in aluminium alloy.
• Stainless steel rope.
• Adjustable capacity by means of a worm screw.
• Auxiliary safety suspension.
• Safety device against load dropping due to the spring breakage (>3kg).
• Centrifugal safety device
• Upper rotary suspension with safety hook.
• Locking device to block the load at any height.
• Adjustable stroke limiting device.
• Taper drum rotating on ball bearings.
• Cable guide in antifriction material.
• Lining up upper hook.
• Inert spring drum assembly.
