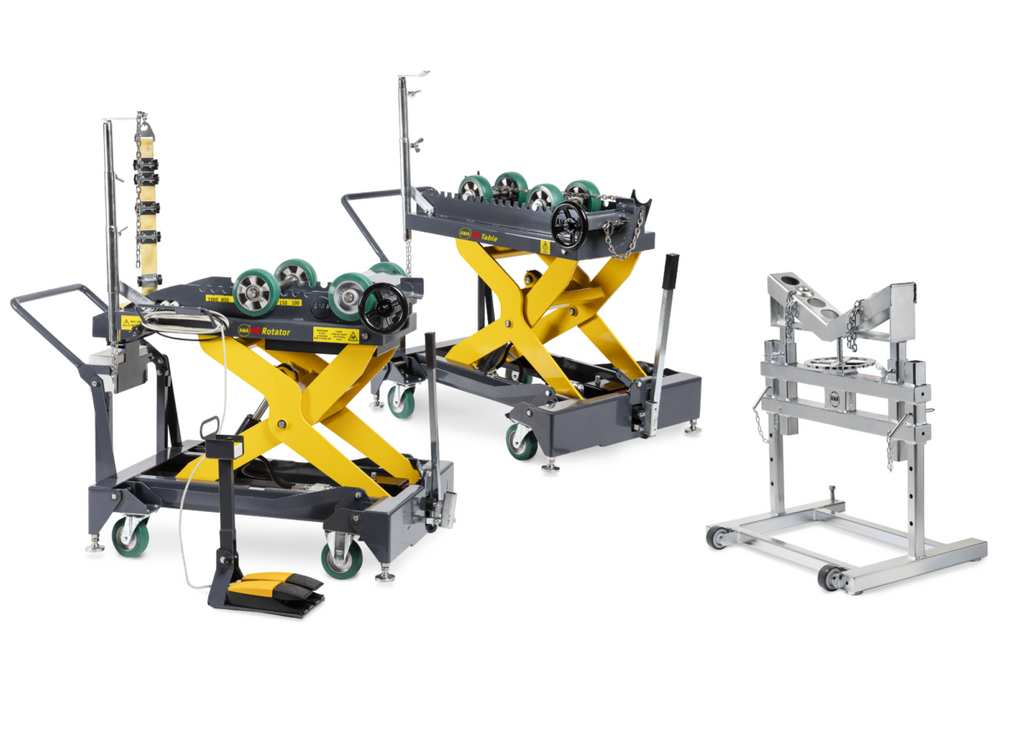

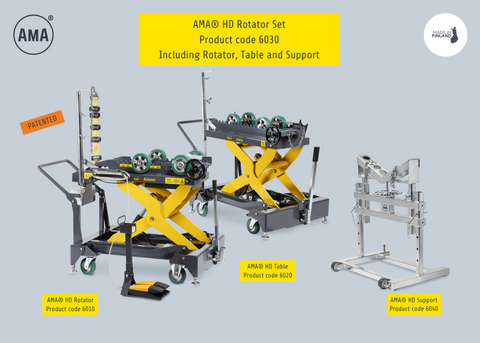

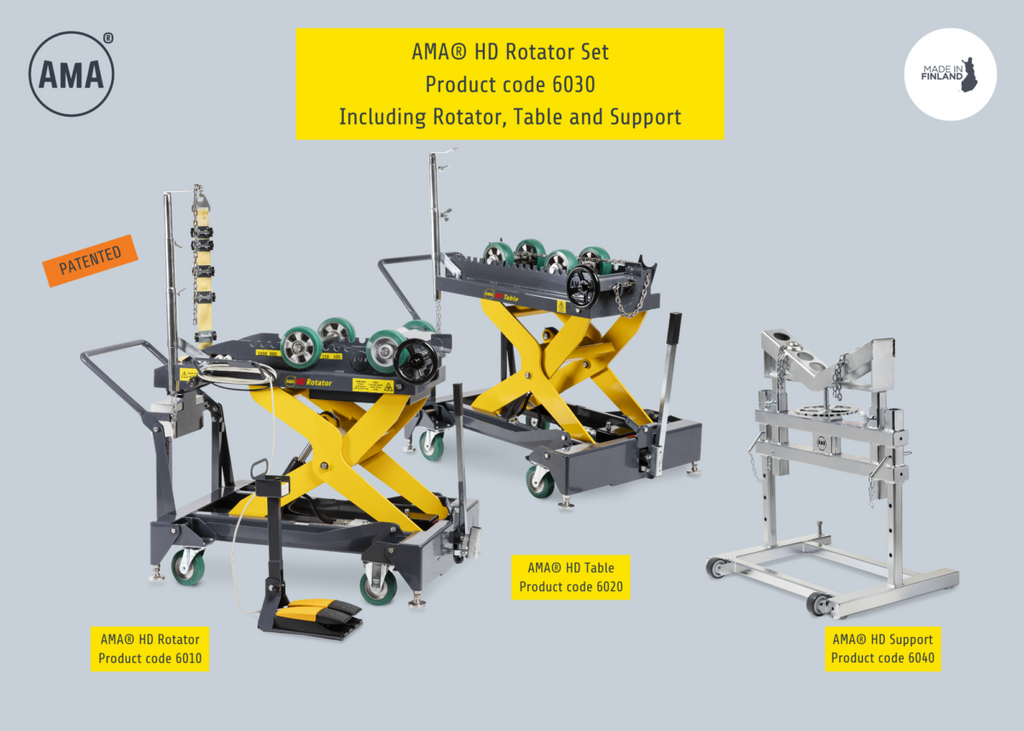

AMA AMA-6030 HD Rotator Set c/w HD Rotator/HD Table & HD Support

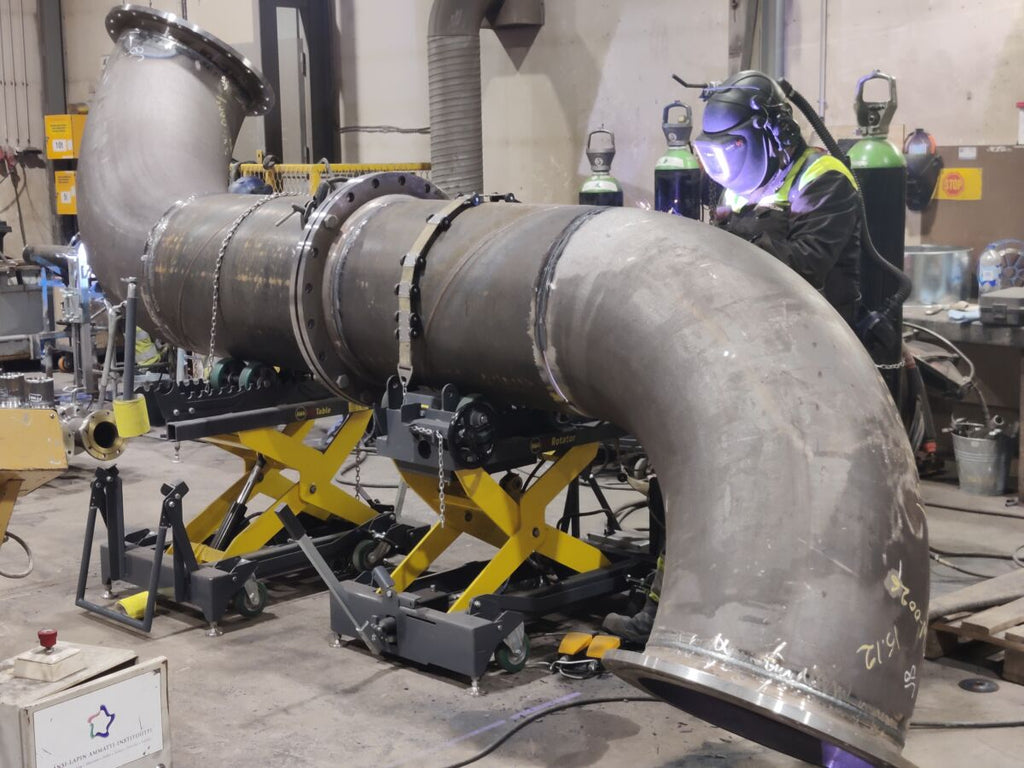

With the patented AMA® HD Rotator Set, even large pipes can be rotated easily and ergonomically. Motorized rollers rotate pipes with diameters up to 1,000 mm. AMA® HD Rotator Set including motorized HD Rotator, manual roller HD Table and sturdy pipe stand HD Support.

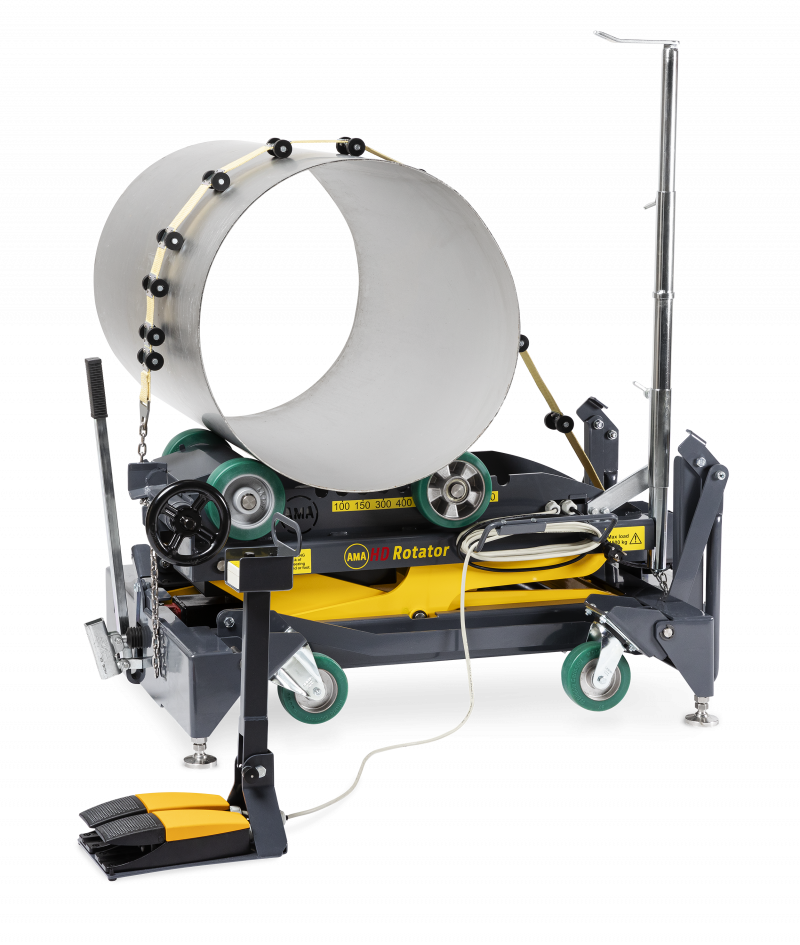

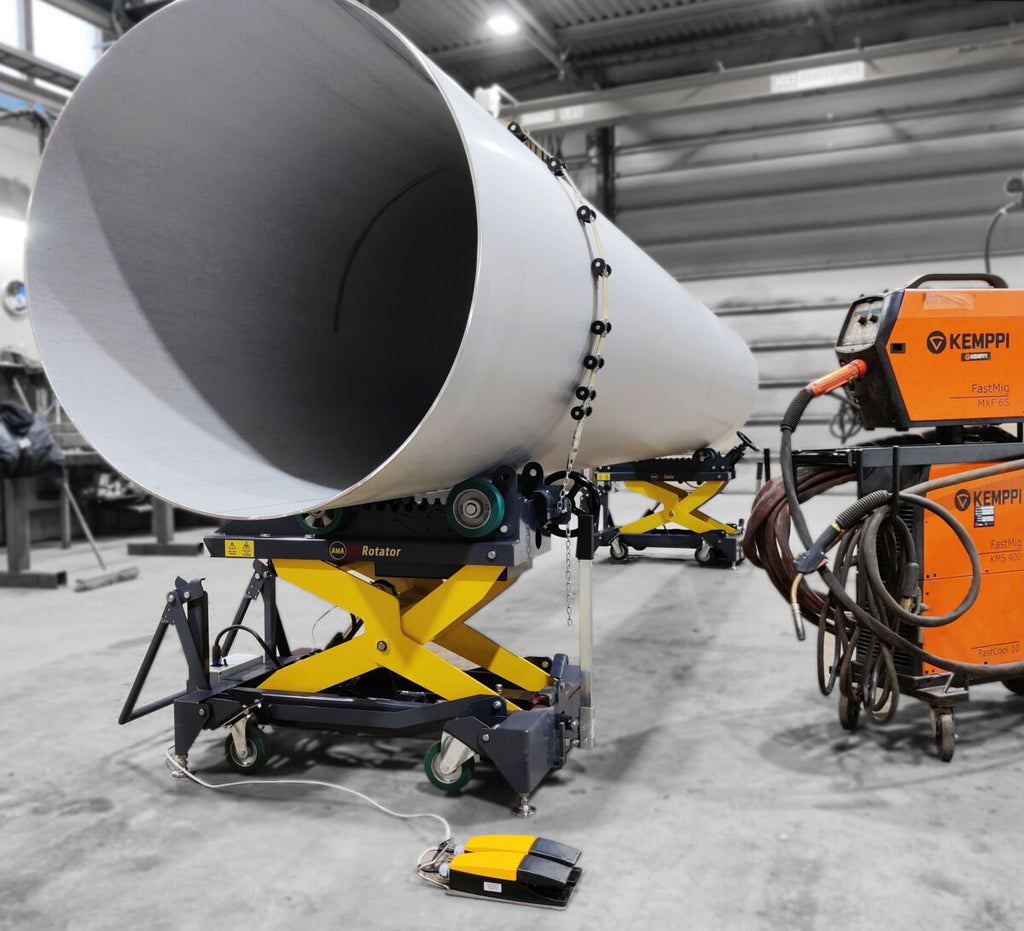

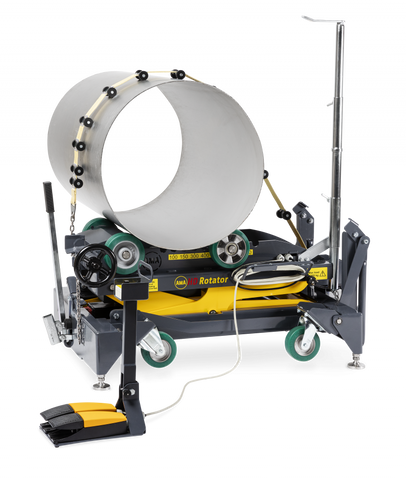

Motorised, easy-to-move, heavy duty pipe rotator (6010)
- For pipe diameters of 100 – 1,000 mm
- Mains operation
- Ergonomic working position
- Height adjustment range 440 – 870 mm (from the bottom of the pipe)
- Height is adjusted manually with a hydraulic pump
- Space-saving, easy to move on wheels
- Stands firmly on legs during use
- Good grip thanks to a roller belt, which keeps the pipe firmly against the rotator wheels
- Speed can be controlled from a pedal or the potentiometer of the control panel
- The direction of pipe rotation is selected with foot pedals
- Pull-out rack for angle grinder
- Maximum load 1500 kg
- Weight 215 kg

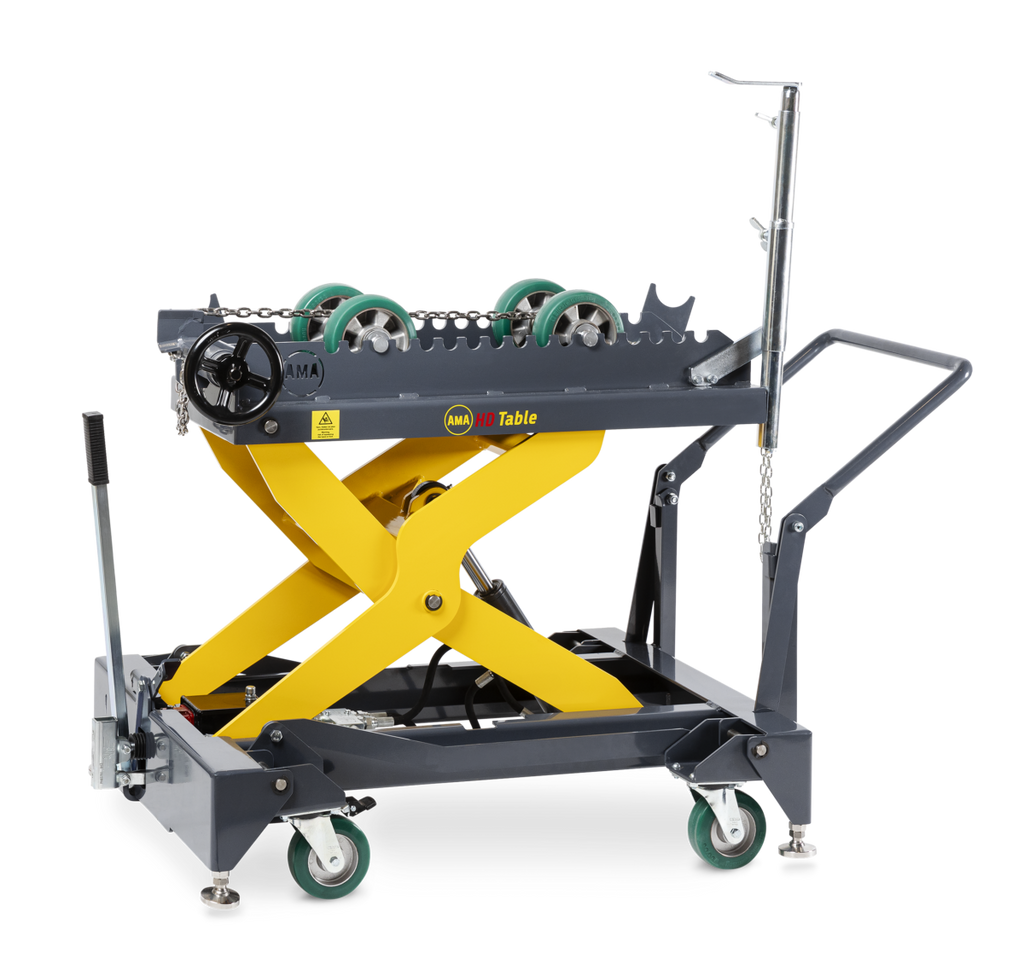

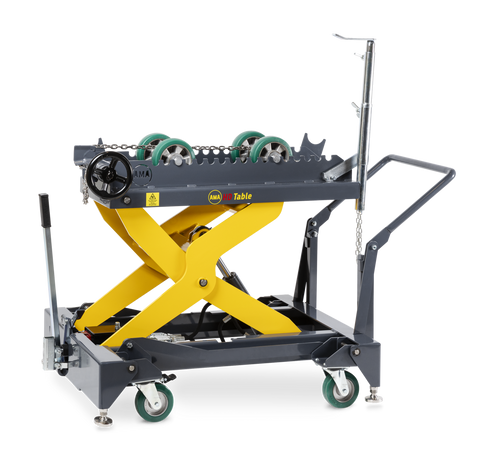

Heavy duty hydraulic manual roller table(6020)
- Non-motorised pipe stand
- For pipe diameters of 100 – 1,000 mm
- Great auxiliary stand when using the HD Rotator
- Pipes rotate smoothly on rubber wheels
- Equipped with fastener chain -> Can also be used alone without a motorised rotator
- Height is adjusted manually with a hydraulic pump
- Height adjustment range 440 – 870 mm (from the bottom of the pipe)
- Ergonomic working position
- Space-saving, easy to move on wheels
- Stands firmly on legs during use
- Pull-out rack for angle grinder
- Maximum load 1500 kg
- Weight 165 kg

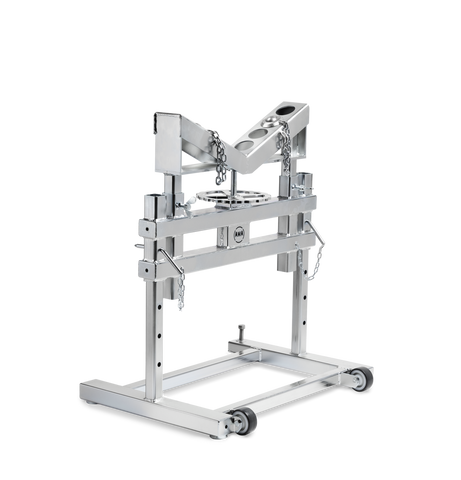

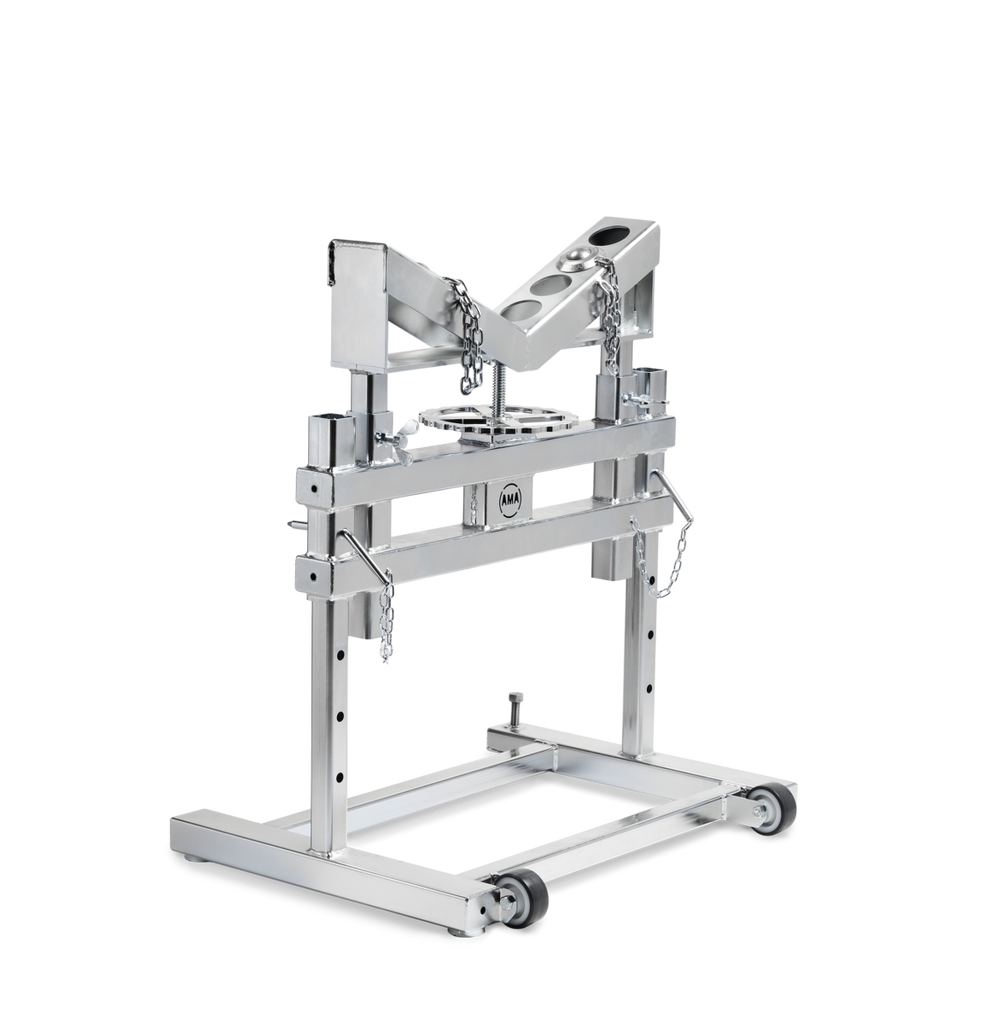

Sturdy galvanized pipe stand with ball casters (6040)
- Convenient auxiliary stand for use with AMA® HD rotators
- For pipe diameters of 100 – 1,200 mm
- Pipes rotate smoothly on stainless steel ball casters
- Height can be adjusted even with a pipe on it

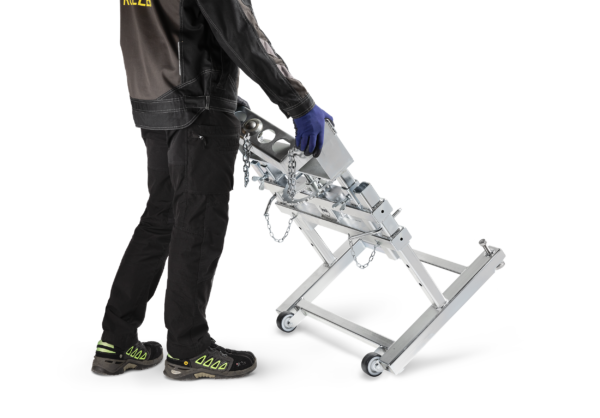

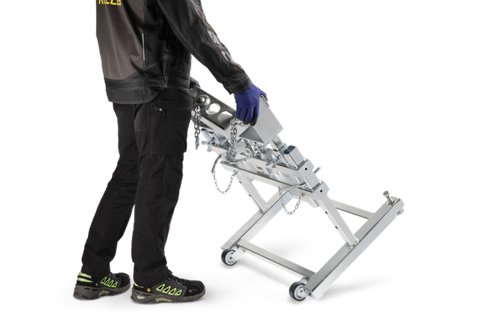

- Easy to move by tilting on the wheels
- Maximum load 900 kg
- Weight 43 kg
