AMA AMA-7010 Roller Pipe Rotator System 110V c/w Foot Pedal & Pipe Stand A
Boosts Productivity up to 30% – Pipe Stand Set For Professionals
The pipe rotator is an accessory for AMA’s A pipe stand, and is suitable for both preparatory workshops and job sites. The device rotates pipes at the desired speed and the welder doesn’t have to constantly change positions. The pipe rotator streamlines work in many phases.
The AMA roller® is a machine designed to rotate pipe to make pipe welding, cutting and post clean up easier. Supplied with a foot control, the AMA pipe rotator allows the user to set the speed on the machine and easily start / stop rotation by depressing / releasing the foot control.
Suitable for construction sites and fabrication workshops the AMA pipe roller increases speed and efficiency of a pipe welders work.
How the roller works-

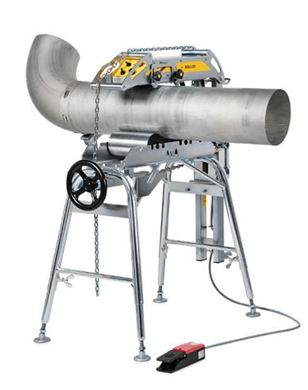

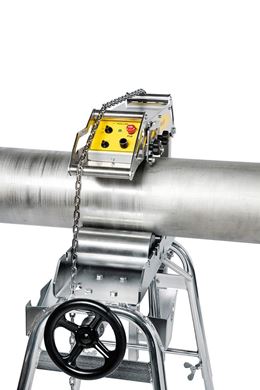

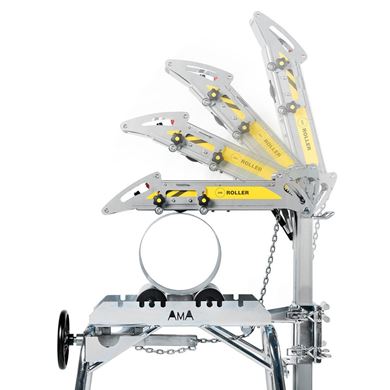

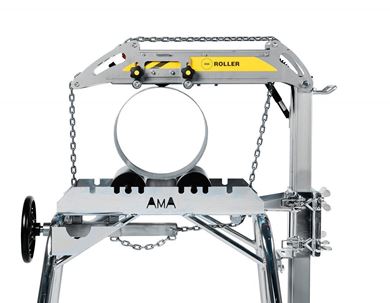

The pipe roller is attached to an AMA stand A with the pipe to be rotated placed on the rollers. The arm is positioned at the correct height for the pipe to be rolled and the powered rollers should be in contact with the top of the pipe. A retaining chain is fixed into place and can be tightened using the handle on the pipe stand A. Using the control panel, the operator can then turn the powered roller on and off, change speed and reverse rotation as required. The foot control is used to start and stop rotation, for hands free operation.
Features
- Facilitates cutting with an angle grinder

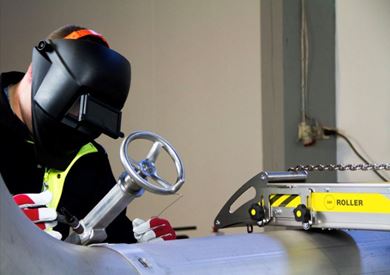

- Easier, faster welding and assembling tack welding (no interruptions, seam resembles a robot weld)
- Cleaning of back welds and brushing of seams
- Suitable for all manual welding methods: MIG, MAG, covered electrode arc welding, and TIG
- Enables welding of difficult materials in one ergonomic position
- Quicker brushing of stainless steel seams
- Quick-release fastener for easy fastening / removal from AMA’s A pipe stand
- Suitable for pipe diameters from 30 to 508 mm
- Weight: 23 kg
- Torque: 30 Nm
- Adjustable rotating speed and direction
- Foot pedal-operated
