AMA AMA-7070 Roller Pipe Rotator 110V Mounted on Pipe Stand A c/w Wireless Foot Pedal

  • Sale
  • £5,850.00

Excludes VAT

AMA AMA-7070 Roller Pipe Rotator 110V Mounted on Pipe Stand A c/w Wireless Foot Pedal

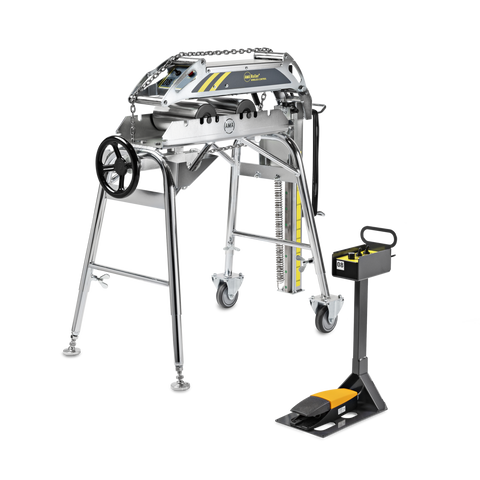

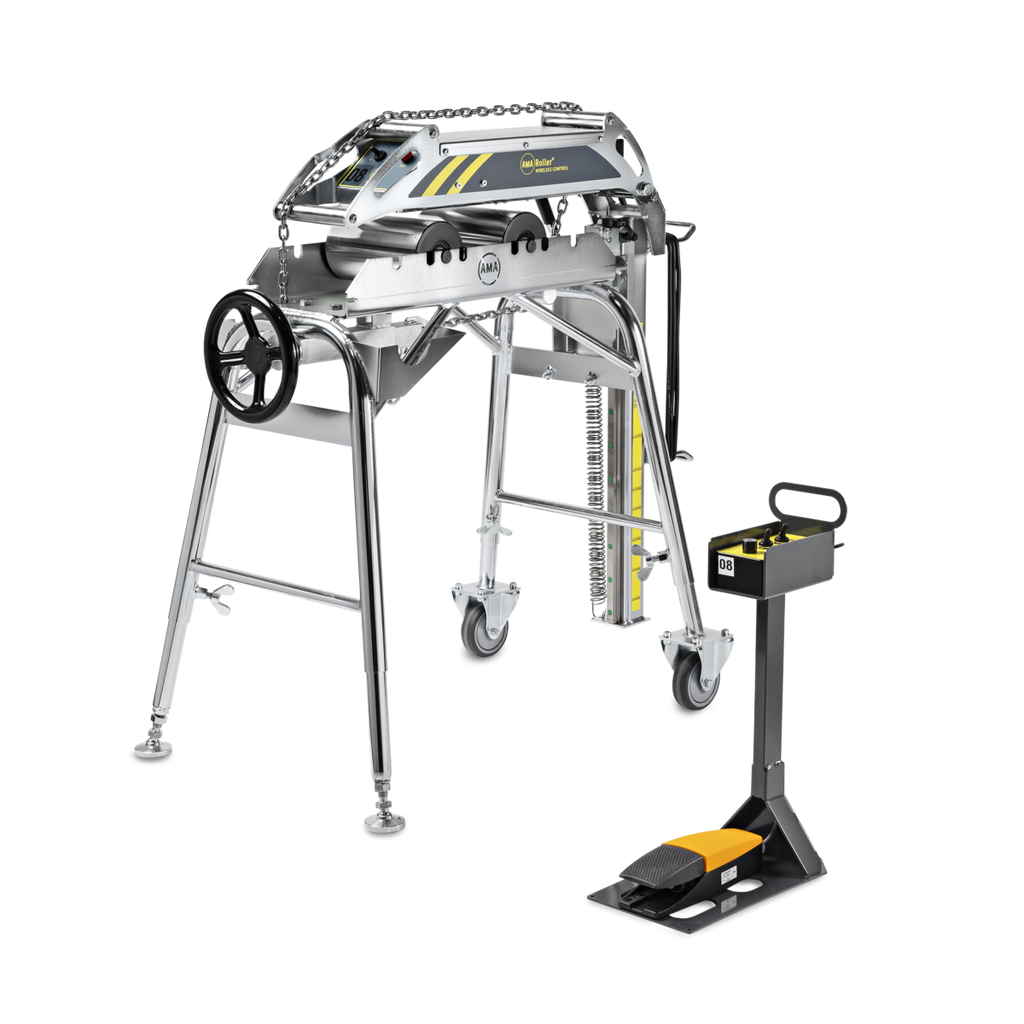

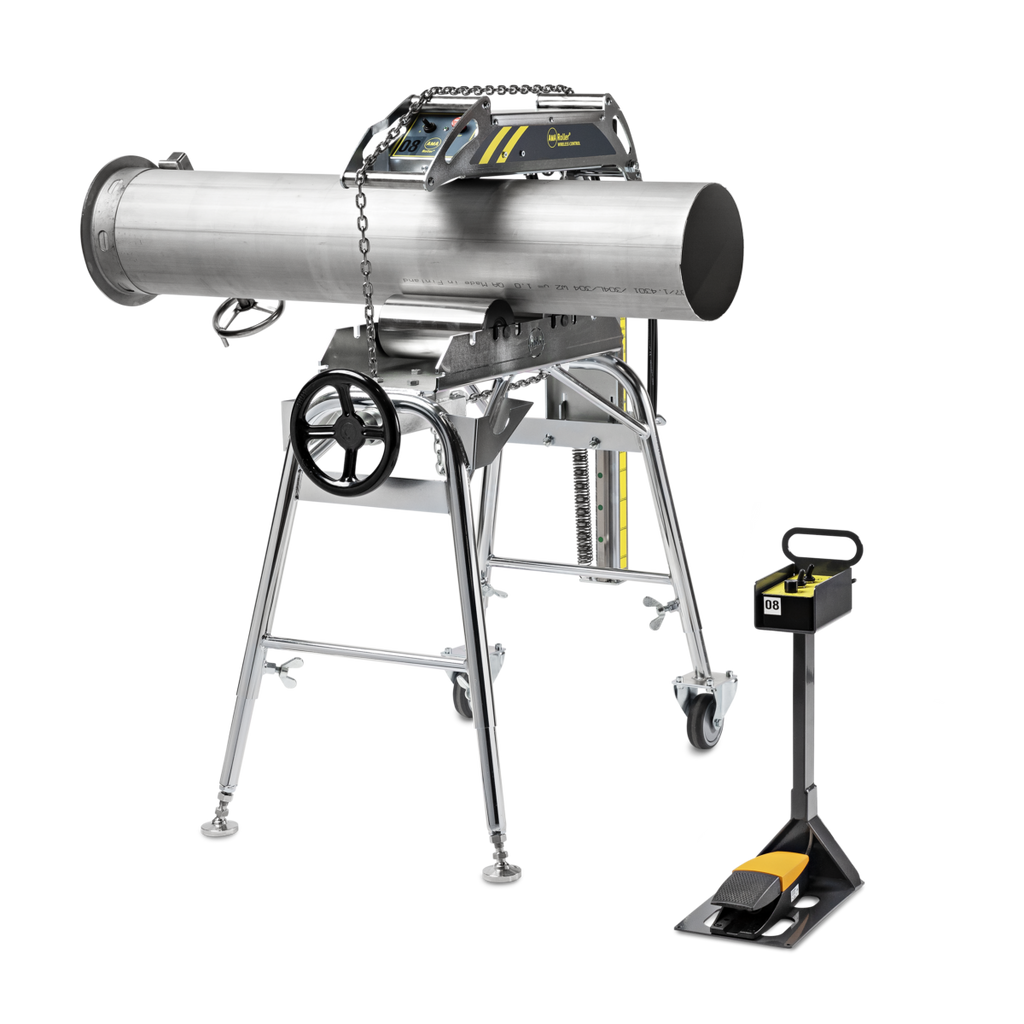

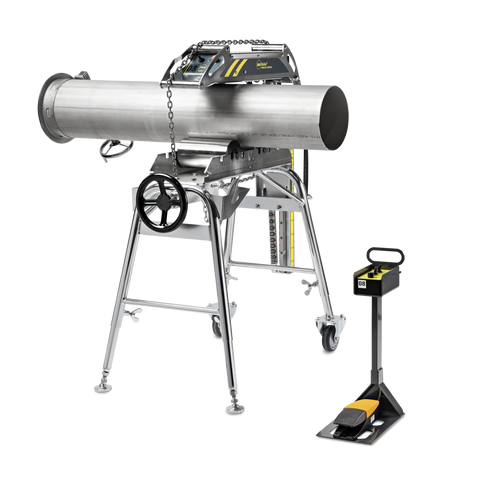

The patented AMA Roller® is supplied mounted on AMA’s A pipe stand and is suitable for both prefabrication and on-site use.

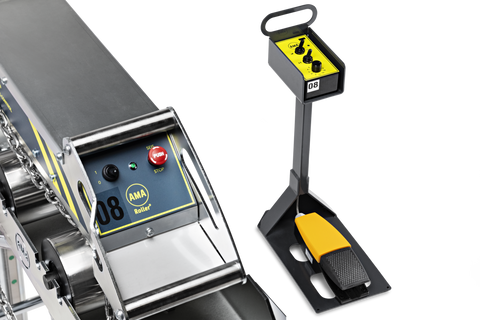

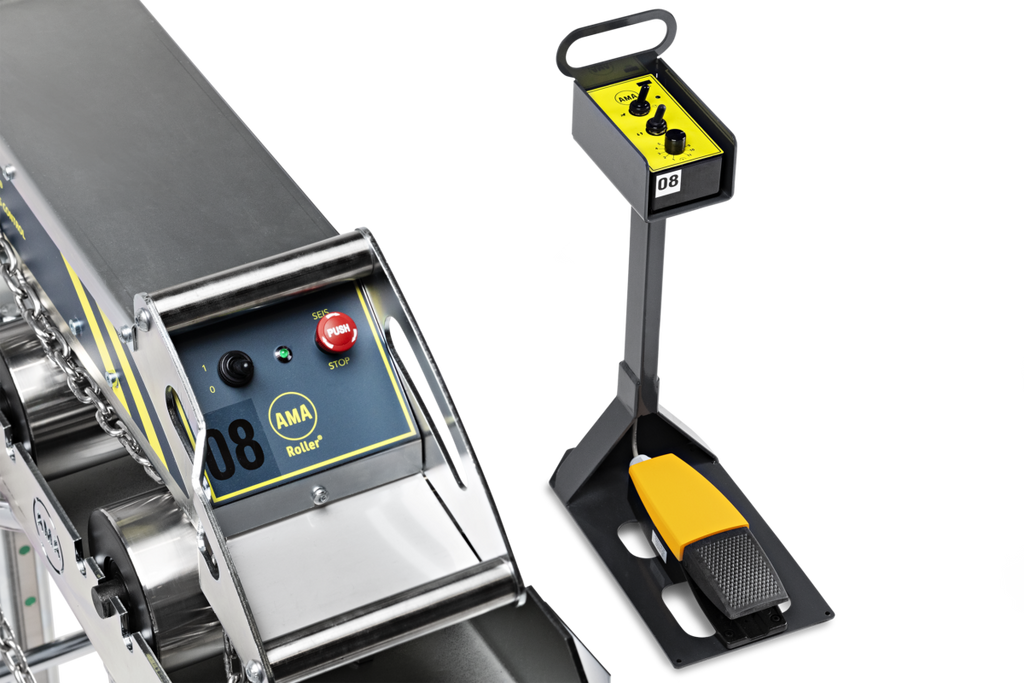

New Bluetooth wireless control allows you to weld even up to 25 meters away from the AMA Roller® pipe rotator. Wireless control reduces the number of wires on site and now the rotation speed control can be selected either by foot pedal or manually from the control knob on the control unit!

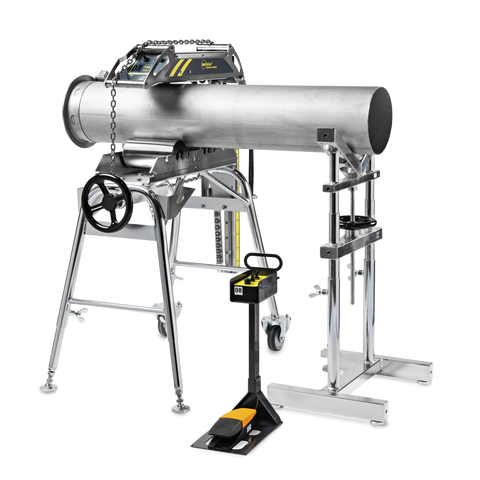

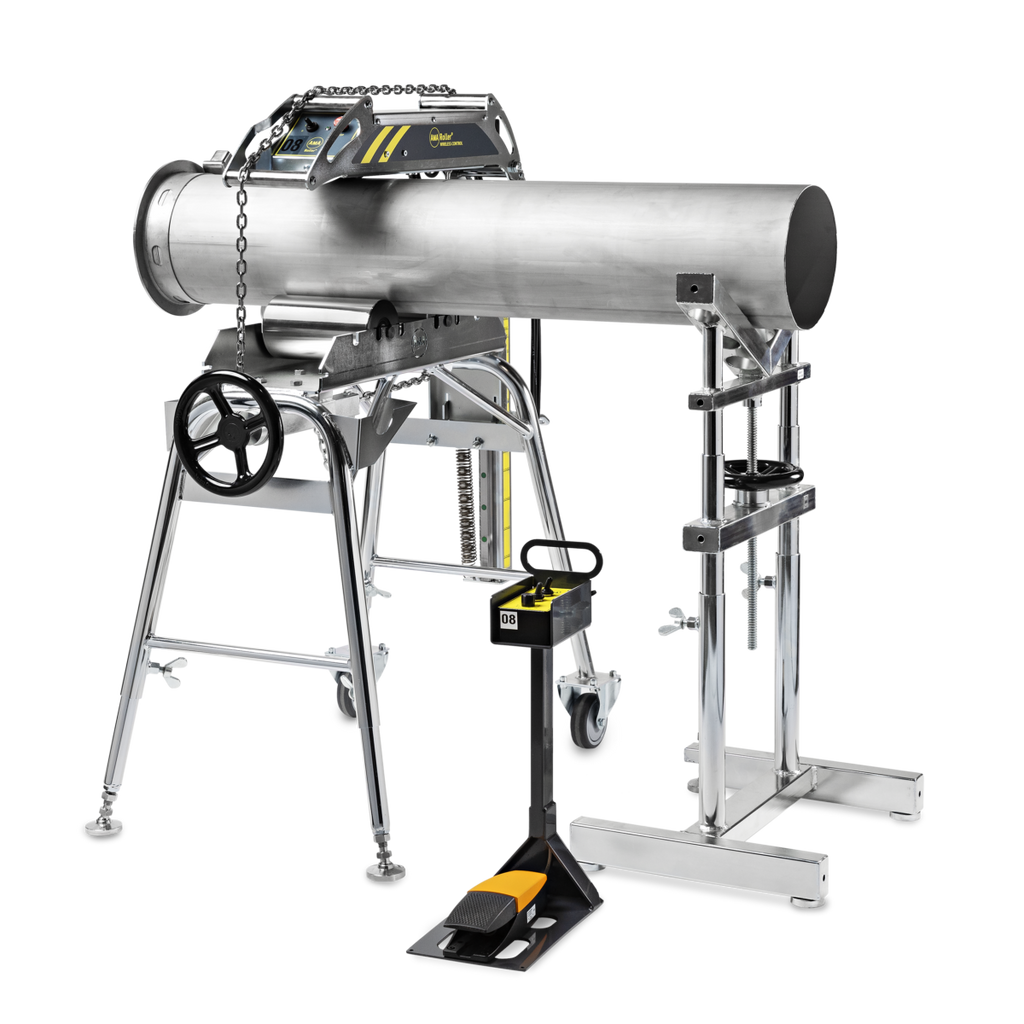

The device rotates pipes at the desired speed and the welder doesn’t have to constantly change positions. The AMA Roller® pipe rotator streamlines work in many phases.

Features

  • Easier, faster welding and assembling tack welding (no interruptions, seam resembles a robot weld)
  • Easy to handle long pipes with wireless control
  • Facilitates cutting with an angle grinder
  • Quicker cleaning of back welds and brushing of stainless steel seams
  • Suitable for all manual welding methods: MIG, MAG, covered electrode arc welding, and TIG
  • Enables welding of difficult materials in one ergonomic position
  • Quick-release fastener for easy fastening / removal from AMA’s A pipe stand
  • Significantly improves the quality of welded seams
  • Difficult materials can be welded in one ergonomic position
  • Minimises differences in skill levels between individuals
  • Labour productivity grows
  • Makes the welder’s work more enjoyable
  • Enables MIG/MAG welding of pipes

Technical Data

  • Suitable for pipe diameters from 30 to 508 mm
  • Weight 23 kg (+ pipe stand A 33 kg)
  • Maximum rotating load 30 Nm
  • Nominal voltage 220/230 V
  • Current 0.9 A, frequency 50/60 Hz, power 100 W
  • Maximum rotation speed 1.7 m/min
  • Heat resistance of the drive wheel 120 °C
  • Patented and CE-marked
  • Bluetooth connection between the device and the control unit
  • USB-C charging socket on the control unit (charger included)
  • Control unit battery : Li-Ion, 3,7V/3300mAh

Useful features

  • Suitable for pipe diameters from 30 mm to 508 mm

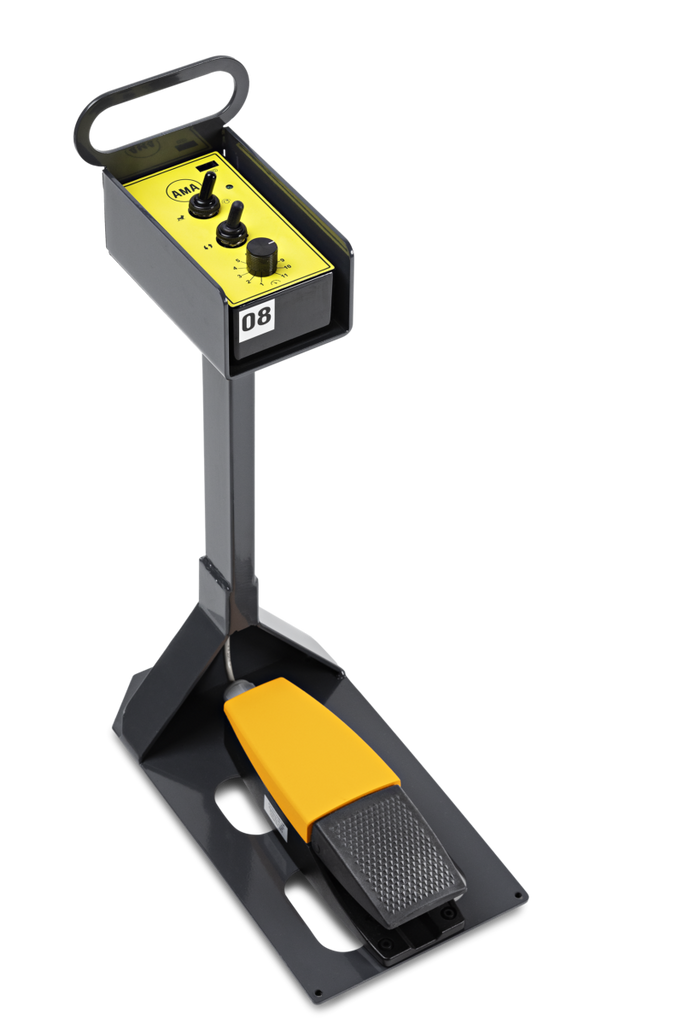

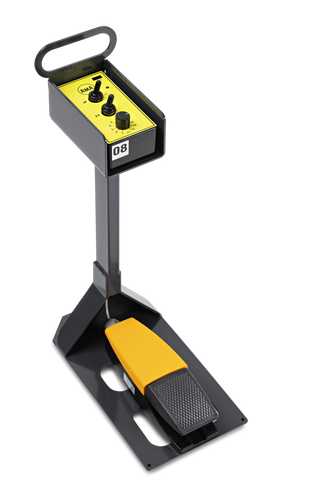

  • Wireless foot pedal control with Bluetooth connection
  • Easy to move thanks to the rear wheels
  • The rotation speed can be adjusted either by foot pedal or speed control knob
  • The AMA Roller can be assisted by AMA´s B pipe stands, depending on the length of the pipe
