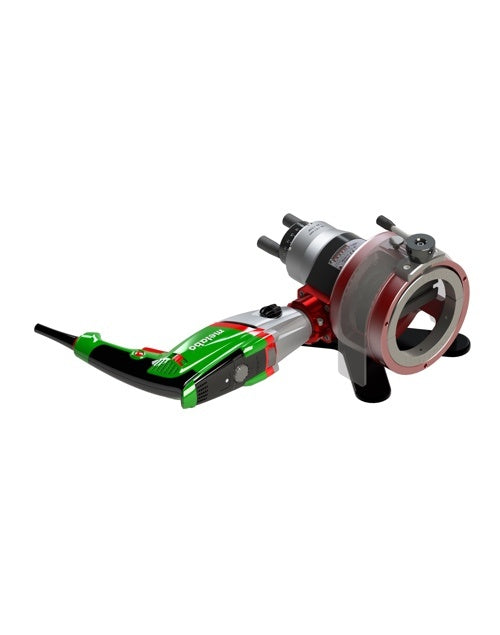

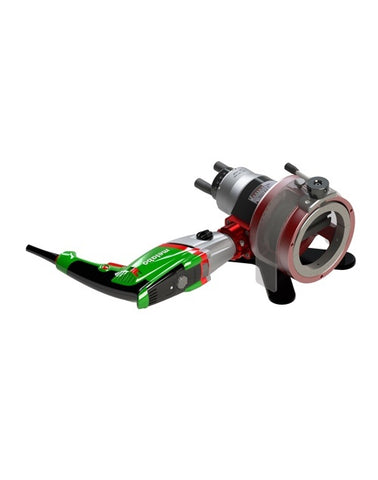

Axxair DC115-AMx Orbital Facing Diameter ø12 - ø115mm
Orbital facing machine : portable, lightweight and designed to be used on site as well as in the workshop.
Tube facing consists in bringing the end of a tube or an accessory into conformity and acts on 3 aspects: the perpendicularity of the tube face (maintenance) - the surface state of the face - a length adjustment.
Burfree facing, the chip unrolls towards the outside of the tube, perfect preparation for thin tubes before orbital welding.
Burr-free tube squaring and bevelling machine
Thickness < 3mm ( according to material )
Ideal tool to face a band saw cut before automatic welding
Accurate manual advance: 0.1 mm step graduation 4/1000 inches
Sliding adjustment of tool holder offers easy diameter change and optimal tip wearing
30° and 45° outside bevel possible with optional tool holder
Squaring and bevelling in one operation
Possibility to use two tools simultaneously
Minimal straight length of the tube: 28 mm
Delivered in high quality protection case
Light and compact : 11 kg / 24 lbs
Motor 1100W with large speed range (2 gear)
Worm and gear transmission for optimal speed range
