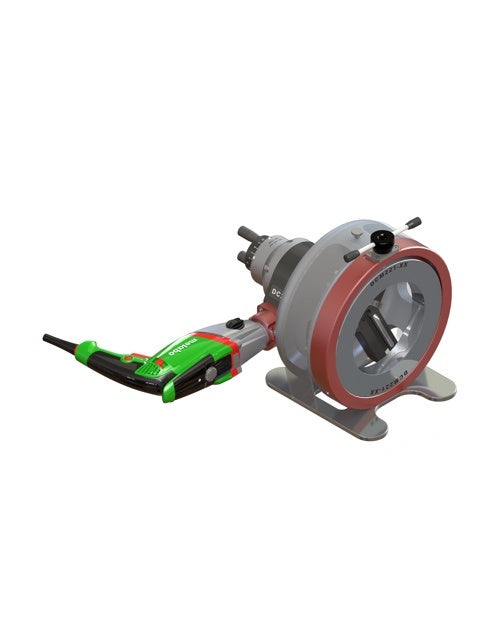

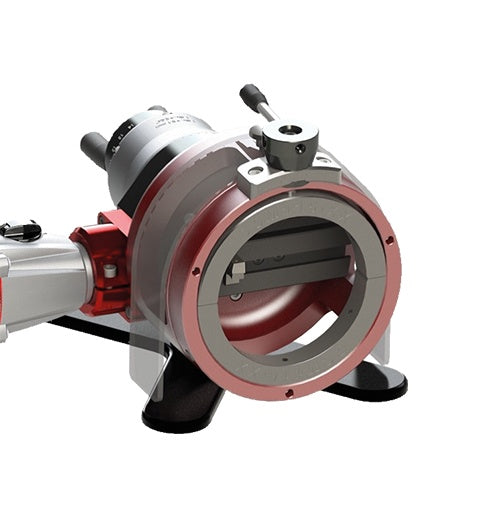

Axxair DC221-AMx Orbital Facing Diameter ø50 - ø220mm
Orbital facing machine : portable, lightweight and designed to be used on site as well as in the workshop.
Tube facing consists in bringing the end of a tube or an accessory into conformity and acts on 3 aspects: the perpendicularity of the tube face (maintenance) - the surface state of the face - a length adjustment.
Burfree facing, the chip unrolls towards the outside of the tube, perfect preparation for thin tubes before orbital welding.
Technical Data
Burr-free tube squaring and edge breaking machine used after a band saw cut or on electropolished tubes
Thickness < 0,12 inches (3 mm) according to material
Ideal tool to face a band saw cut before automatic welding
Accurate manual advance: 4/1000 (0,1 mm) step graduation
Sliding adjustment of tool holder offers easy diameter change and optimal tip wearing
30° and 45° outside edge breaking possible with optional tool holder
Squaring and edge breaking in one operation
Possibility to use three tools simultaneously
Minimal straight length of the tube: 1,54 inches (39 mm)
Delivered in high quality protection case
Light and compact: 46 lbs. (21 kg)
Motor 1100W with large speed range (2 gears)
Screw and wheel drive to optimize the speed range and eliminate vibrations
