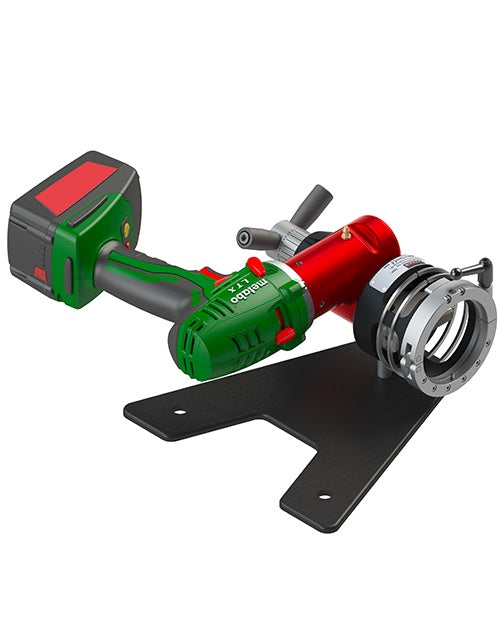

Axxair DC65-MA Orbital Facing Diameter ø3 - ø63.5mm
Orbital facing machine : portable, lightweight and designed to be used on site as well as in the workshop.
Tube facing consists in bringing the end of a tube or an accessory into conformity and acts on 3 aspects: the perpendicularity of the tube face (maintenance) - the surface state of the face - a length adjustment.
Burfree facing, the chip unrolls towards the outside of the tube, perfect preparation for thin tubes before orbital welding.
Tube facing is used on thin tubes with a thickness of less than 3 mm. It consists in bringing into conformity the end of a tube or an accessory. This conformity acts on three aspects: the perpendicularity of the face of the tube – the surface state of the face – potentially a length adjustment. After the facing process, the face will be perpendicular to the axis of the tube, without burrs, with a low RA and the desired length. Facing machines are used when the cutting process is not sufficiently precise for the application or when the cutting process generates burrs.
Tube with small diameters <25.4 mm are particularly concerned by the facing process. They are often cut with tube cutters or abrasive cutting machines. Generally speaking, tube must be faced before welding in order to obtain quality welds.
It is forbidden to scratch the polished surface inside the tubes: the cuts are therefore only done with a cutting wheel. This process does not generate chips but only dust. The result of this cut is not exploitable without a facing operation which unrolls the chip towards the outside of the tube.
Flexibility, Productivity-Our facing machines operate on battery or corded for more flexibility TIALN blades, reversible with two cutting edges guarantee optimal lifetime of consumables.
Quality-Facing creates a clean and bur-free surface without tube deformation: sharpness and accuracy guaranteed. Thin tubes are therefore ready for welding.
Technical Data
- Burr-free tube squaring machine
- New brushless motor 18V
- 220-240 V ~50/60Hz or 100-120 V ~60Hz
- Accurate manual advance, gratuated vernier scale
- Light and compact (5.5 kg)
- Come with two 18V Li-Power, 5.2 Ah batteries and a fast battery charger
- 2 mechanical speeds + electric speed variator
- Clamping shells : stainless steel jaws with spring
