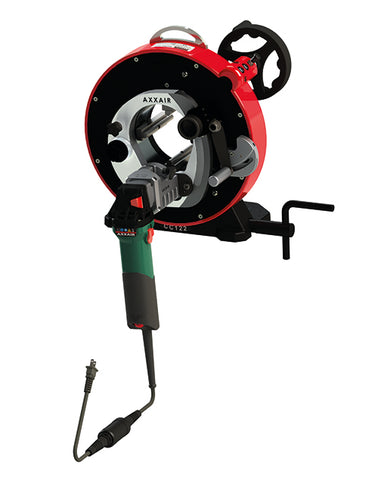

Axxair GA122 Orbital Beveling Diameter ø15 - ø119mm
Efficient and quick operations
Pipe beveling is the process of forming an angle on the edge at the end of a pipe or tube. The most standard bevel angle for welding is 37.5 degrees, but there are other angles and forms such as the J-Bevels that can be produced with automatic pipe bevelling machines.
Especially important in industries which require stainless steel pipes, the automatic pipe bevelling machines are the best way to prepare the pipes for the orbital welding machines.
Orbital bevelling machine : portable machine, easy to move and can be used both on site or in a workshop, simple and quick adjustment of the height of the bevel.
Perfect preparation for thick tubes before welding with filler wire, evolutive machine : can be transformed into an orbital bevelling and welding machine.
Technical Data
- Basic jaws Ø1″ to Ø4,5″ (Ø29 to Ø119 mm)
- Included stainless steel auxiliary jaws Ø0.25″ to Ø4,25″ (Ø15 to Ø99 mm)
- V-bevel or J-bevel without lubricant
- Supplied with plastic protection and profile guide
- Technology: screw carbide inserts: 10 x faster than HSS tools. Superior service life- Max 8 mm according to spinner*
- Patented System- Scalability: may be transformed into a cutting and orbital welding machine
- Weight: 42 kg / 92 lbs (easy handling)
