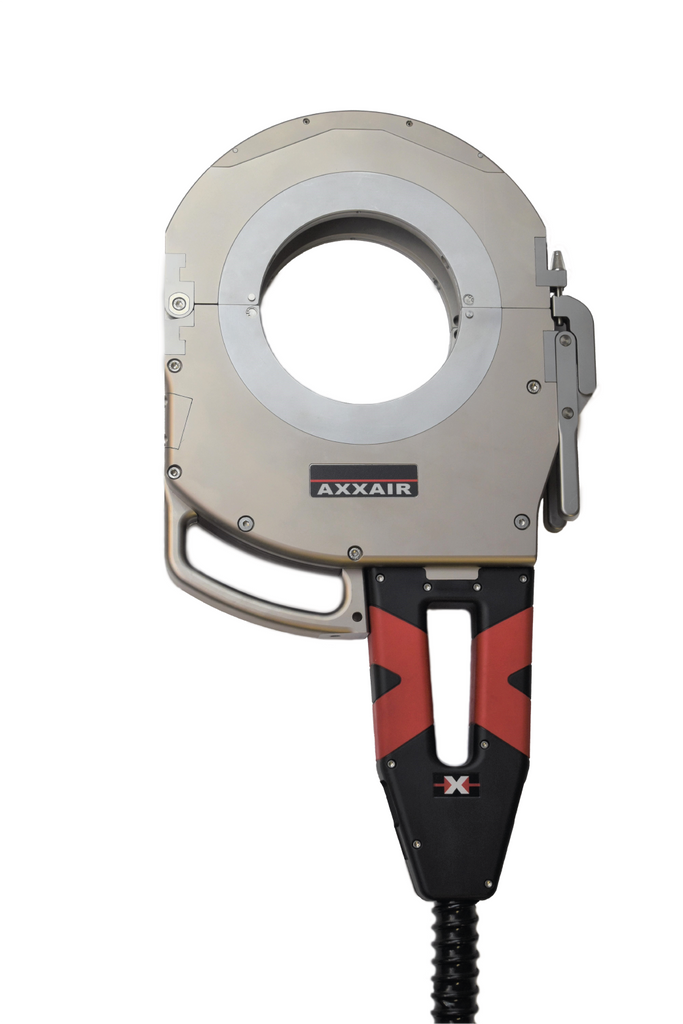

Axxair SATFX-170 Orbital Welding Closed Head Diameter ø38 - ø170mm
New range of orbital closed welding heads to meet the most demanding welding requirements in the most confined spaces.
Grease-free operation: compatible with clean room standards.
Perfect gas protection in the welding head thanks to the closed chamber: welding with very limited coloration.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes. Software integrated into the SAXX power sources range.
High-quality and repeatable welds in a minimum space.
2 pivoting windows with welding glass (grade 10), 2 ergonomic handle which facilitate the handling and the positioning of the machines, Integrated electrode offset adjustment & Adjustable force clamping system to ensure a consistent clamping of the machine.
Technical Data
- Liquid cooling of the machine

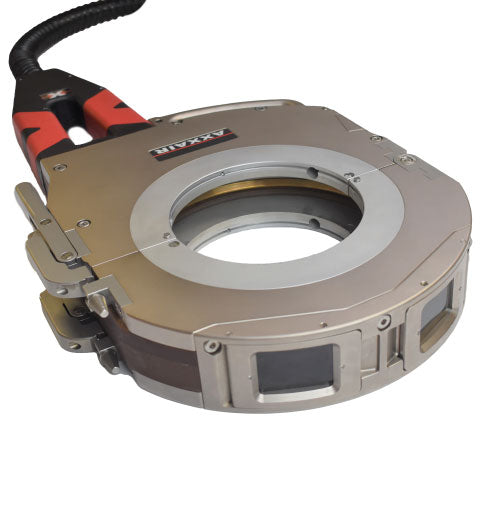

- 2 pivoting windows with welding glass (grade 10)
- Standard calmping jaws in Aluminum

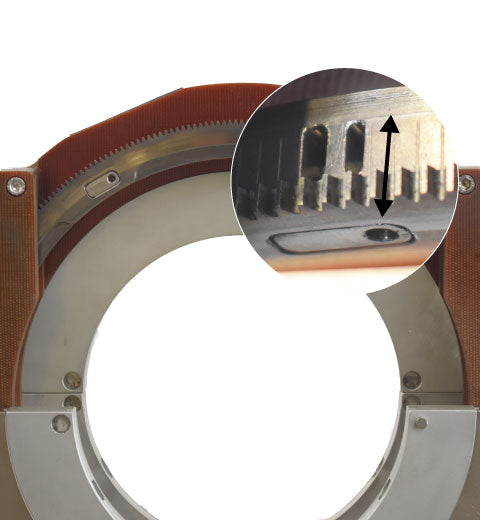

- Integrated electrode offset adjustment

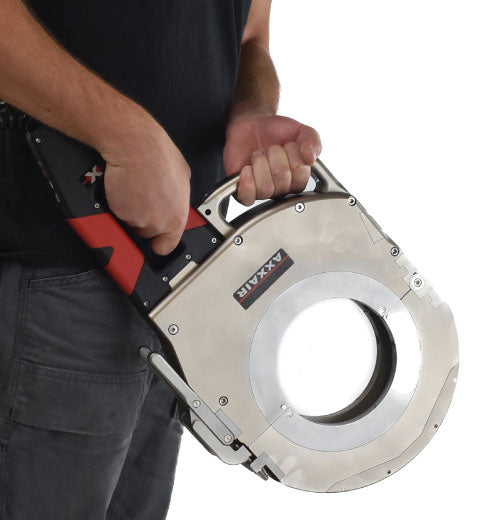

- 2 ergonomic handles which facilitate the handling and the positioning of the machine on the assembly to be welded

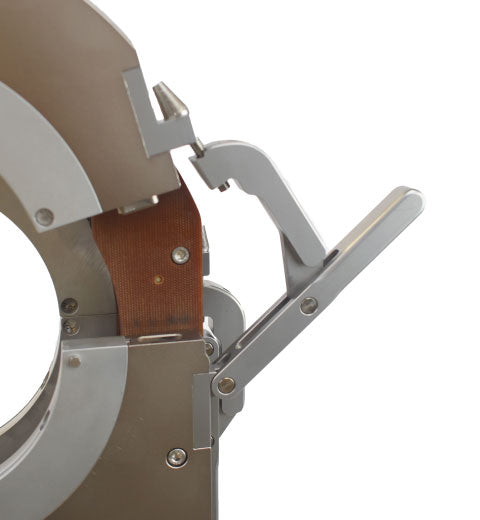

- Adjustable force clamping system to ensure a consistent clamping of the machine
- Illuminated logo and stainless steel remote control
- Specific electrodes by diameter
- Delivered in a shockproof case, waterproof and dustproof, with a cable support and a shutter handling tool
- 8 meters cable
- Weight: 14.5 Kg
