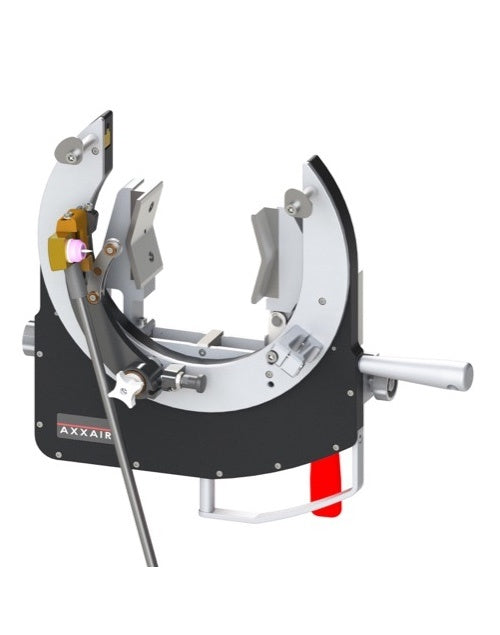

Axxair SATO-170E4x Orbital Welding Open Head Diameter ø25 - ø170mm
Open welding head with symmetrical clamping system, offering a very wide range of use to make very high quality welds in a minimum space.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range, quality and repeatability of welds to ensure high productivity.
Straight motor or angular motor, Mechanic or pebble contour control, Adjustable torch angle for flanges weld or short T & Driven by SAXX power source.
Technical Data
- Liquid cooling of the machine
- 2 pivoting windows with welding glass (grade 10)
- Standard calmping jaws in Aluminum
- Integrated electrode offset adjustment
- 2 ergonomic handles which facilitate the handling and the positioning of the machine on the assembly to be welded
- Adjustable force clamping system to ensure a consistent clamping of the machine
- Illuminated logo and stainless steel remote control
- Specific electrodes by diameter
- Delivered in a shockproof case, waterproof and dustproof, with a cable support and a shutter handling tool
- 8 meters cable
- Weight: 14.5 Kg
