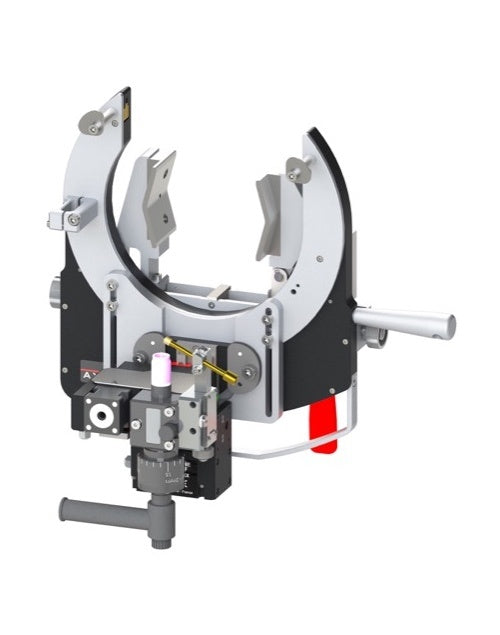

Axxair SATO-170E5x Orbital Welding Open Head Diameter ø25 - ø170mm
Open orbital welding head with symmetrical clamping system and electronic regulation of arc voltage (AVC) and oscillation (OSC).
Head offering a wide range of use for making high quality multi-pass welds.
Intuitive interface and automatic parameter calculation mode integrated into the SAXX power sources range.
Quality and repeatability of welds to ensure high productivity, Oscillation range: 20 mm, AVC range: 20 mm, Max speed: 15 mm/s, Straight output motor, symmetrical clamping, Angled output motor, symmetrical clamping & Driven by SAXX power sources 210 and 300.
Technical Data
- WATER cooled head with AVC/OSC system
- Quick symmetrical tightening by lever
- Motorization with encoder: Allows starting from any angular position of the electrode
- Wide diameter range
- Oscillation range: 20 mm
- AVC range: 20 mm
- Max speed: 15 mm/s
- Choice of two different models (motor positions)
- Weight: 12.7Kg
