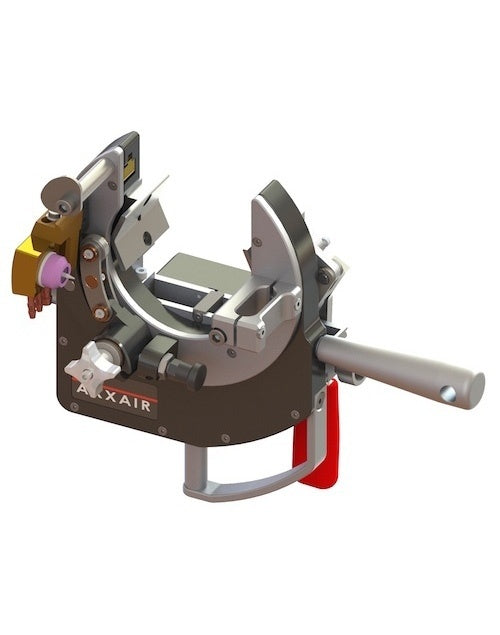

Axxair SATO-80E4x Orbital Welding Open Head Diameter ø19 - ø80mm
Open welding head with symmetrical clamping system, offering a very wide range of use to make very high quality welds in a minimum space.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range, quality and repeatability of welds to ensure high productivity.
Straight motor or angular motor, Mechanic or pebble contour control, Adjustable torch angle for flanges weld or short T & Driven by SAXX power source.
Technical Data
- Water cooled welding torch
- Mechanical Roll tracking: Insures electrode distance without marking the tube
- Symmetrical quick clamping through lever
- Motor with encoder: Allows for tungsten electrode start-up at all angles and a wide range of diameters
- Axial adjustment of the electrode
- Low rotating free space around the tube: 90 mm radius from center of tube
- Weight: 4.2 Kg/7 lbs (without cables)
- Very compact design
- 2 motor positions available
