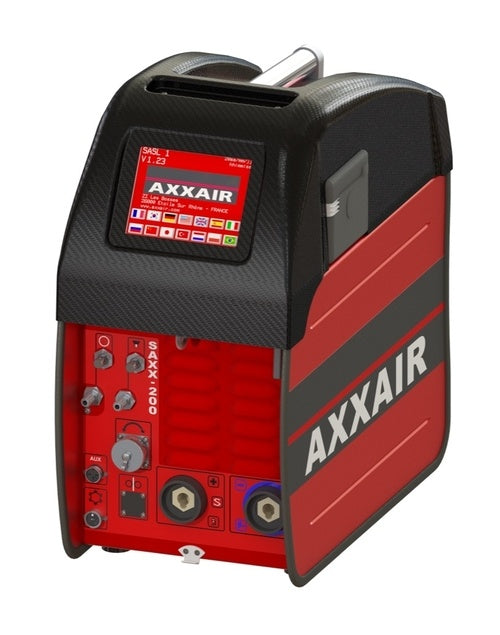

Axxair SAXX-200 Orbital Tig Welding-Power Source
TIG orbital power supplies has been designed to be user-friendly and intuitive to easily generate programs. Intuitive touch screen interface and automatic parameter calculation mode integrated into the generator. Program classification system by welding configuration.
2 separate gas lines, free choice of inerting gas flow management. Compatible with some closed heads of the following brands: AMI, Polysoude, ESAB, Orbitec et Orbitalum.
Accessories in options;-The options must be factory fitted. (Exception: Scool-700 cooler)
2nd Gas Line-This second gas line allows control from the generator of your internal inerting and / or dual gas management of the welding torch.- Gas savings- Welding process safety.
WIFI-This option includes a built-in Wifi antenna in the station. The operating distance is 20-30 m depending on the environment. We have authorized remote control via a smartphone or tablet. In fact, one application provides access to all functions, including programming.

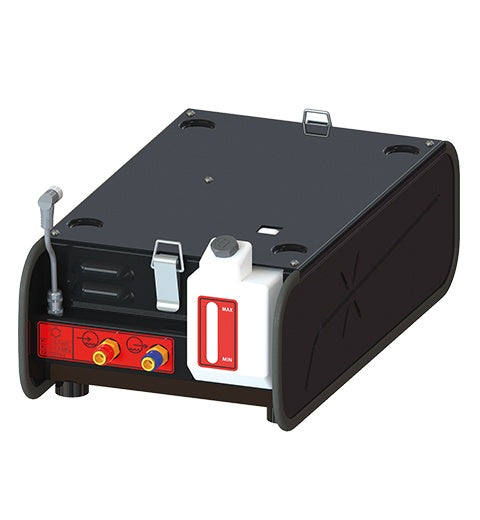

Water Cooler-Removable cooler without tools with a cooling capacity of 700W with a flow safety sensor. It is essential to use in all water cooled machines.- Increasing the duty cycle.
Wire Feed-This option includes the axis board and the connectors. It must be completed by the dispenser (see accessories). The Axxair welding generator makes it possible to use the step mode and to synchronize the wire feed with the current pulse.
Technical Data
Single phase network with earth
Supply voltage: 110 to 230 V +/-15%
Input current consumed 23A at 230V and 32A at 110V
Frequency: 50/60Hz
Second gas line as an option & - Wifi antenna as an option: remote control of the screen on smartphone or tablet via application
Wire feed as an option
200 programs in 20 sectors maximum / USB stick
