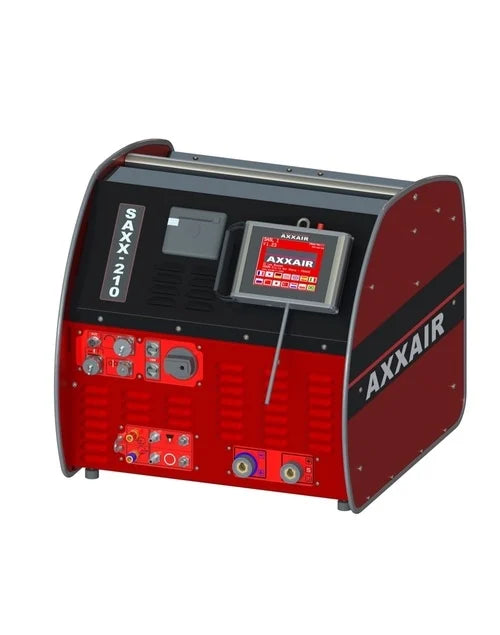

Axxair SAXX-210 Orbital Tig Welding-Power Source
TIG orbital power supplies has been designed to be user-friendly and intuitive to easily generate programs. Intuitive touch screen interface and automatic parameter calculation mode integrated into the generator. Program classification system by welding configuration.
2 separate gas lines, free choice of inerting gas flow management. Compatible with some closed heads of the following brands: AMI, Polysoude, ESAB, Orbitec et Orbitalum.
Technical Data
- Single phase network with earth
- Supply voltage: 110 to 230 V +/-15%
- Input current consumed 25A at 230V and 32A at 110V
- Frequency: 50 / 60Hz
- Wifi antenna as an option: Remote control of the screen on smartphone or tablet via application
- 200 programs in 20 sectors maximum/USB stick
Water cooled (can be used with AVC and Oscillation)
Interface 5.7 colour touch screen + WiFI 13 languages, possibility of remote control by smartphone or tablet Integrated printer Printing program and actual parameters Axis for added metal Possibility of using Step mode.
Wi-fi: (Option) Remote control of the screen on smartphone or tablet via an application Range: 20 to 30 m
Remove control display 4 m long cable.
USB port on front panel 200 programs per USB key, several keys can be used- Software: Remote update possible.
Data acquisition Records the last 999 welds on the USB key Integrated WeldReport, data’s formatting and presenting of the instructions in the form of DMOS. - Sending and retrieving data through remote access to the SAXX’s USB key.
Axis for added metal Possibility of using Step mode

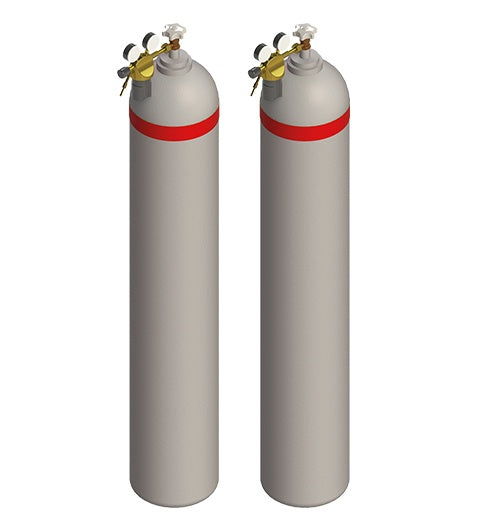

Fully-assured gas management 2 separate gas lines, free choice of inerting gas flow management ORBITAL WELDING Gas flow control and f low alarms Display of the actual flow rate right on the screen.
All options must be mounted at AXXAIR
