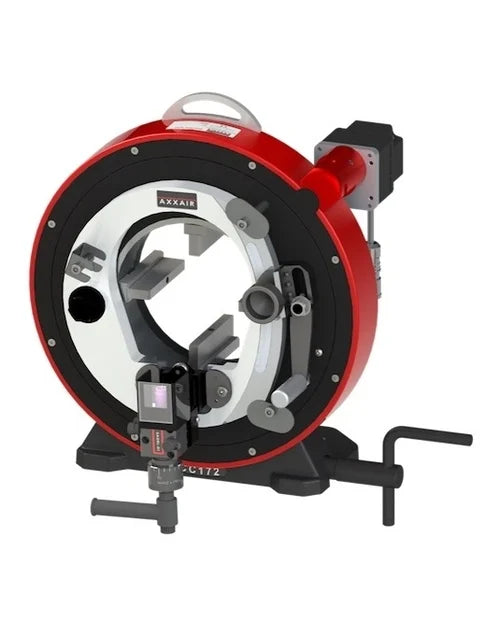

Axxair SX172 Orbital Prefab Welding Diameter ø16 - ø173mm
These machines can create controlled, reproducible and documented welds. This type of weld can undergo the most stringent testing: x-ray inspection.
Machines for orbital prefab welding : robust and easy to use.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine.
Axial adjustment for precise positioning, Constant distance electrode to tube, Micrometic adjustment for precise positioning, Suitable for SAXX power source.
Technical Data
- Basic stainless steel jaws Ø2.75″ to 6.625″ (74 to 173 mm)
- Included stainless steel auxiliary jaws Ø 0.625″ to 4.65″ (16 to 116 mm)
- Electric rotation autoline 120 V – 230V
- Wide diameter range
- Air-cooled: Max. current 100 A at 100%
- Water-cooled: Max. current 200 A at 100%
- Scalability: May be transformed into a cutting and orbital bevelling machine
- Weight: 52 kg/115 lbs
