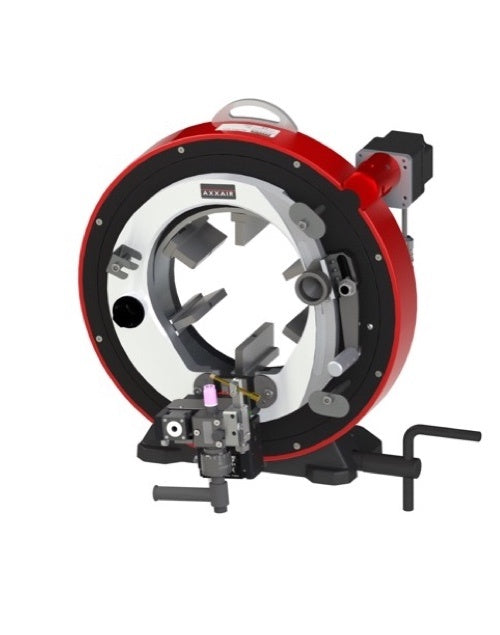

Axxair SX222-NAOF Orbital Prefab Welding Diameter ø55 - ø228mm
Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine. These machines can create controlled, reproducible and documented welds. This type of weld can undergo the most stringent testing: x-ray inspection.

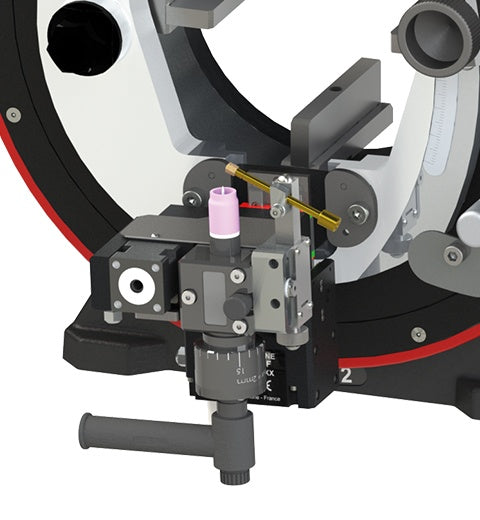

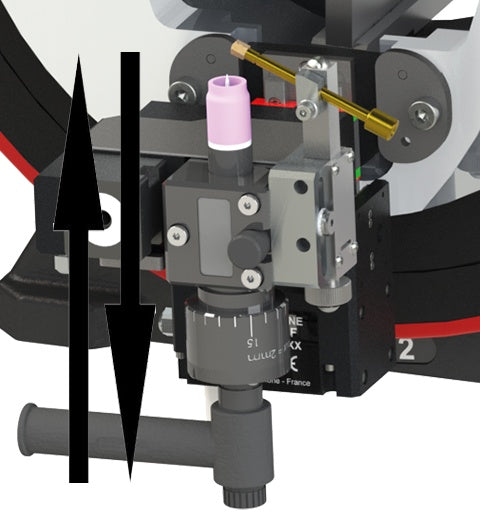

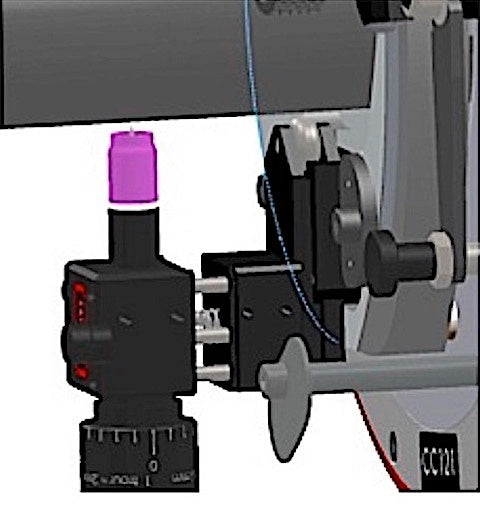

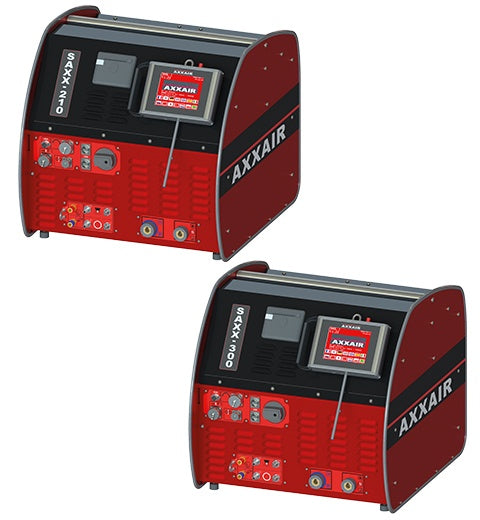

Motorised axial sweep (OSC), Motorised setting and control of the distance tube-electrode (AVC), AVC/OSC system: allows to weld tubes with up to 12.7 mm wall thickness, Driven by SAXX power sources 210 and 300.
Technical Data
- Basic stainless steel jaws Ø 4.5″ to 8.625″ (128 to 228 mm)
- Included stainless steel auxiliary jaws Ø 2″ to 6.65″ (55 to 155 mm)
- Electric rotation autoline 120 V – 230V
- Wide diameter range
- Water-cooled: Max. current 200 A at 100%
- Scalability: May be transformed into a cutting and orbital welding machine
- Weight: 60 kg/132 lbs
