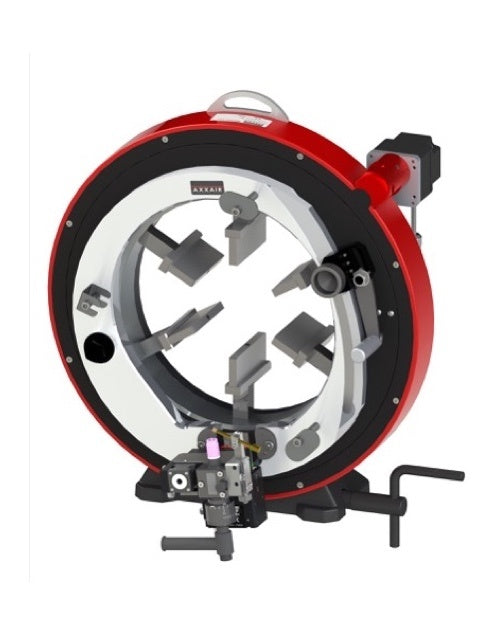

Axxair SX322-NAOF Orbital Prefab Welding Diameter ø141 - ø328mm water cooled
Motorised axial sweep (OSC), Motorised setting and control of the distance tube-electrode (AVC), AVC/OSC system: allows to weld tubes with up to 12.7 mm wall thickness, Driven by SAXX power sources 210 and 300.
Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine.
Technical Data
- Basic stainless steel jaws Ø 8.5″ to 12.75″ (230 to 328 mm)
- Included stainless steel auxiliary jaws Ø 5.5″ to 10″ (141 to 239 mm)
- Electric rotation autoline 120 V – 230V
- Wide diameter range
- Water-cooled: Max. current 200 A at 100%
- Scalability: May be transformed into a cutting and orbital welding machine
- Weight: 73 kg/160 lbs
