Axxair X-500 Orbital Microfit Welding Diameter ø3 - ø12.7mm (Diameter range: 0.118" to 1/2")

£ POA

Please call for best price.

Axxair X-500 Orbital Microfit Welding Diameter ø3 - ø12.7mm (Diameter range: 0.118" to 1/2")

NEW !

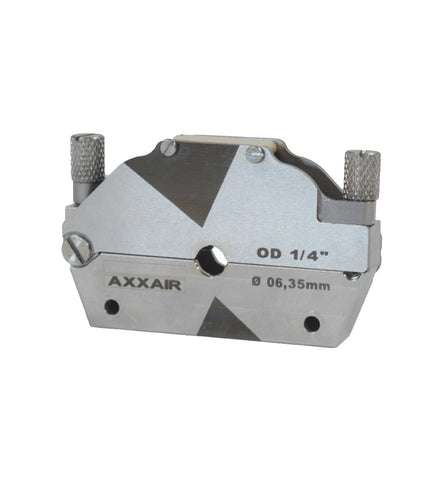

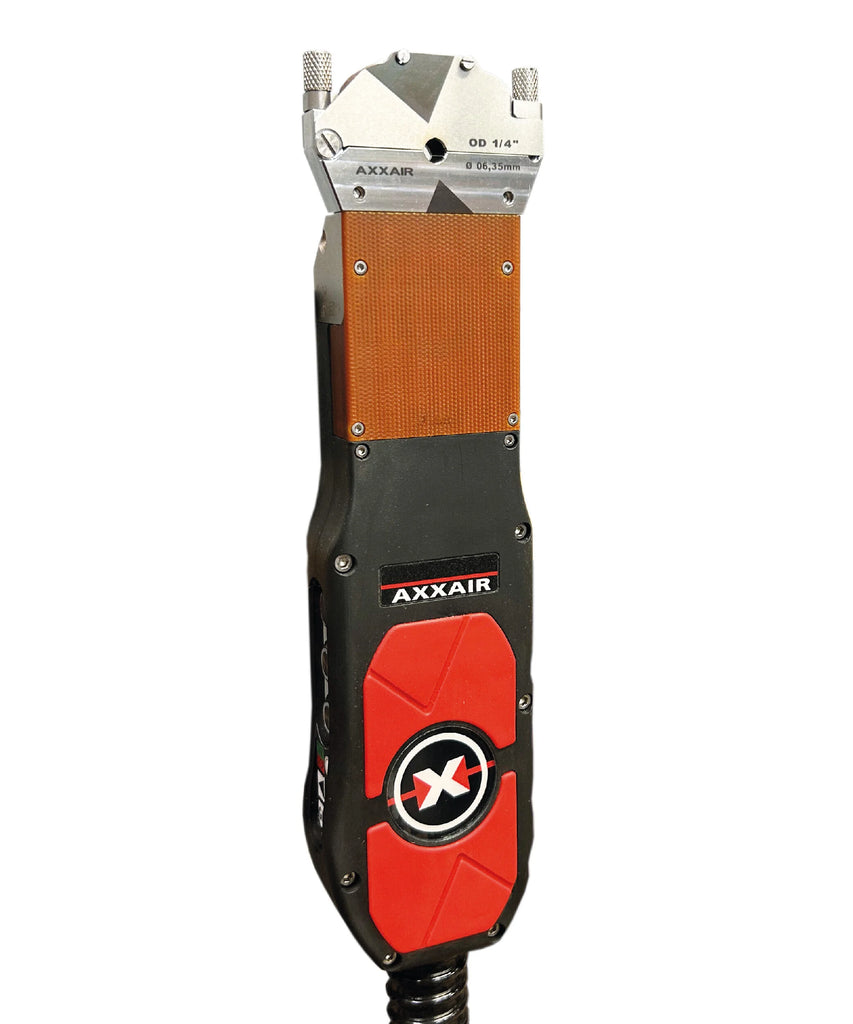

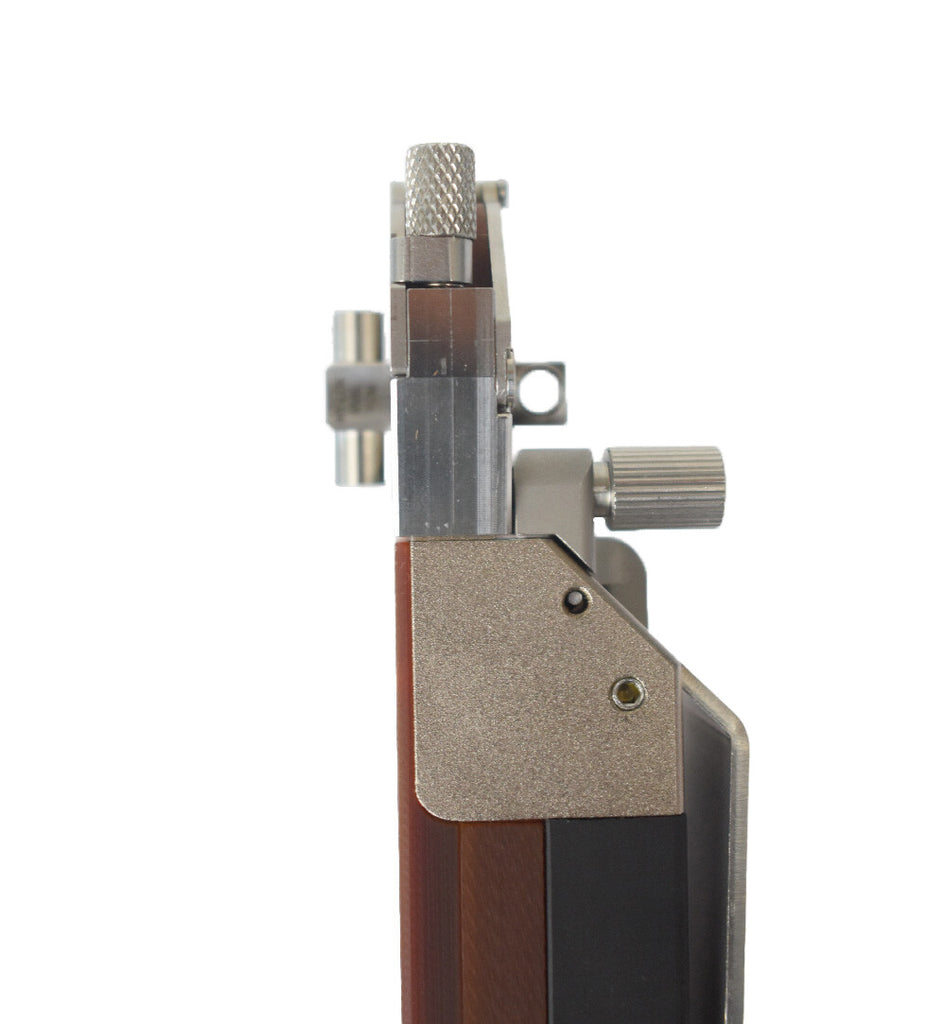

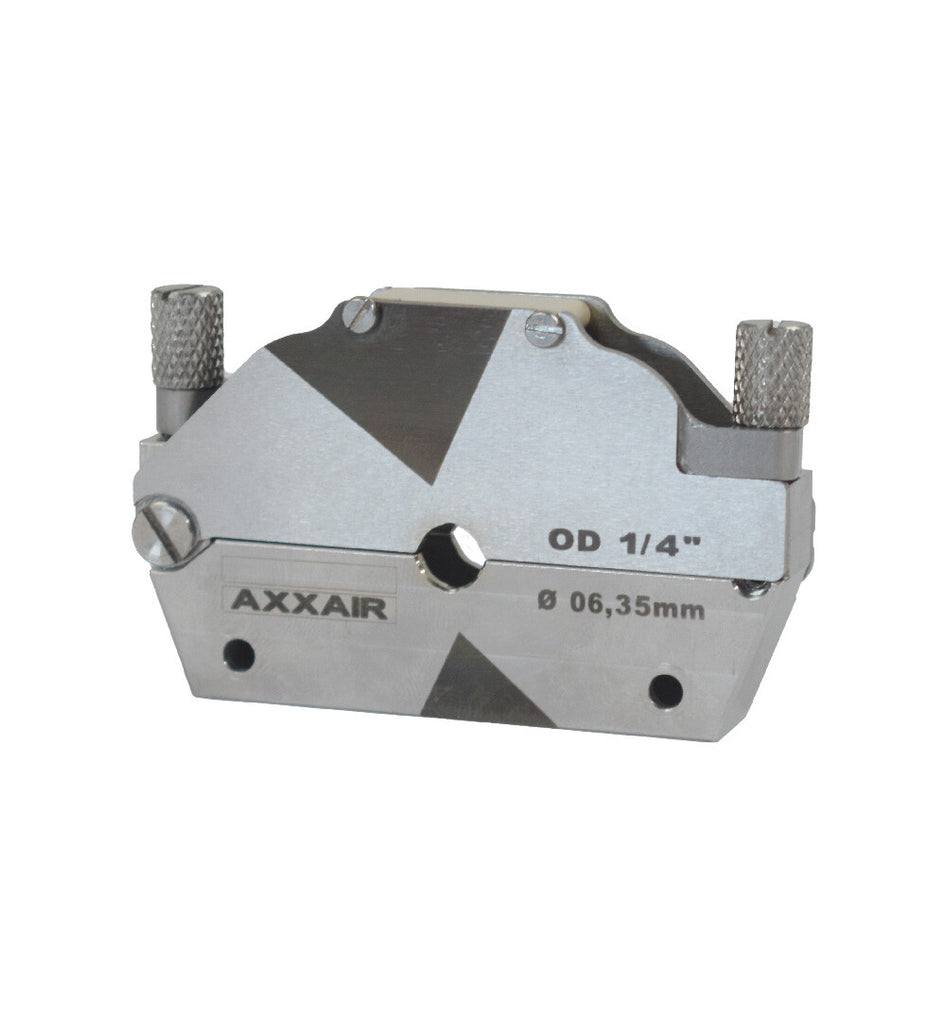

Microfit closed head with diameter specific clamping cassettes for orbital TIG welding, made to weld microfit-to-microfit.

Only requires ½” (12,7 mm) clearance to clamp, grease-free operation: compatible with clean room standards. Optimized inert gas diffusion: welds with very limited coloration, air or water cooled. Controlled by AXXAIR’s power supplies or competitors’ systems.

Technical Data

  • OD Min-Max: 0.118’’ to 1’’ / 3mm to 12.7 mm
  • Compact Design: Ideal for welding microfittings with a straight length as short as 6.35 mm
  • Versatile Control: Compatible with AXXAIR’s power supplies and competitors’ systems
  • Integrated Tool: Simplifies disassembly and electrode adjustment/replacement
  • Quick Setup: Features a quick-fit cassette mounting system for fast cassette installation

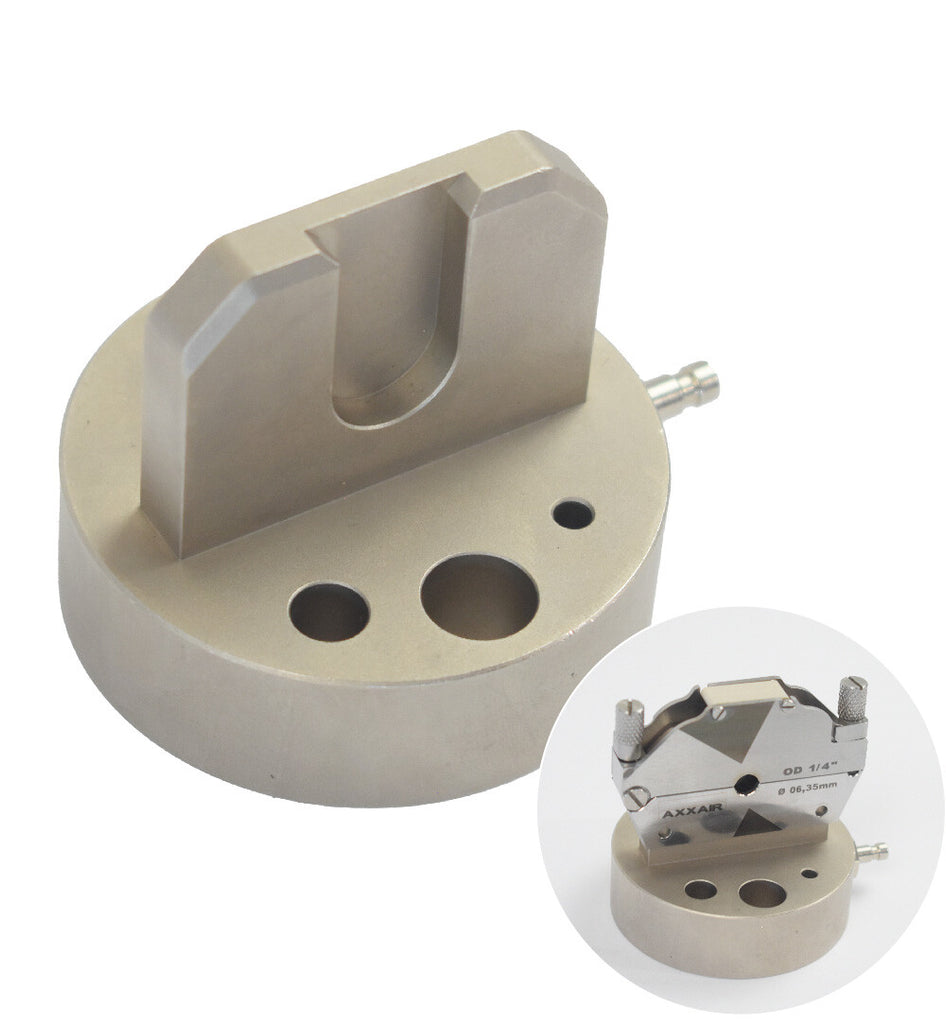

  • Cassette Holder: Positions the first part to be welded and allows cooling of the cassette
  • Remote Control: Integrated for start/stop, gas, and electrode rotation
  • Welding Indicator: Illuminated logo while welding
  • Convenient Features: Includes a belt hook for easy transport
  • Weight: 5.6 kg (12.3 lbs) with an 8-meter (26 ft) cable
  • Shockproof Case: Comes delivered in a protective case

Datasheet
