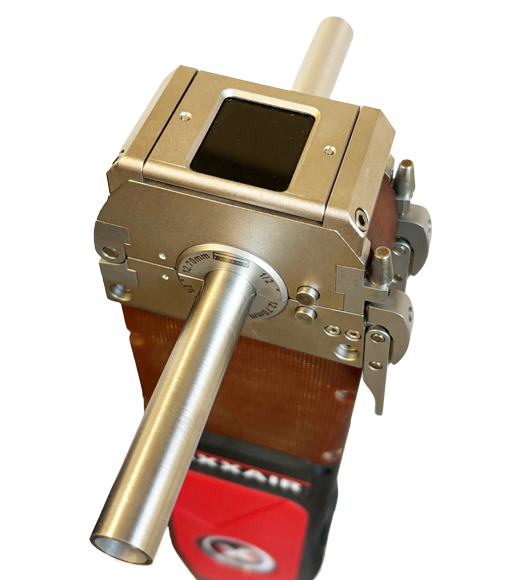

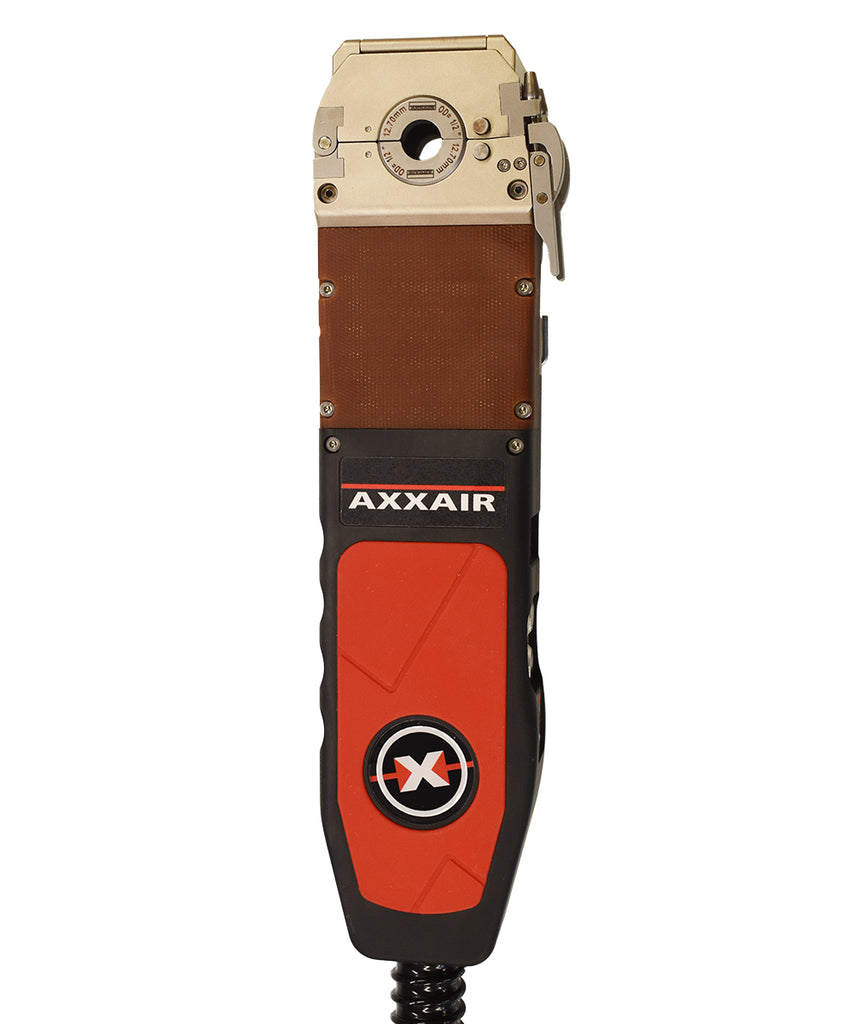

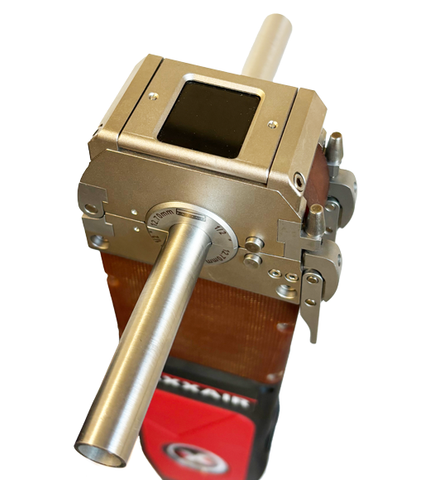

Axxair X-750 Orbital Microfit Welding Diameter ø3 - ø19.05mm (Diameter range: 0.118" to 3/4")
Microfit closed head with quick connect stainless steel collets for orbital TIG welding, made for high duty cycle orbital welding.
Grease-free operation: compatible with clean room standards
Optimized inert gas diffusion: welds with very limited coloration, water cooled, controlled by AXXAIR’s power supplies or competitors’ systems.
High level of performance Water-cooled machine, Quick connect stainless steel collets, Offset electrode kit to weld tube-to-microfit, Driven by SAXX power sources or other systems, water cooled.
Technical Data
- OD Min-Max: 0.118’’ to 3/4’’ / 3mm to 19.05 mm
- High level of performance: The head is water cooled
- Versatile Control: Compatible with AXXAIR’s power supplies and competitors’ systems

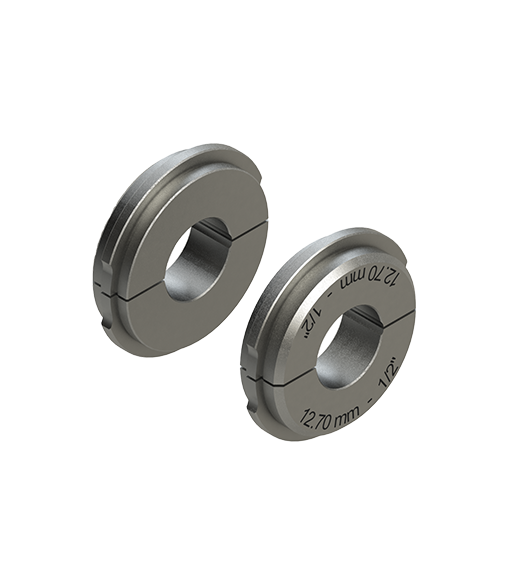

- Quick connect of stainless steel collets without set screws
- Integrated Tool: Simplifies disassembly and electrode adjustment/replacement
- Pivoting window: With shade 9 welding glass
- Adjustable force clamping system: Allows precise adjustment of the force of the collets on the tube to be welded and helps opening after welding
- Remote Control: Integrated for start/stop, gas, and electrode rotation
- Welding Indicator: Illuminated logo while welding

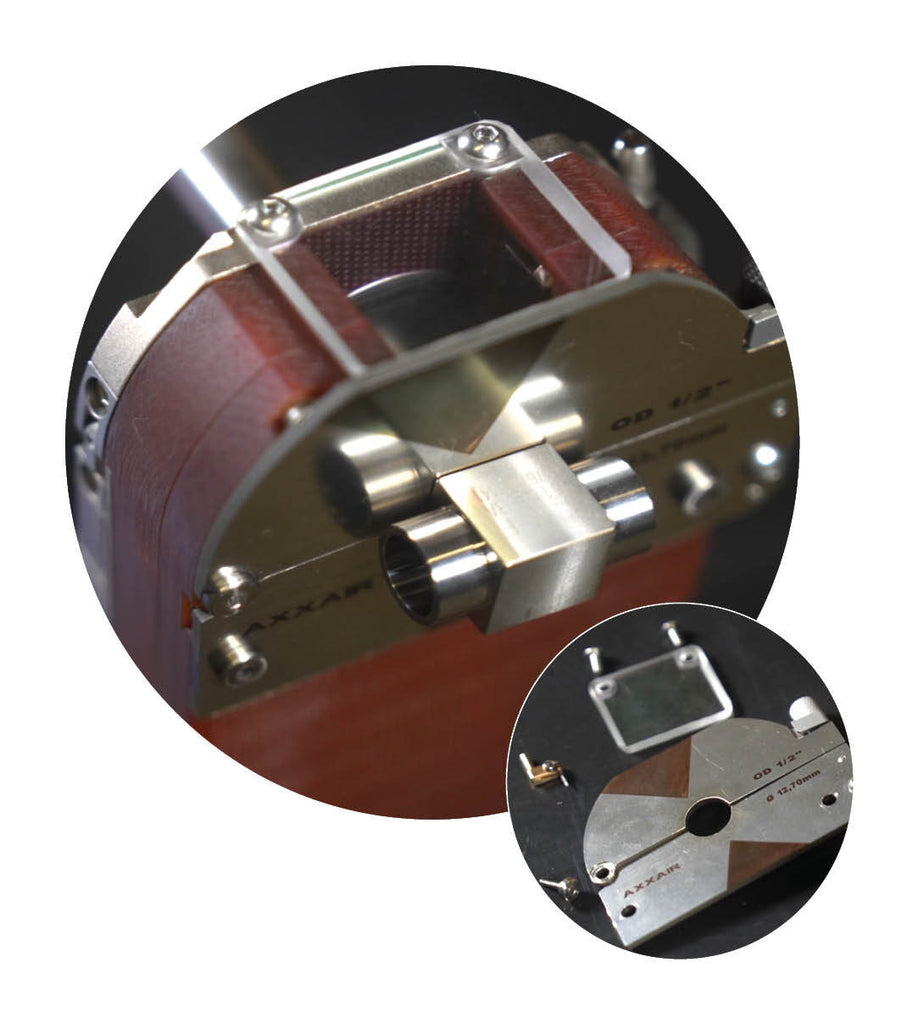

- Accessory: Offset electrode kit made to weld tube-to-microfit
- Weight: 5.8 kg (12.8 lbs) with an 8-meter (26 ft) cable
- Shockproof Case: Comes delivered in a protective case
