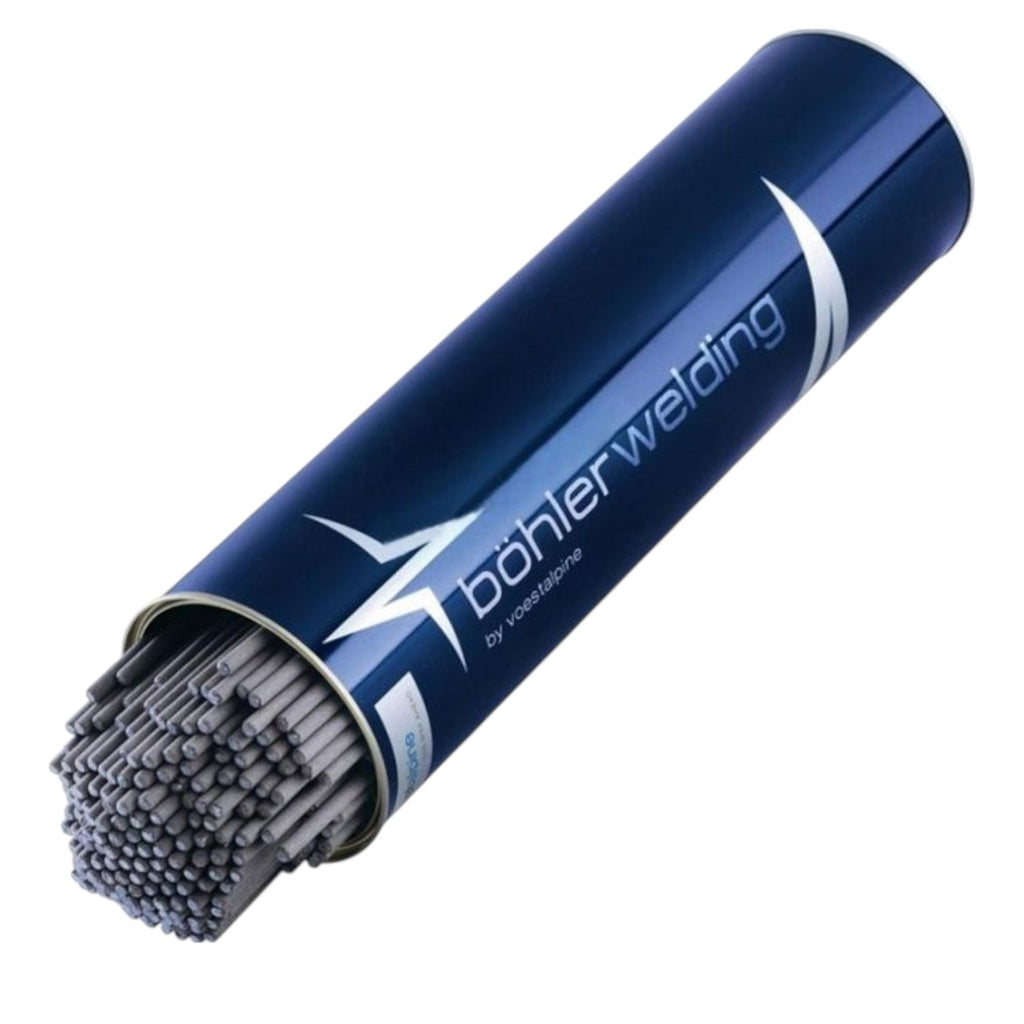

Bohler Avesta 316L/SKR-4D (Austenitic Steels) Stainless Steel Stick Electrodes
Böhler Avesta 316L is a rutile-coated, core wire alloy electrode of type E 19 12 3 L R / E316L-17. It has been specifically developed for welding thin-walled pipes and sheets, particularly in the chemical process and paper industries. It is extremely suitable for welding in challenging positions and field conditions; in these situations, it offers significantly higher efficiency compared to manual TIG welding. Böhler Avesta 316L is recommended for multi-pass welding of 1.4404 and 1.4436 / 316L type stainless steels in root pass and general fabrication applications.
The weld metal exhibits good resistance to general corrosion, pitting corrosion, and inter-granular corrosion in chloride-containing environments (e.g., in dilute hot acid applications). The scaling (oxidation) temperature in air is approximately 850°C . The maximum operating temperature is 400°C . Furthermore, high corrosion resistance stands out as one of the most important advantages of Böhler Avesta 316L.
Features
- Application: Best used for welding thin-walled pipelines and sheet metal.
- Coating: Rutile-coated high-efficiency design.
- Performance: Offers high productivity for restrained positions and difficult site conditions compared to manual TIG welding.
- Compatibility: Ideal for 316L (1.4435) and similar acid-resistant austenitic stainless steels
Technical Data
- AWS A5.4 / SFA-5.4: E316L-17
- EN ISO 3581-A: E 19 12 3 L R
- Polarity: AC or DC+ (DC- can be preferred to bridge large root gaps).
- Interpass Temperature: Maximum 150°C.
- Heat Input: Maximum 2.0 kJ/mm.
- Scaling Temperature: Approximately 850°C in air.
- Corrosion Resistance: High resistance to pitting and inter-crystalline corrosion in severe environments like dilute hot acids
