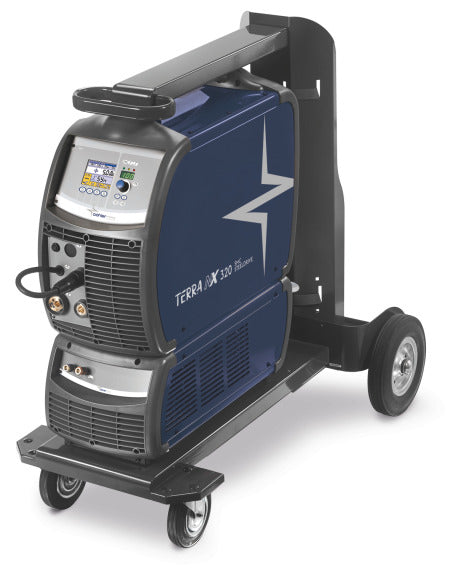

Bohler TERRA NX 320 SMC MIG/MAG - MMA - TIG DC Lift Welder 400V
The Bohler Terra NX 320 SMC Inverter MIG welder is a compact and robust inverter welder which is ideal for a wide variety of applications, including those in confined spaces. This welder can withstand heavy duty work and environment conditions whilst featuring a digital display and control panel, designed for easy use. Available in air cooled or water cooled. Package includes 320A inverter welder, GT 500 trolley, 4mtr work cable, air cooled or water cooled 4mtr torch and a water cooler unit for the water cooled option.
Features
- Inverter technology power source for improved arc dynamics and complete control of all welding phases.
- High power at 100% of duty cycle
- Heavy duty and environmental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Software based controls can be upgraded as new features become available
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Built-in wire feeder unit 4 rolls drive
- Wire drive unit fully designed by voestalpine Böhler Welding
- Ø 200/300 mm wire spool compatible
- Full digital and user-friendly LCD graphic display control panel (TERRA NX 320/400 SMC SteelDrive)
- Full digital and user-friendly control panel (TERRA NX 320/400 SMC Classic/Smart)
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- Back-up/Restore automatic
- User-defined welding program storage capability (240 free memory locations) (TERRA NX 320/400 SMC SteelDrive)
- Totally programmable user interface (TERRA NX 320/400 SMC SteelDrive)
- Lock-unlock function key protected by password
- Programmable welding operations safety limits (TERRA NX 320/400 SMC SteelDrive)
- Control of several welding units over Ethernet
- Totally welding process remote programming and management by PC network
- Ideal for stick welding with multiple types of popular electrodes (TERRA NX 320/400 SMC SteelDrive)
- Built-in adjustable arc control features (hot start, arc force, antisticking)
- Synergic setting for optimal stick welding with multiple types of electrodes
- Reduced electromagnetic interference with lift start TIG welding
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Crater filler operating mode (TERRA NX 320/400 SMC SteelDrive)
- Synergic operations from databank (18 pre-set programs) (TERRA NX 320/400 SMC Smart)
- Synergic operations from databank (52 pre-set programs) (TERRA NX 320/400 SMC SteelDrive)
- Synergic operations from databank (DEMO)
- Wire speed (0,5-22,0 m/min) (TERRA NX 320/400 SMC Classic/Smart)
- Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment (TERRA NX 320/400 SMC SteelDrive)
- Spot welding mode
- Intermittent welding mode
- Bilevel MIG/MAG
- Euro adaptor - U/D MIG/MAG torch compatible (TERRA NX 320/400 SMC SteelDrive)
- Push-pull torch device
- Remote control compatible
- WU cooling unit compatible
- Controlled cooling operations
Technical Data
| General | |
|---|---|
| Welding processs | MIG/MAG - MMA - TIG DC Lift |
| Master Software | MS TERRA NX SMC/MSE (SteelDrive) |
| Materials | Carbon steels - Stainless Steels - Aluminum |
| Dimensions | 690x290x510mm |
| Weight | 33 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400V±15% |
| Maximum input power | 14.8 kVA |
| Maximum input current | 21.4A |
| Efficiency | 89% |
| Slow blow line fuse | 20 A |
| Open circuit voltage | 61Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x2.5mm2 - 5 m |
| Welding | |
| Adjustment range | 3A-320A |
|
Duty cycle MIG/MAG - 40 °C |
45% - 320A 60% - 280A 100% - 240A |
|
Duty cycle
MIG/MAG - 25 °C
|
80% - 320A
100% - 280A
|
| Ø Wire diameter | 1.0 -1.2 mm (opz .0.6-1.6) |
| Ø Fluxcoredwire | 0.9 - 1.6 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 4 |
| Wire spool diameter | Ø 200/300mm |
| Remote Control compatible | yes |
| U/D MIG/MAG torch compatible | yes (SteelDrive) |
| PUSH PULL torch compatible | yes |
