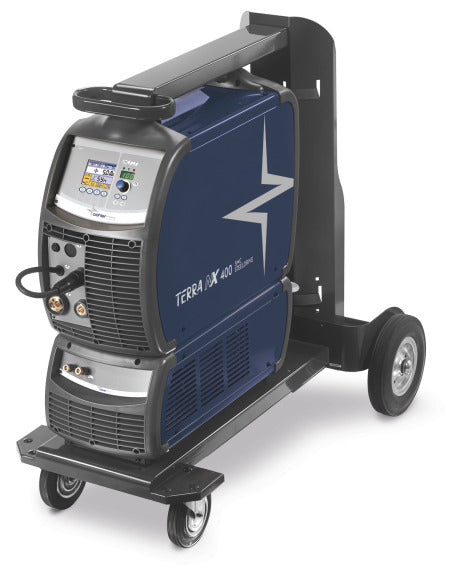

Bohler TERRA NX 400 SMC MIG/MAG - MMA - TIG DC Lift Welder 400V
The TERRA NX 400 SMC forms a complete series of three-phase power sources for conventional MIG/MAG welding. The TERRA NX SMC is the perfect welding power source for simple, reliable and modern wire fed welding.
Features
- Inverter technology power source for improved arc dynamics and complete control of all welding phases.
- High power at 100% of duty cycle
- Heavy duty and enviromental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Software based controls can be upgraded as new features become available
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Built-in wire feeder unit 4 rolls drive
- Wire drive unit fully designed by voestalpine Böhler Welding
- Ø 200/300 mm wire spool compatible
- Full digital and user-friendly LCD graphic display control panel (TERRA NX 320/400 SMC SteelDrive)
- Full digital and user-friendly control panel (TERRA NX 320/400 SMC Classic/Smart)
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- Back-up/Restore automatic
- User-defined welding program storage capability (240 free memory locations) (TERRA NX 320/400 SMC SteelDrive)
- Totally programmable user interface (TERRA NX 320/400 SMC SteelDrive)
- Lock-unlock function key protected by password
- Programmable welding operations safety limits (TERRA NX 320/400 SMC SteelDrive)
- Control of several welding units over Ethernet
- Totally welding process remote programming and management by PC network
- Ideal for stick welding with multiple types of popular electrodes (TERRA NX 320/400 SMC SteelDrive)
- Built-in adjustable arc control features (hot start, arc force, antisticking)
- Synergic setting for optimal stick welding with multiple types of electrodes
- Reduced electromagnetic interference with lift start TIG welding
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Crater filler operating mode (TERRA NX 320/400 SMC SteelDrive)
- Synergic operations from databank (18 pre-set programs) (TERRA NX 320/400 SMC Smart)
- Synergic operations from databank (52 pre-set programs) (TERRA NX 320/400 SMC SteelDrive)
- Synergic operations from databank (DEMO)
- Wire speed (0,5-22,0 m/min) (TERRA NX 320/400 SMC Classic/Smart)
- Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment (TERRA NX 320/400 SMC SteelDrive)
- Spot welding mode
- Intermittent welding mode
- Bilevel MIG/MAG
- Euro adaptor - U/D MIG/MAG torch compatible (TERRA NX 320/400 SMC SteelDrive)
- Push-pull torch device
- Remote control compatible
- WU cooling unit compatible
- Controlled cooling operations
Technical Data
| General | |
|---|---|
| Welding processs | MIG/MAG - MMA - TIG DC Lift |
| Master Software | MS TERRA NX SMC/MSE (SteelDrive) |
| Materials | Carbon steels - Stainless Steels - Aluminum |
| Dimensions | 690x290x510mm |
| Weight | 34 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400V±15% |
| Maximum input power | 20.9 kVA |
| Maximum input current | 30.1 A |
| Efficiency | 89% |
| Slow blow line fuse | 25 A |
| Open circuit voltage | 61Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x4mm2 - 5 m |
| Welding | |
| Adjustment range | 3A-400A |
|
Duty cycle MIG/MAG - 40 °C |
40% - 400A 60% - 360A 100% - 330A |
|
Duty cycle
MIG/MAG - 25 °C
|
100% - 400A
|
| Ø Wire diameter | 1.0 -1.2 mm (opz .0.6-1.6) |
| Ø Fluxcoredwire | 0.9 - 1.6 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 4 |
| Wire spool diameter | Ø 200/300mm |
| Remote Control compatible | yes |
| U/D MIG/MAG torch compatible | yes (SteelDrive) |
| PUSH PULL torch compatible | yes |
