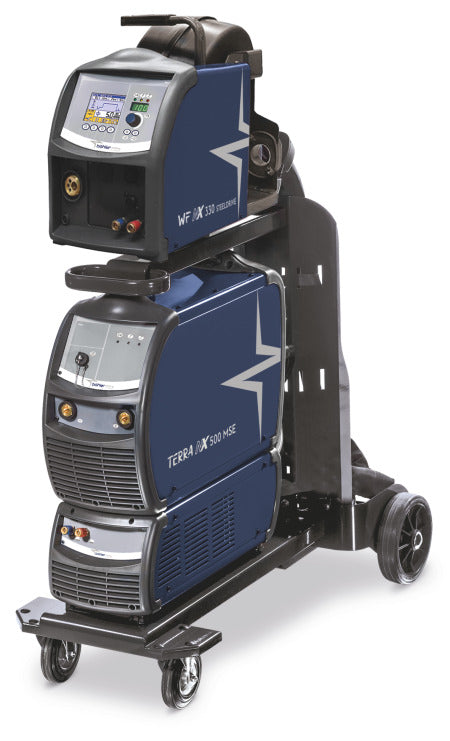

Bohler TERRA NX 500 MSE MIG/MAG - MMA - TIG DC Lift Welder 400V
The TERRA NX 500 MSE is the perfect welding power source for simple, reliable and modern welding. It is particularly suited to the continuous processes and high welding volumes typical of light and heavy metal fabrication, shipbuilding, plant construction and mechanical workshops in general.
Features
- Inverter technology power source for improved arc dynamics and complete control of all welding phases.
- High power at 100% of duty cycle
- Heavy duty and enviromental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Software based controls can be upgraded as new features become available
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Wire feeder unit (2/4 rolls drive)
- Wire drive unit fully designed by voestalpine Böhler Welding
- Full parameters control panel on wire feeder unit
- Ø 200/300 mm wire spool compatible
- Full digital and user-friendly LCD graphic display control panel (WF NX 330/430 SteelDrive)
- Full digital and user-friendly control panel (WF NX 230 Classic/Smart/ SteelDrive - WF NX 330/430 Classic/Smart)
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- Back-up/Restore automatic
- User-defined welding program storage capability (240 free memory locations) (WF NX 330/430 SteelDrive)
- Totally programmable user interface (WF NX 330/430 SteelDrive)
- Programmable welding operations safety limits (WF NX 330/430 SteelDrive)
- Lock-unlock function key protected by password
- Control of several welding units over Ethernet
- Totally welding process remote programming and management by PC network
- Ideal for stick welding with multiple types of popular electrodes
- Built-in adjustable arc control features (hot start, arc force, antisticking)
- Synergic setting for optimal stick welding with multiple types of electrodes (WF NX 330/430 SteelDrive)
- Reduced electromagnetic interference with lift start TIG welding
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Crater filler operating mode (WF NX 330/430 SteelDrive)
- Synergic operations from databank (18 pre-set programs) (WF NX 230/330/430 Smart)
- Synergic operations from databank (52 pre-set programs) (WF NX 230/330/430 SteelDrive)
- Synergic operations from databank (DEMO)
- Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment (WF NX 230/330/430 SteelDrive)
- Wire speed (0,5-22,0 m/min) (WF NX 230 Classic/Smart/SteelDrive - WF NX 330/430 Classic/Smart)
- Spot welding mode
- Intermittent welding mode
- Bilevel MIG/MAG (WF NX 330/430 SteelDrive)
- Euro adaptor - U/D MIG/MAG torch compatible (WF NX 330/430 SteelDrive)
- Push-pull torch device
- Remote control compatible
- WU cooling unit compatible
- Controlled cooling operations
Technical Data
| General | |
|---|---|
| Welding processs | MIG/MAG - MMA - TIG DC Lift |
| Materials | Carbon steels - Stainless Steels - Aluminum |
| Dimensions | 620x240x460mm |
| Weight | 27.3 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400V±15% |
| Maximum input power | 29.7 kVA |
| Maximum input current | 42.1 A |
| Efficiency | 90% |
| Slow blow line fuse | 40 A |
| Open circuit voltage | 61Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x6mm2 - 5 m |
| Welding | |
| Adjustment range | 3-500A |
|
Duty cycle MIG/MAG - 40 °C |
50% - 500A 60% - 470A 100% - 420A |
|
Duty cycle
MIG/MAG - 25 °C
|
80% - 500A
100% - 470A
|
| Ø Wire diameter | 1.0 -1.2 mm (opz .0.6-1.6) |
| Ø Fluxcoredwire | 0.9 - 1.6 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 4 |
| Wire spool diameter | Ø 200/300mm (200 mm WF NX 230) |
| Remote Control compatible | yes |
| U/D MIG/MAG torch compatible | yes (SteelDrive) |
| PUSH PULL torch compatible | yes |
