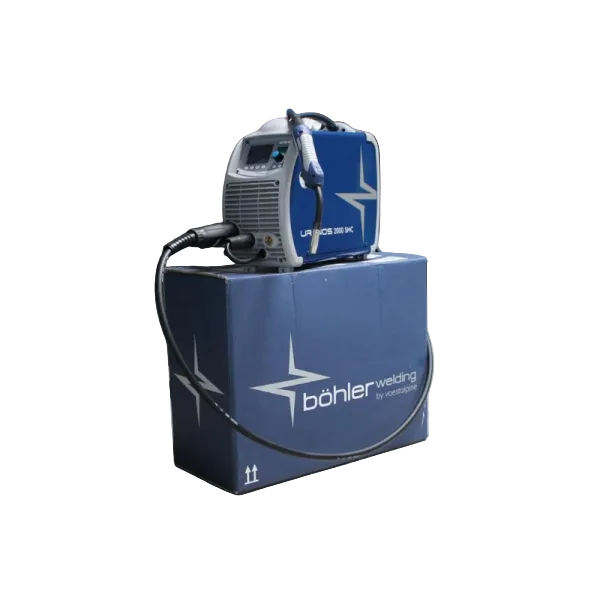

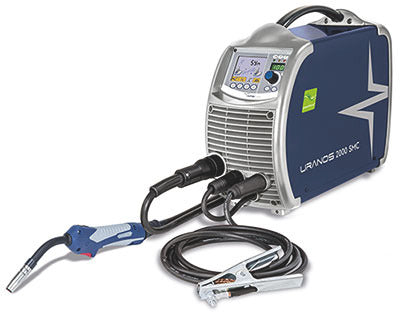

Bohler URANOS 2000 SMC MIG/MAG - MMA - TIG DC Lift Welder 230V
The URANOS 2000 SMC is the perfect welding power source for simple, reliable and modern wire fed welding, combines modern digital controls, built-in wire feed, and modern inverter efficiency — the URANOS 2000 SMC delivers. Its single-phase 230 V compatibility means this machine can slot into typical workshop power supplies without requiring heavy three-phase infrastructure. It is paticularly suited to continuous processes typical of light and metal fabrication, shipbuilding, car repair and mechanical workshops
Its flexible process support (MIG/MAG, MMA, TIG DC Lift) and memory-capable user interface make it a strong choice for professionals who need both performance and ease of operation. Ideal for light-metal fabrication, workshop repair, body-shop tasks and continuous production use.
Features
- greenWave® inverter technology for high energy efficiency and perfect control over all welding phases
- Heavy duty and environmental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Reduced dimensions and compact construction
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Energy-saving inverter technology (built-in P.F.C. - power factor controller)

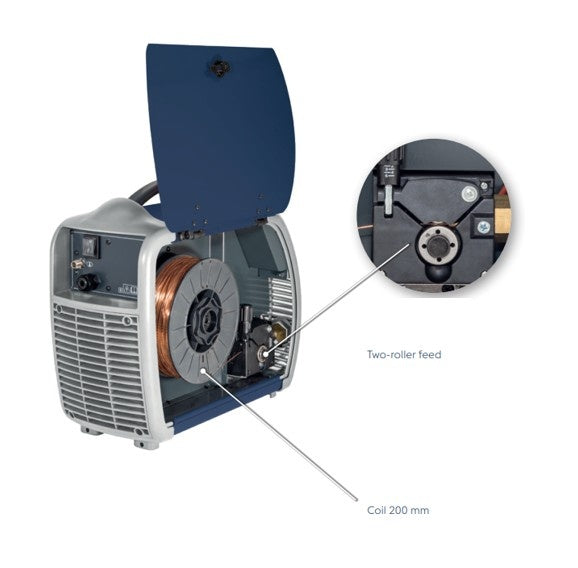

- Built-in wire feeder unit (2 rolls drive)
- Ø 200 mm wire spool compatible
- Welding polarity switch device

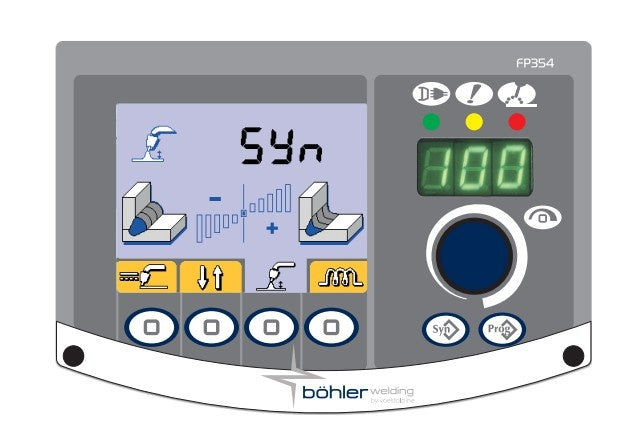

- Full digital and user-friendly control panel
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- User-defined welding program storage capability (8 free memory locations)
- Lock-unlock function key protected by password
- Ideal for stick welding with multiple types of popular electrodes
- Built-in adjustable arc control features (hot start, arc force, anti-sticking)
- Synergic setting for optimal stick welding with multiple types of electrodes
- Reduced electromagnetic interference with lift start TIG welding
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Crater filler operating mode
- Synergic operations from data-bank (19 pre-set programs)
- Wire speed (0,5-16,0 m/min), amperage and piece thickness adjustment
- Spot welding mode
- Intermittent welding mode
Technical Data
| General | |
|---|---|
| Welding processs | MIG/MAG - MMA - TIG DC Lift |
| Materials | Carbon steels - Stainless Steels - Aluminum |
| Dimensions | 485x210x400mm |
| Weight | 12.8 kg |
| Power supply | |
| Voltage (50/60 Hz) | 1x230Vac±15% |
| Maximum input power | 5x7 kVA |
| Maximum input current | 24x7 A |
| Power factor PF | 1 |
| Efficiency | 85% |
| Slow blow line fuse | 25A |
| Open circuit voltage | 58Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 3x2.5mm2 - 2m |
| Welding | |
| Adjustment range | 5A-220A |
|
Duty cycle MIG/MAG - 40 °C |
35% - 200A 60% - 160A 100% - 130A |
|
Duty cycle
MIG/MAG - 25 °C
|
100% - 220A |
| Ø Wire diameter | 0.8 -1.0 mm (opz 0.6-1.0) |
| Ø Fluxcoredwire | 0.9 -1.2 mm |
| Ø Aluminumwire | 0.8 -1.0 mm |
| Wire speed | 0.5 - 16 m/min |
| N° rolls | 2 |
| Wire spool diameter | Ø 200 mm |
| Synergic program | 19 |
| Welding program memory location | yes |
