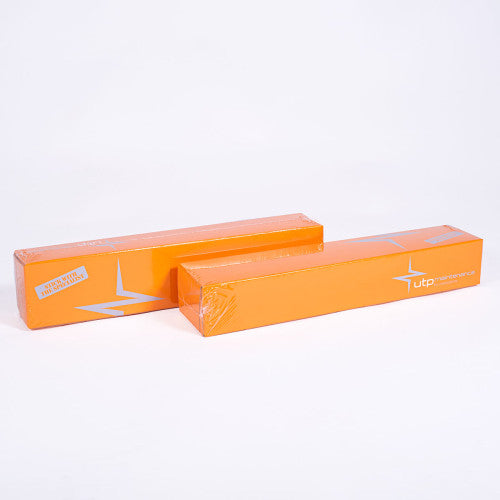

Bohler Wearstick Dur 580 (Wear Protection Difficult to weld-Multi Purpose) Stick Electrodes
Bohler Wearstick DUR 580 (also known as UTP DUR 580) are basic coated stick electrodes for crack-proof, wear-resistant surfacing. Hardness of the weld metal approx. 58 HRC, uses on surfacing and hardfacing industrial components subject to intense abrasion, friction, and moderate impact, such as in mining, earth-moving, and crushing equipment.
Features
- Delivers a pure weld metal hardness of approximately 58 HRC right after welding.
- The weld deposit forms a dense, tough martensitic structure engineered to withstand heavy impact, high pressure, and severe abrasion.
- The Basic coated stick electrode for crack-proof, wear-resistant surfacing ensures the hardfacing layer remains stable under severe thermal and mechanical stresses.
- Features smooth arc performance with minimal spattering, facilitating a very controlled, predictable weld bead build-up.
- These basic-coated electrodes provide easy handling and a smooth finish, and can be welded in all positions except for vertical-down.
- Designed with advanced moisture resistance to strictly limit diffusible hydrogen levels, greatly reducing the risk of underbead cold cracking.
- Can be reliably applied to a wide array of base metals including carbon steel, cast steel, tool steel, and high-manganese steel.
- Capable of multi-pass building when paired with appropriate lower-hardness buffer layers (such as Wearstick Dur 250) to cushion the highly rigid top coats.
Technical Data
- EN ISO 14700: E Z Fe8
- Weld Metal Hardness - Approximately 58 HRC
- Current Type - DC+ / AC
- Alloyed with chromium (~9.5%), silicon, manganese, and iron balance, optimised for high resistance against severe abrasive wear
