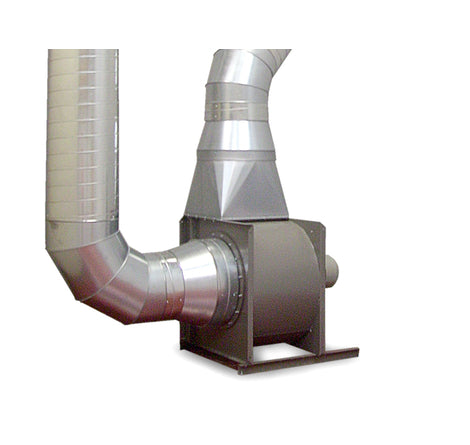

Central fans are the ideal solution when large amounts of air need to be moved. They are put to use in combination with duct on welding fume extraction tables, hoods and arms. Fans are used everywhere to vent where filtering the air is not important.
Features and Benefits:
- Efficiently moves large amounts of air, with a maximum fan performance of 10000 m³/h.
- Suitable for use with extraction tables, hoods, and arms.
- Offers low investment costs as it operates without air filtration.
- Constructed from galvanized steel sheet, ensuring durability.
- Available in different performance classes to cater to various needs.
- Designed for non-stop operation, making it ideal for environments with high levels of smoke and particles.
Basic data
| Max. fan performance | 10000 m³/h |
| Extraction capacity min. | 7000 m³/h |
| Extraction capacity (max.) | 10000 m³/h |
| Extraction capacity | 7000 – 10000 m³/h |
| Vacuum min. | 1700 Pa |
| Vacuum | 1700 – 2400 Pa |
| Working pressure in PA | 2400 Pa |
| Weight | 160 kg |
| Motor power | 11 kW |
| Power supply | 3 x 400 V / 50 Hz |
| Rated current | 20.2 A |
Additional information
| Inlet diam. | A˜ 450 mm |
| Outlet opening | 599 x 288 mm |
| Transition piece | A˜ 450 mm |
Benefits
- Low investment costs because extraction takes place without air filtration
Properties
- Galvanised steel sheet construction
- Different performance classes
Applications
- For extraction tables, extraction hoods and extraction arms
- High levels of smoke and particles
- Non-stop operation
Variants
- Different performance classes
