Cougartron Fury100 Weld-cleaner 110V/230V is our new addition to the line of FURY weld cleaners – equipped with 100amps of power designed to remove the most severe forms of oxidation after TIG and MIG welding.
The FURY 100 is suitable for:
- Daily and extensive cleaning of TIG welds
- MIG weld cleaning (up to 0.39” thickness)
- Marking & Etching – Available with the Cougartron Basic Etching Set
- Electropolishing – Fantastic opportunity to start polishing your parts in-house!
The FURY 100 delivers twice the operating power of our ProPlus machine, making it a great transient solution for applications where 50 amps is not enough for more demanding jobs, and where the full power of the 200 Amps (FURY 200) model is not required.
FURY 100 main features:
- robust and waterproof case
- puncture-proof wheels
- detachable handle with cable holders and drip tray for a weld cleaning brush
- heavy-duty cables with Dinse connectors

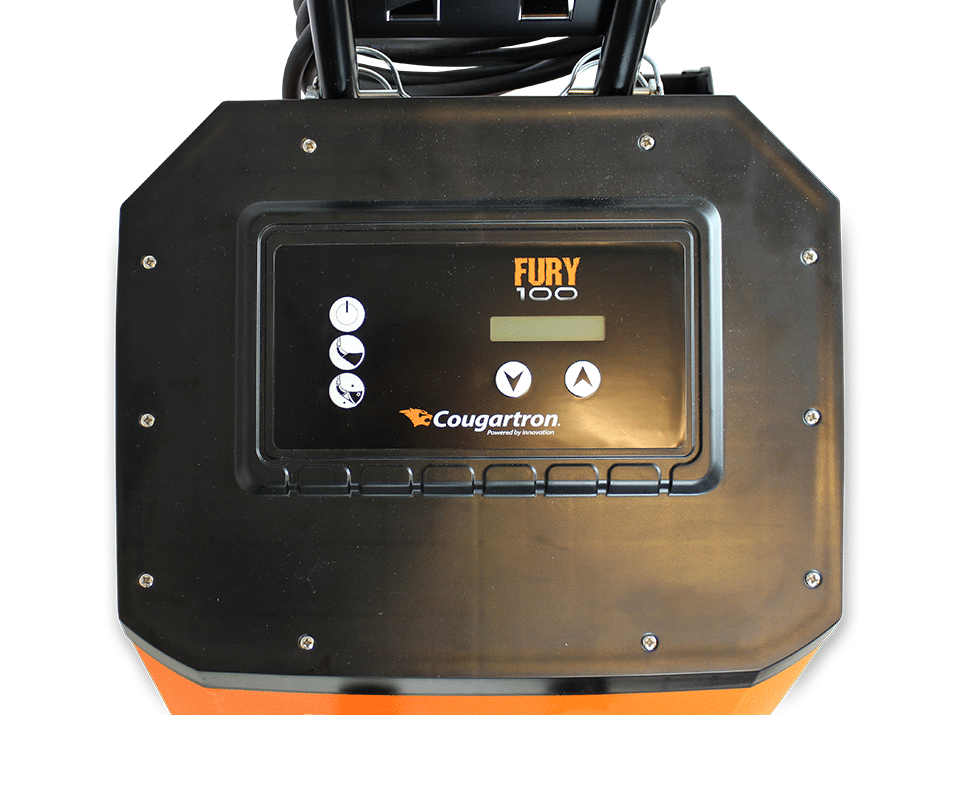

- acid proof control panel
- cleaning with two FURY brushes simultaneously
FURY 100 comes in a standard 230V and 110V input. The 110V version makes it highly portable and useful in locations where the stronger current input is not available. Despite the lower input voltage, the machine is still capable of cleaning light and dark MIG welds, which makes it a unique weld cleaning solution on the market.
Note: FURY 100 is best used in combination with two weld cleaning brushes (with the use up to 100amps) allowing you to clean welds twice as fast. Use of one brush is recommended for smaller tig jobs with a power input max.80amp.
It is also possible to use 4 brushes simultaneously, but it is only recommended for surface cleaning (not weld cleaning).

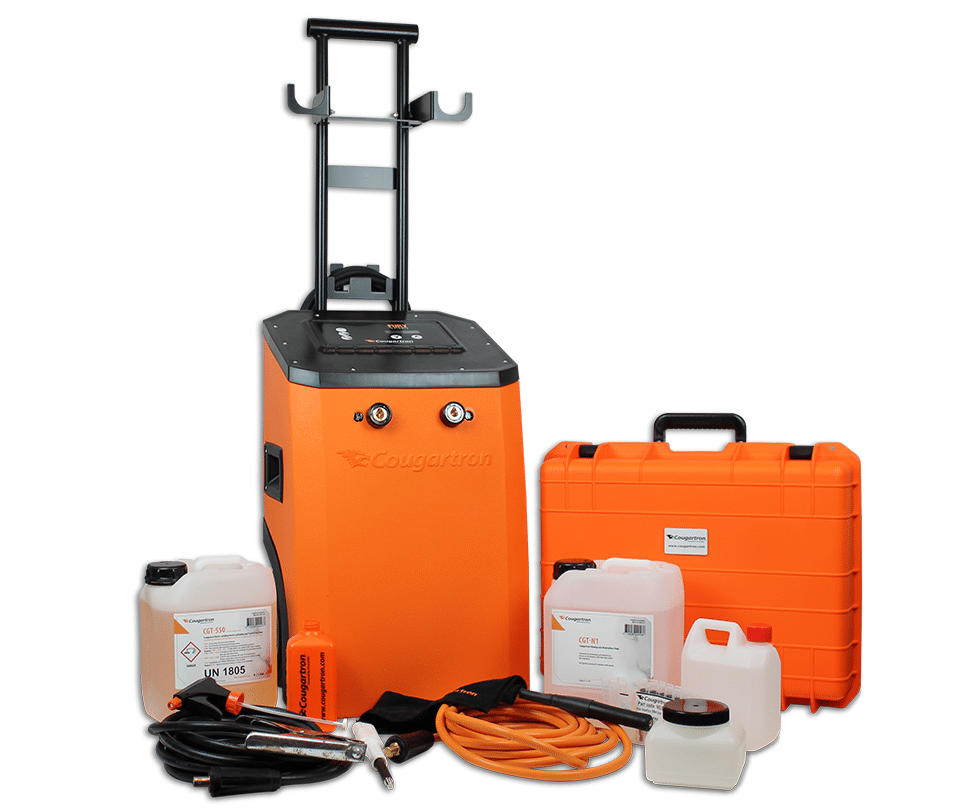

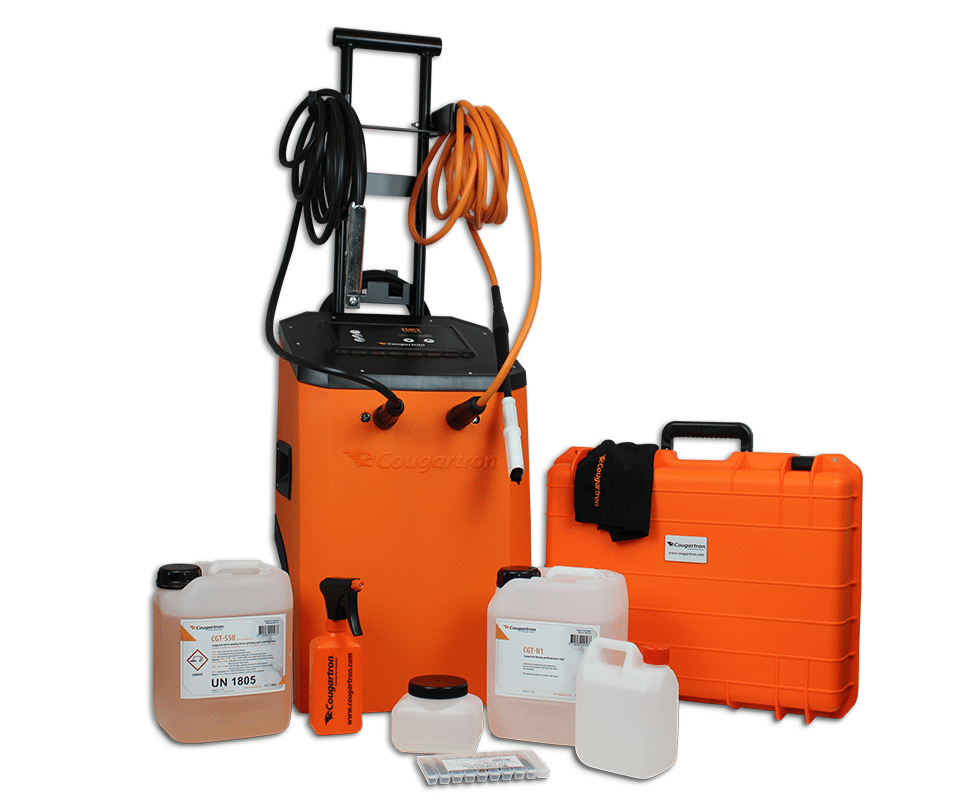

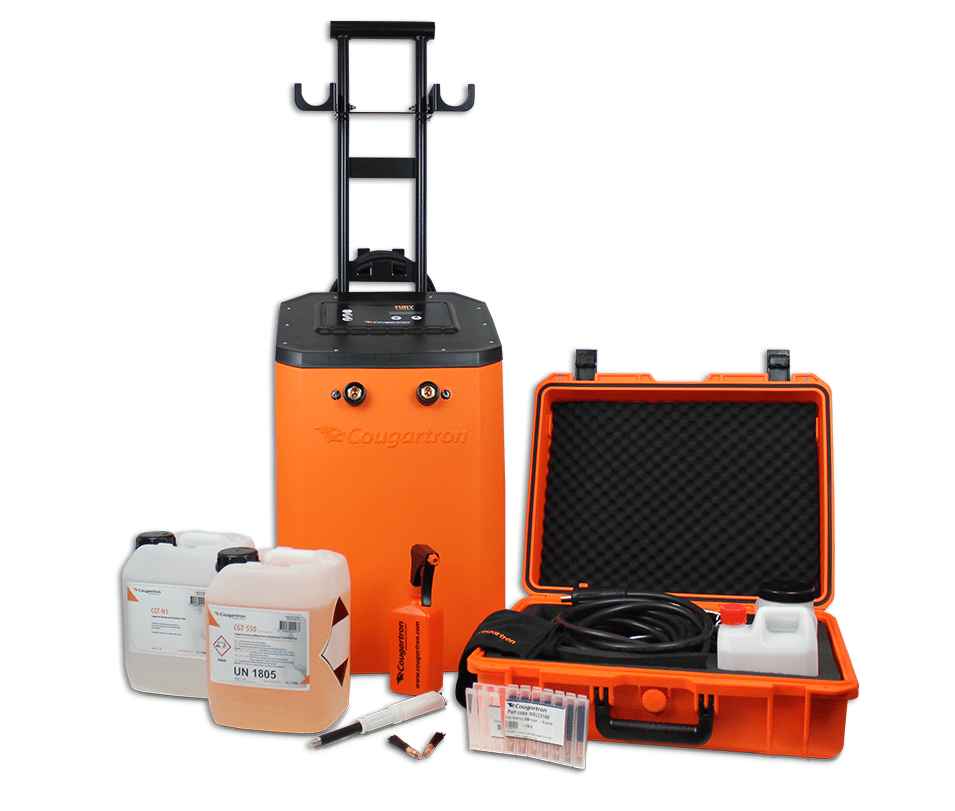

Packages
Basic Set: Machine unit without consumables
Starter Set A: Machine unit with consumables for weld cleaning and polishing
Starter Set B: Starter Set A plus Standard marking set
Starter Set C: Starter Set A plus Advanced marking set
Specifications
-
Power supply: 110/230V version-N/A
- Power supply: 110V version-110 V AC, 50/60Hz, 15A
-
Power supply: 230V version-240 V AC, 50/60Hz, 10A
- Weld-cleaning: Amp range-10-100A, 10A increments
- Weld-cleaning: Voltage range-10-16 V AC
- Polishing: Amp range-10-100A, 10A increments
- Polishing: Voltage range-10-12V DC
- Marking: Amp range-2-10A, 2A increments
- Marking: Voltage range-12 V AC
- Duty cycle-100%
- Detachable handle-Yes
- Power Supply Chord Length-12’
- Output cable length-20’
- Output cable Size-0.054 in2
- Brush holder options-1,2
- Fluid feed compatible-No
- Size-15Wx13Lx25H (machine only) 15Wx13Lx46H (with Handle attached)
- Enclosure protection-IP51
- Certification-CE, UL, CSA, RCM
