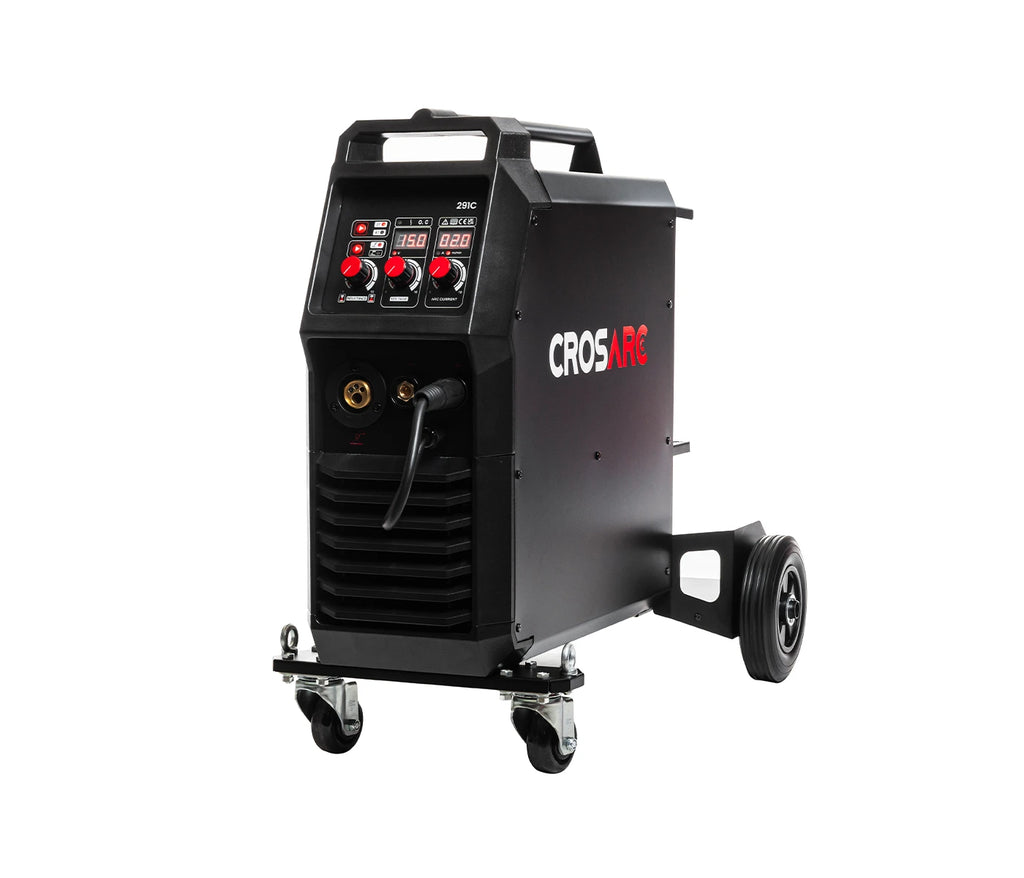

The CROSARC MIG 291c is a latest technology IGBT inverter based compact power source.
This modern evolution in MIG/MMA welding systems utilises a highly intuitive control panel allowing excellent welding performance and repeatability on a wide range of applications in the light to medium fabrication industries.
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Volt / Amp Display
- Seamless Electronic Adjustment
- 4 Roll Wire Feed System
- Suitable for 0.6, 0.8 & 1.0mm Wire
- Will Accept 5 or 15 Kilogram Reel’s
- Trolley Mounted
- Generator Friendly
- Easy Set Up & Operation
| Function | MIG |
|---|---|
| Current Type | AC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Voltage Adjustment Range | 15 - 30v |
| Wire Speed | 2 - 16m/min |
| Current Range |
MIG: 25-250 Amps |
| Duty Cycle | @ 40°C: 250 Amps @ 60% |
| Efficiency | 80% |
| Power Factor at 100% | 0.73 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 935 |
|---|---|
| Width | 445 |
| Length | 810 |
| Weight | 55Kg |
Functions
- MIG/MAG
- MMA
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
-
Variable Inductance
What’s Included In The Box?
- Owner’s Manual
- 291C Inverter Power Source
- M2-4 Mtr MIG Welding Torch
- Gas Hose
- 3 Mtr MMA Lead
- VRD Safety Device
- Earth Return Lead & Clamp
- 16A Plug
