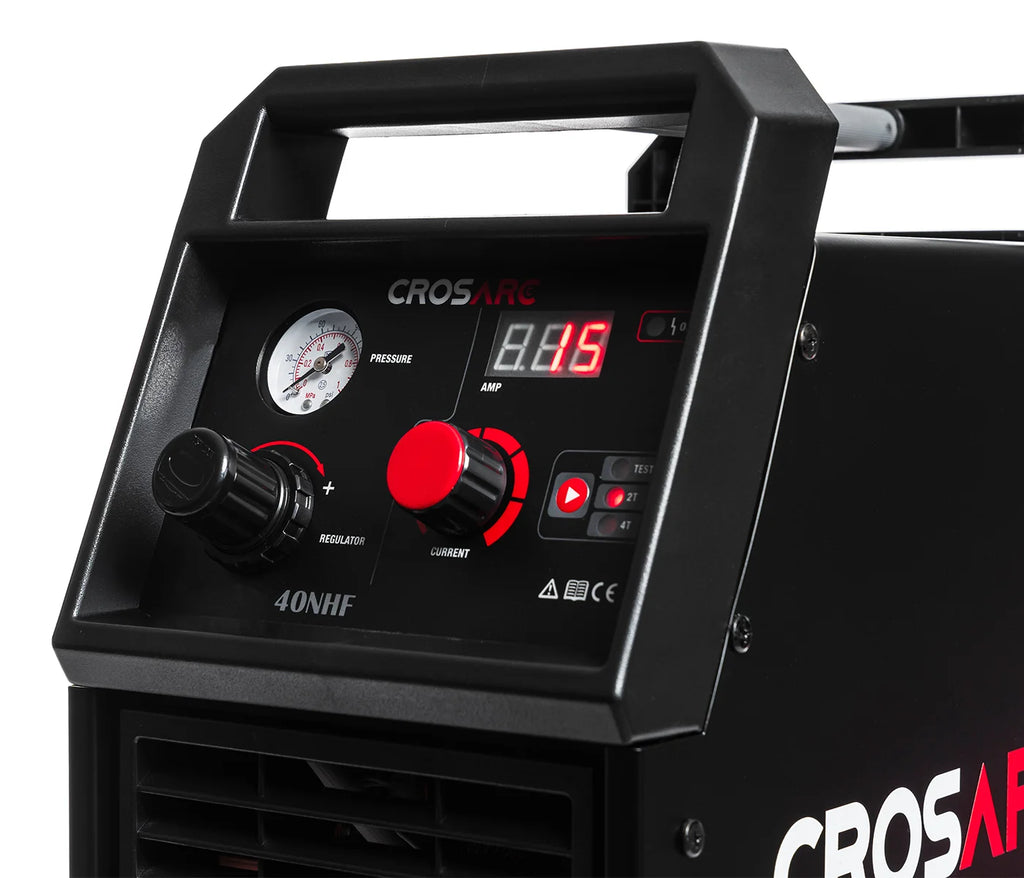

The CROSARC PLASMA 41 NHF is a latest technology IGBT inverter based plasma cutting power source, operating from a 230v mains supply.
This highly portable machine utilises the latest evolution in plasma cutting technology. The CROSARC PLASMA 41 NHF incorporates the latest design in non-HF hand torches and offers smooth and flexible operation for a wide range of applications.
| Function | Plasma |
|---|---|
| Current Type | AC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Current Range |
15-40 Amps |
| Duty Cycle | @ 40°C: 40 Amps @ 40% |
| Efficiency | 80% |
| Power Factor at 100% | 0.73 |
| Protection/Insulation Class | IP21/F |
| Cutting Capacity Clean Cut | 12mm |
| Cutting Capacity Severance | 15mm |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 530 |
|---|---|
| Width | 305 |
| Length | 565 |
| Weight | 16 Kg |
Functions
- Plasma Cutting
- 12mm Clean Cut
- Air Pressure Adjustment
- 2T/4T
Features
- Latest IGBT Inverter Power Source
- Digital Amp Display
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 41 NHF Inverter Power Source
- 4 Mtr S45 Plasma Cutting Torch
- Earth Return Lead & Clamp
- 13A Plug
