Cros-arc CAP0264 Mig 323C

  • Sale
  • £1,432.00
  • Regular price £1,790.00

Excludes VAT

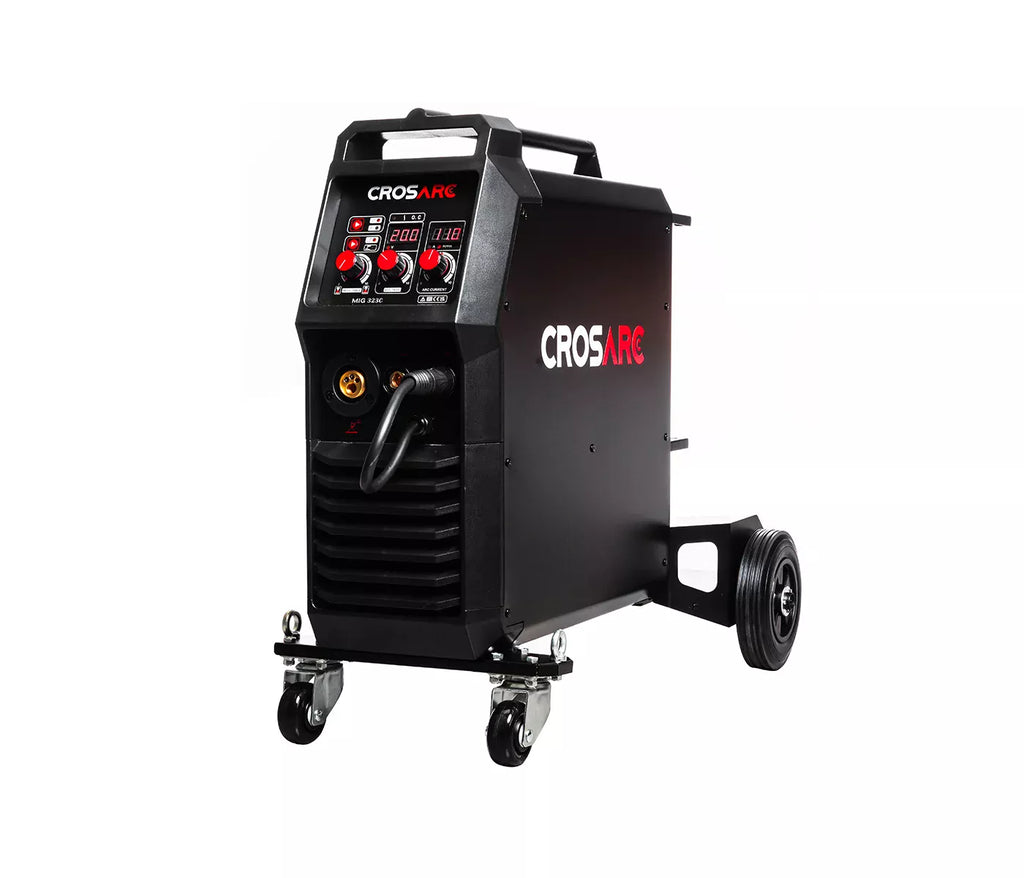

The CROSARC MIG 323c is a latest technology IGBT inverter based compact power source.

This modern evolution in MIG/MMA welding systems utilises a highly intuitive control panel allowing excellent welding performance and repeatability on a wide range of applications in the medium steelwork and fabrication industries.

Function MIG
Current Type AC
Voltage 400v
Cooling Power source Integrated Fan
Approvals CE / UKCA
Warranty 3 Years

Technical Specification

Input Current 20 Amps
Voltage Adjustment Range 15 - 32v
Wire Speed 2 - 20m/min
Current Range

MIG: 25-300 Amps
MMA: 25-300 Amps

Duty Cycle @ 40°C: 300 Amps @ 60%
Efficiency 85%
Power Factor at 100% 0.93
Protection/Insulation Class IP21/F
Generator Compatible Yes
Conforms to

EN IEC 60974-10:2021
EN IEC 60974-1:2022

Dimensions (mm)

Height 935
Width 445
Length 810
Weight 58Kg

Functions

  • MIG/MAG
  • MMA
  • Burn Back Adjustment
  • Wire Inching
  • 2T/4T
  • Gas Purge Function
  • Variable Inductance

Features

  • Latest IGBT Multi Process Inverter Power Source

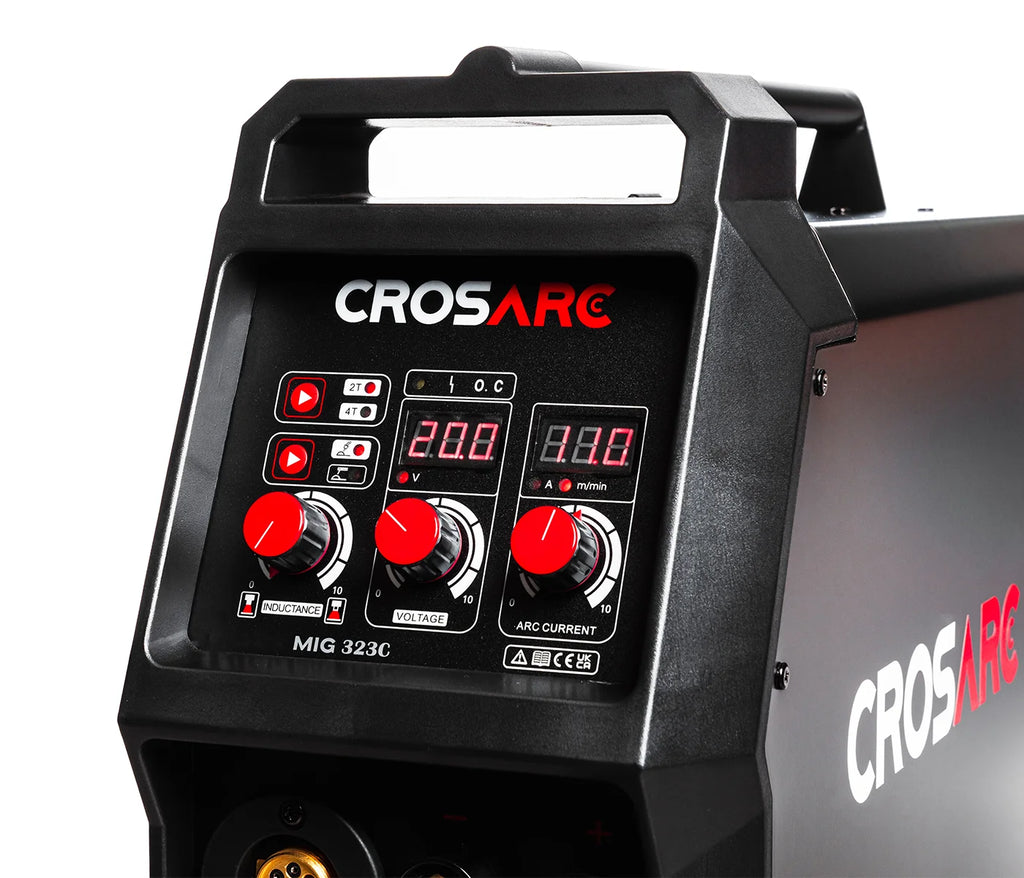

  • Digital Volt / Amp Display
  • Seamless Electronic Adjustment
  • 4 Roll Wire Feed System
  • Suitable for 0.6, 0.8 & 1.0mm Wire
  • Will Accept 5 or 15 Kilogram Reel’s
  • Trolley Mounted
  • Generator Friendly
  • Easy Set Up & Operation

What’s Included In The Box?

  • Owner’s Manual
  • 323C Inverter Power Source
  • M2-4 Mtr MIG Welding Torch
  • Gas Hose
  • 3 Mtr MMA Lead
  • VRD Safety Device
  • Earth Return Lead & Clamp

Datasheet
