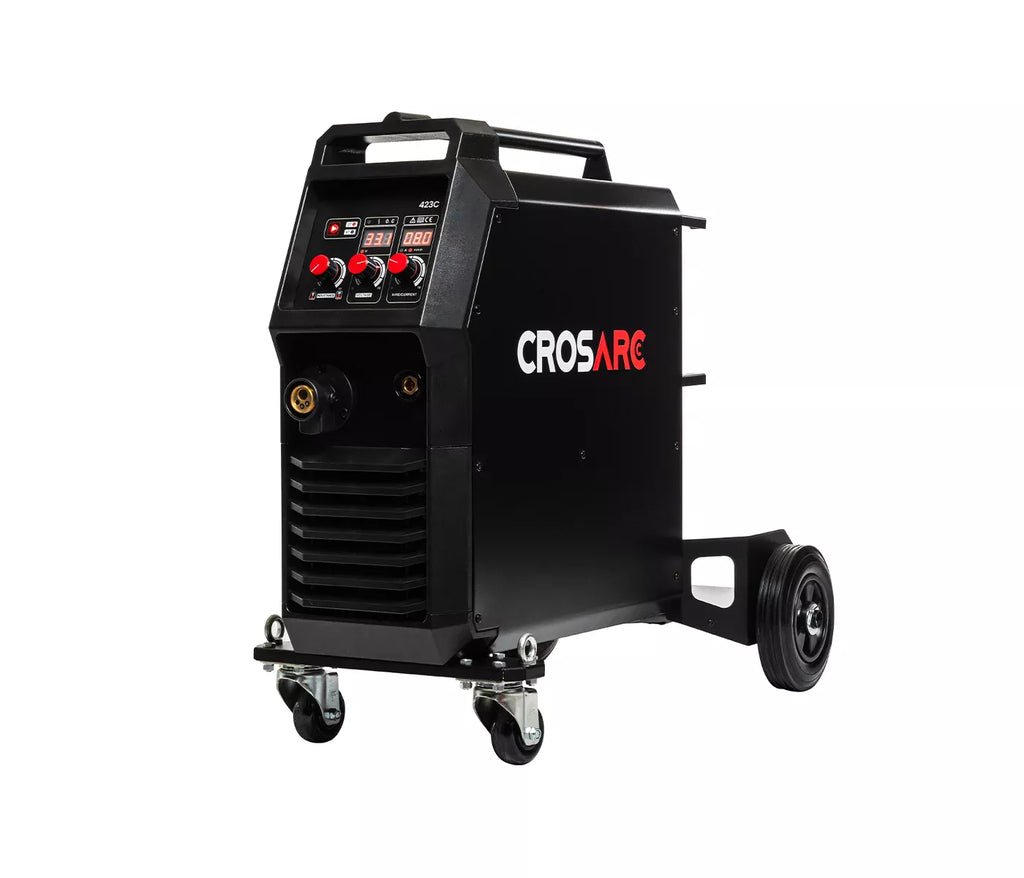

The CROSARC MIG 423c is a latest technology IGBT inverter based compact power source.
This modern evolution in industrial MIG welding systems utilises a highly intuitive control panel allowing excellent welding performance and repeatability on a wide range of applications in the medium to heavy steelwork and fabrication industries.
| Function | MIG |
|---|---|
| Current Type | AC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 24 Amps |
|---|---|
| Voltage Adjustment Range | 15 - 38v |
| Wire Speed | 2 - 20m/min |
| Current Range |
50-400 Amps |
| Duty Cycle | @ 40°C: 400 Amps @ 60% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 935 |
|---|---|
| Width | 445 |
| Length | 810 |
| Weight | 79Kg |
Functions
- MIG/MAG
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
- Variable Inductance
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Volt / Amp Display
- Seamless Electronic Adjustment
- 4 Roll Wire Feed System
- Suitable for 0.6, 0.8, 1.0 & 1.2mm Wire
- Will Accept 5 or 15 Kilogram Reel’s
- Trolley Mounted
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 423C Inverter Power Source
- M4-4 Mtr MIG Welding Torch
- Gas Hose
- Earth Return Lead & Clamp
