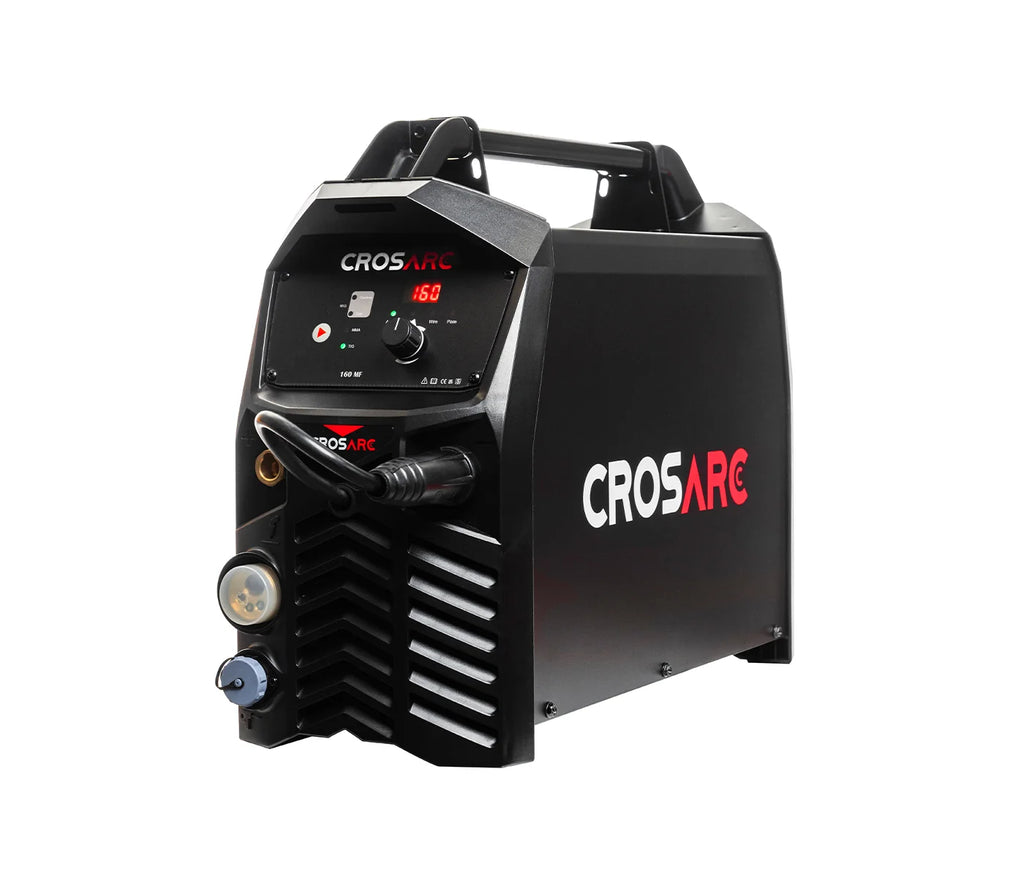

The CROSARC MIG 160MF is a modern inverter based multi process power source.
This highly portable machine offers MIG/TIG DC with lift and MMA process options. The user friendly control panel allows for easy parameter adjustment to achieve excellent welding performance on a wide range of applications.
| Function | MIG Multi-function |
|---|---|
| Current Type | AC/DC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Wire Speed | 4 - 15m/min |
| Current Range |
MIG: 20-160 Amps |
| Duty Cycle | @ 40°C: 160 Amps @ 30% |
| Efficiency | 83% |
| Power Factor at 100% | 0.70 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 550 |
|---|---|
| Width | 195 |
| Length | 375 |
| Weight | 7.5Kg |
Functions
- MIG/MAG
- MMA
- TIG DC LIFT
Features
- Latest IGBT Multi Process Inverter Power Source

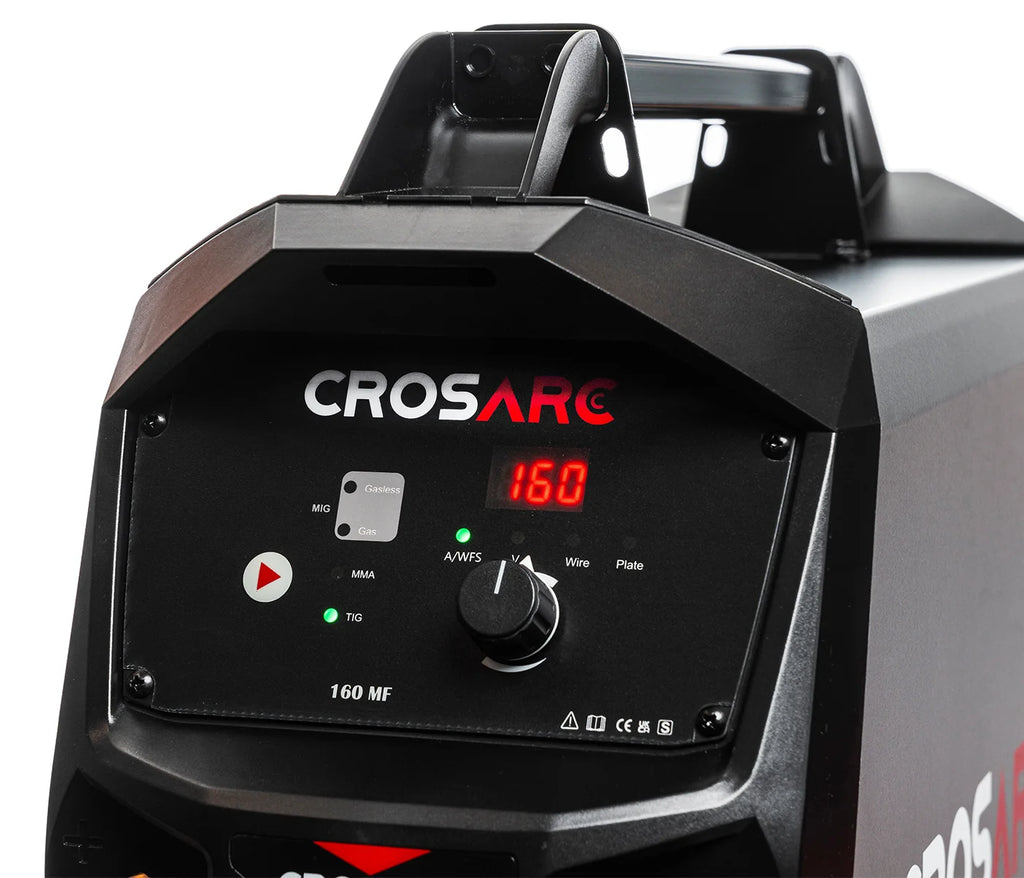

- Digital Volt / Amp Display
- Intuitive User Interface

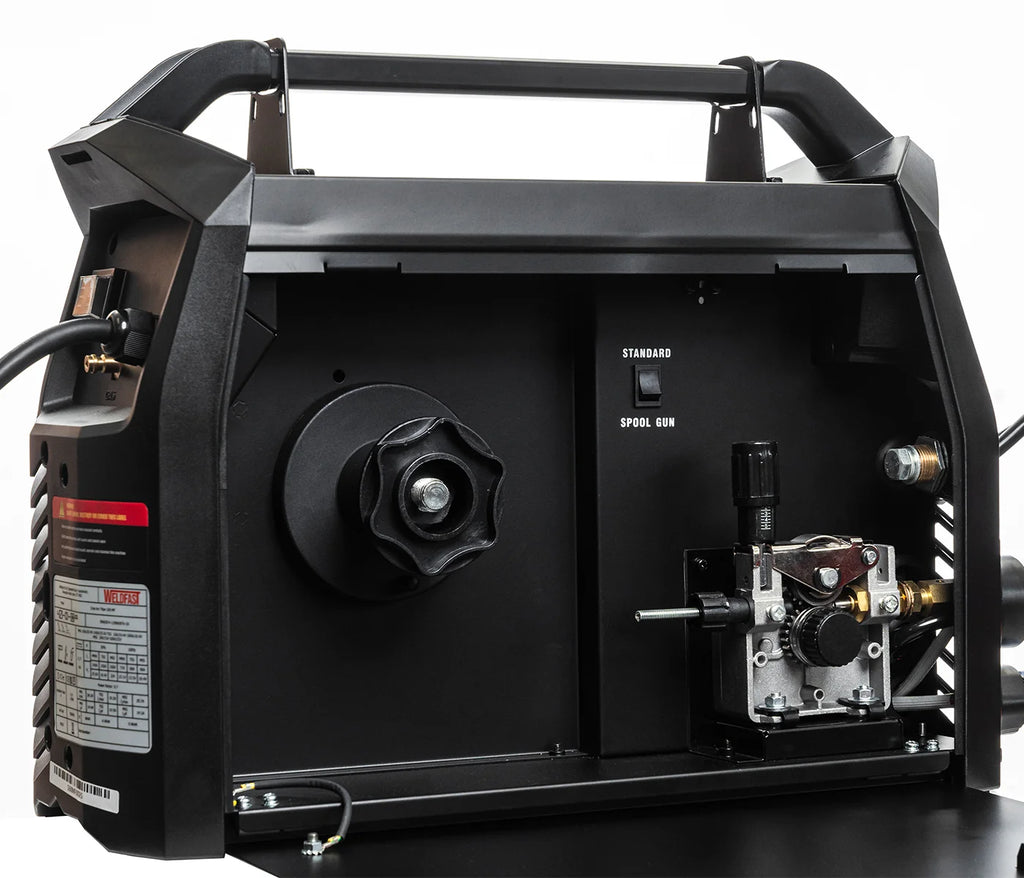

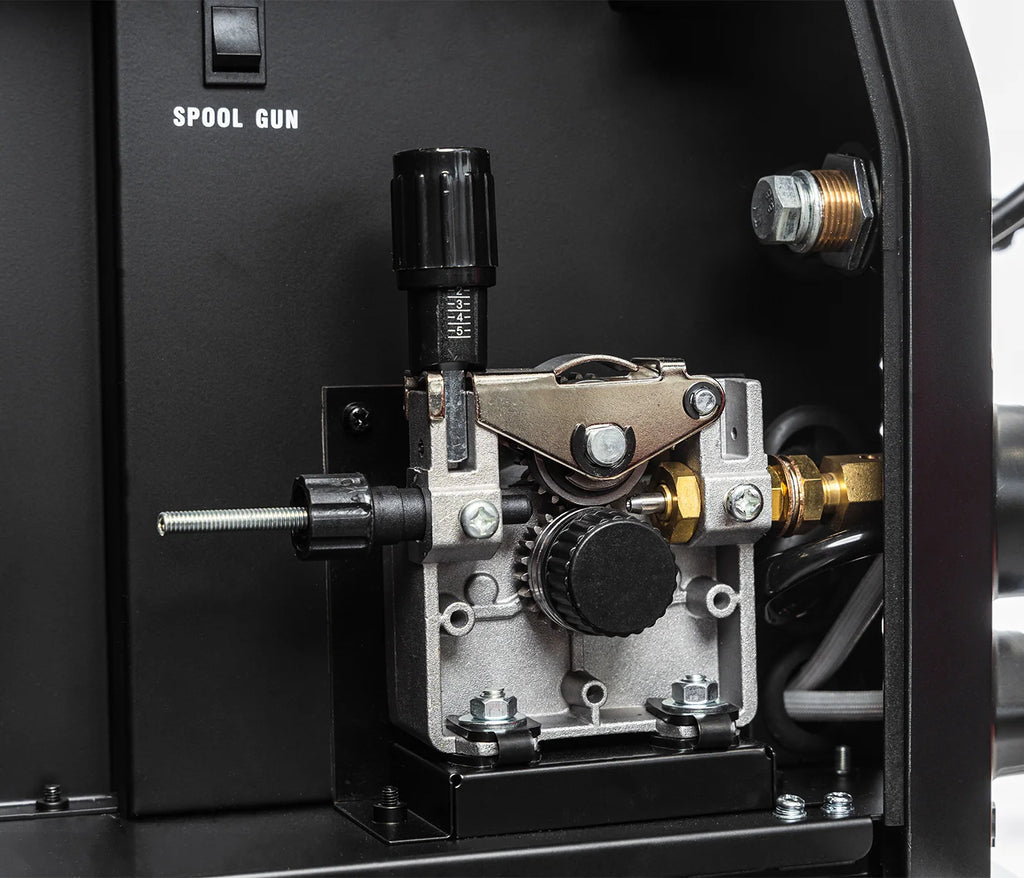

- 2 Roll Wire Feed System
- Suitable for 0.6 & 0.8mm Wire
- Will Accept 0.7 or 5 Kilogram Reel’s
- Suitable for 1.6 – 3.2mm MMA Electrodes
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 160MF Inverter Power Source
- M1-3 Mtr MIG Welding Torch
- Gas Hose
- Earth Return Lead & Clamp
