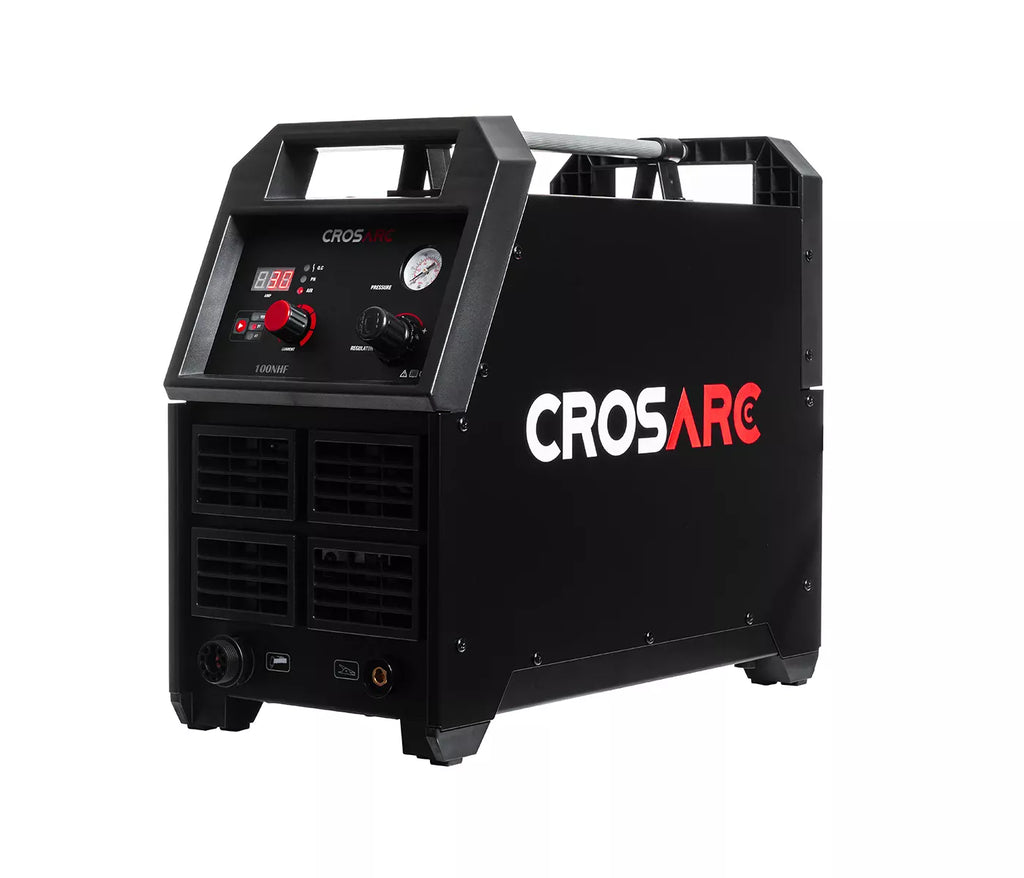

The CROSARC PLASMA 100 NHF is a latest technology IGBT inverter based plasma cutting power source, operating from a 400v mains supply.
This highly portable machine utilises the latest evolution in plasma cutting technology, the CROSARC PLASMA 100 NHF incorporates the latest design in non-HF hand torches and offers smooth and flexible operation for a wide range of heavy duty industrial and fabrication applications.
| Function | Plasma |
|---|---|
| Current Type | AC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 23 Amps |
|---|---|
| Air Pressure | 5.5 Bar |
| Current Range |
30-100 Amps |
| Duty Cycle | @ 40°C: 100 Amps @ 60% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP21/F |
| Cutting Capacity Clean Cut | 35mm |
| Cutting Capacity Severance | 45mm |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 640 |
|---|---|
| Width | 440 |
| Length | 535 |
| Weight | 33Kg |
Functions
- Plasma Cutting
- 2T/4T
- 35mm Clean Cut
- Air Pressure Adjustment
Features
- Latest IGBT Inverter Power Source

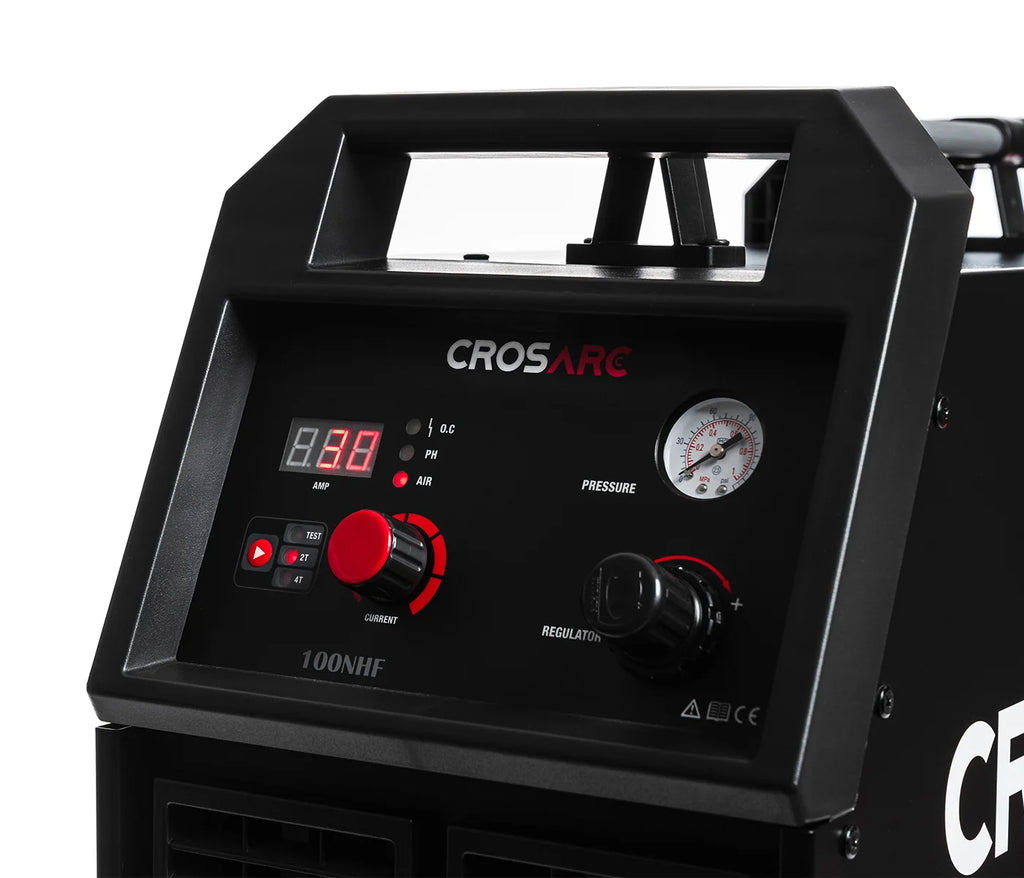

- Digital Amp Display
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 100 NHF Inverter Power Source
- 6 Mtr UPH105 Plasma Cutting Torch
- Earth Return Lead & Clamp
