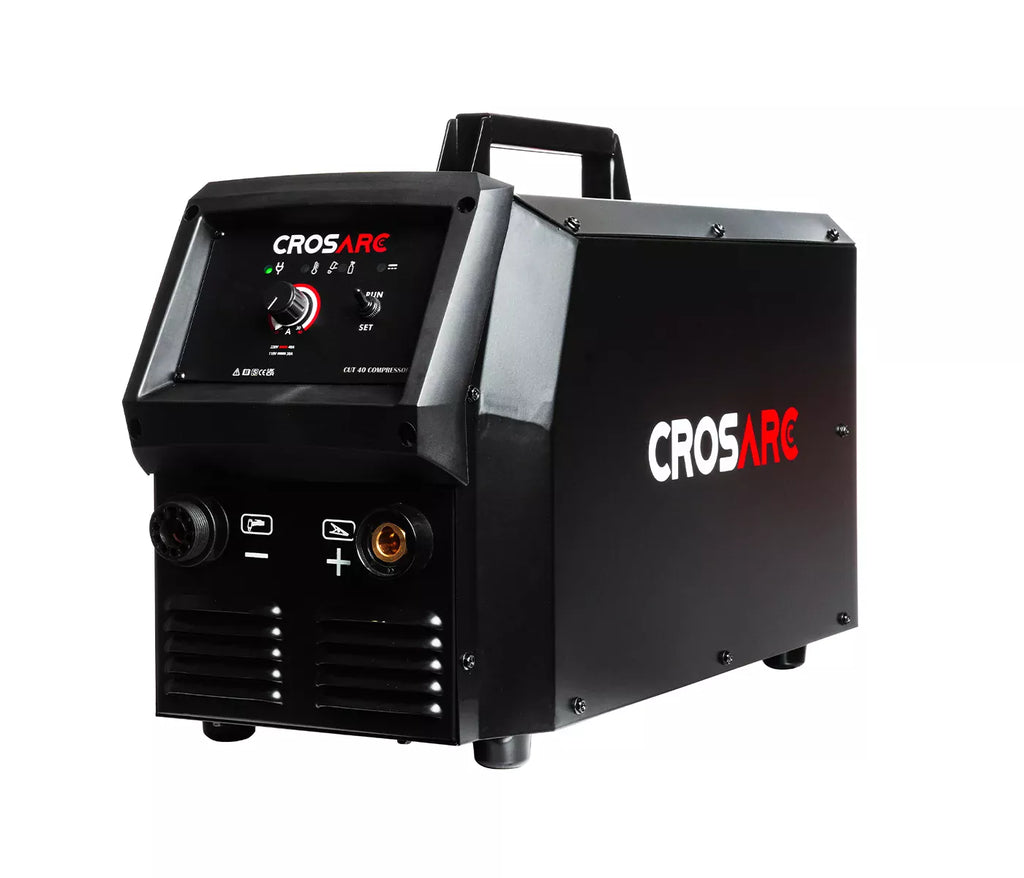

The CROSARC PLASMA 40 COMPRESSOR is a highly portable inverter based PFC plasma cutting system with built-in compressor.
This state-of-the-art machine utilises PFC system making it possible for the operator to select from a wide range of voltage input options. The advanced torch technology is used to produce excellent cutting performance on all materials up to 15mm.
| Function | Plasma |
|---|---|
| Current Type | AC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Current Range |
20-40 Amps |
| Duty Cycle | @ 40°C: 40 Amps @ 50% |
| Efficiency | 80% |
| Power Factor at 100% | 0.99 |
| Protection/Insulation Class | IP23/H |
| Cutting Capacity Clean Cut | 15mm |
| Cutting Capacity Severance | 20mm |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 480 |
|---|---|
| Width | 146 |
| Length | 278 |
| Weight | 20Kg |
Functions
- Plasma Cutting
- 15mm Clean Cut
- Ideal for Grid Cutting
- PFC Wide Voltage Range (90-275V AC)
Features
- Latest IGBT Inverter Power Source
- Digital Amp Display
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 40 Compressor Inverter Power Source
- 6 Mtr S45 Plasma Cutting Torch
- Earth Return Lead & Clamp
