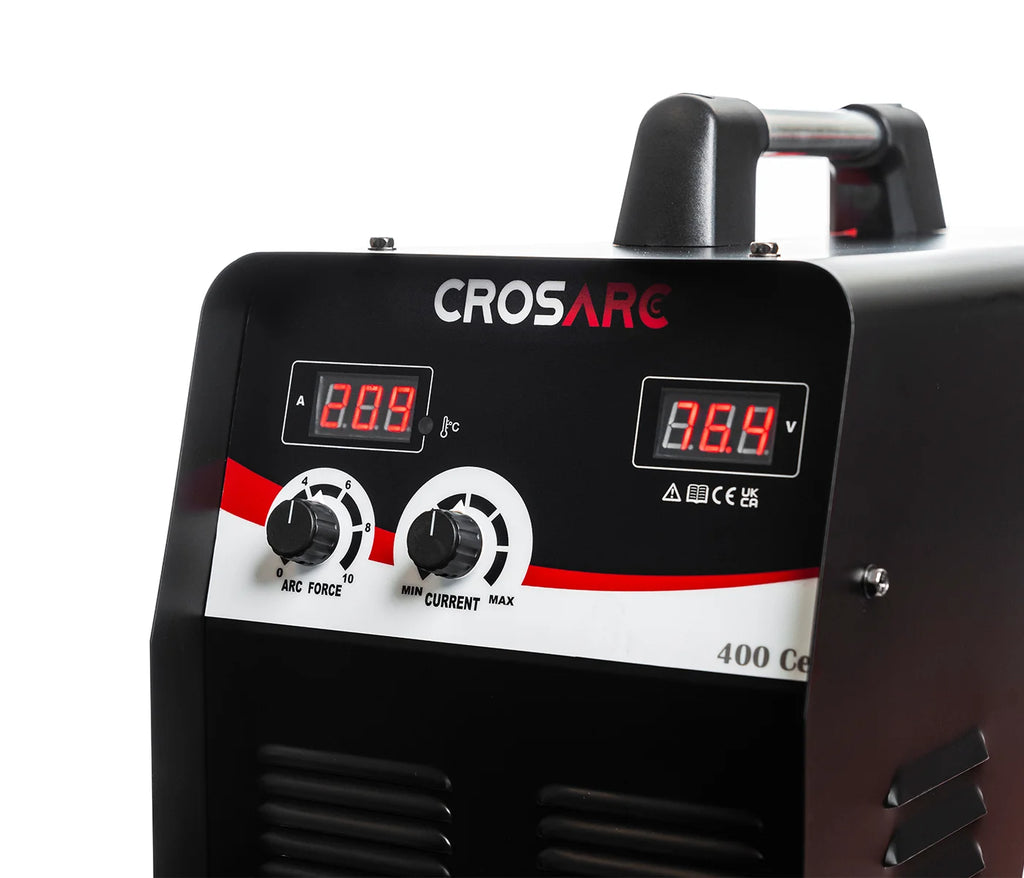

The CROSARC CELL MMA 400 DC is an advanced technology IGBT inverter based power source operating from a 400V mains supply.
This industry leading portable DC power source offers unrivalled MMA welding characteristics and performance with a range of electrodes including Low-Hydrogen and Cellulosic. The CROSARC MMA 400 DC is the next generation in industrial MMA welding and is the ideal selection for all industrial and heavy duty applications.
| Function | MMA |
|---|---|
| Current Type | DC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 26 Amps |
|---|---|
| Current Range |
40-400 Amps |
| Duty Cycle | @ 40°C: 400 Amps @ 40% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP21/H |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 520 |
|---|---|
| Width | 240 |
| Length | 445 |
| Weight | 19Kg |
Functions
- MMA
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Amp Display
- Suitable for 1.6 – 6mm MMA Electrodes
- Arc Force
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 400DC CELL Inverter Power Source
- Earth Return Lead & Clamp
- 4 Mtr MMA Lead
