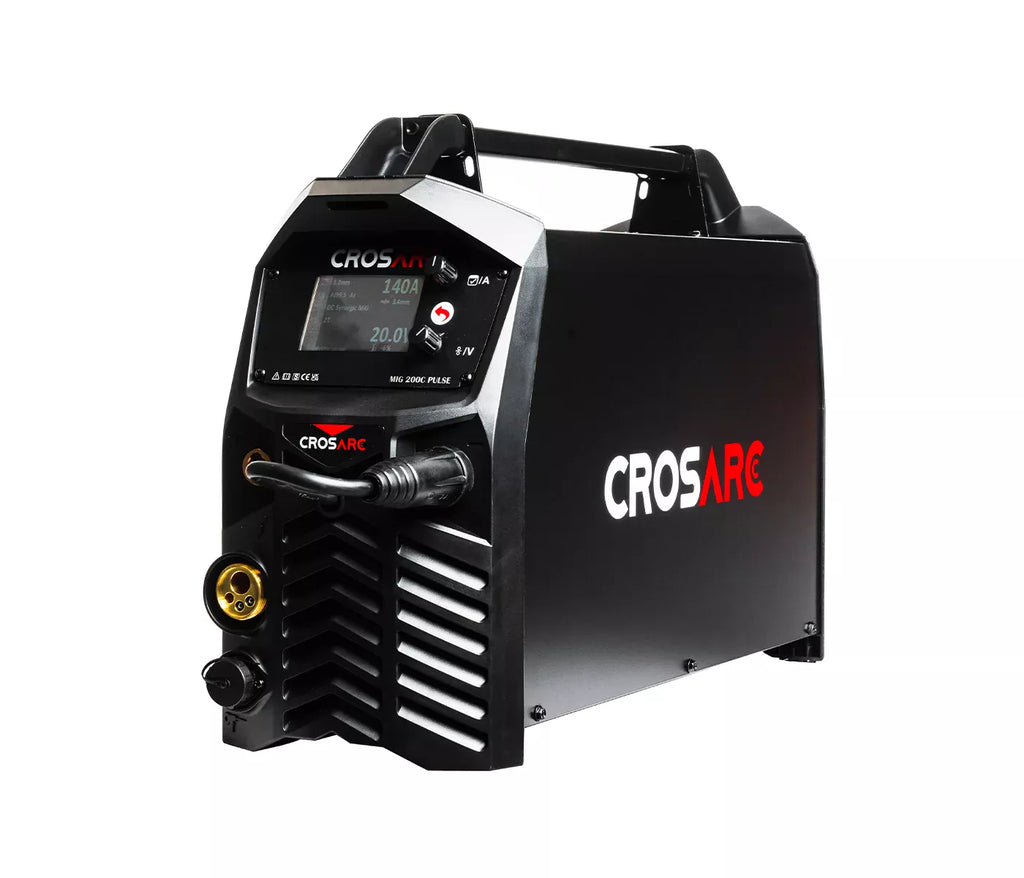

The CROSARC PULSE MIG MULTI PROCESS 200c is a latest technology IGBT inverter based power source.
This modern multi process welding machine offers exceptional welding performance. It allows the operator to select the correct welding process from the easy to use control panel for a wide range of applications to be considered.
| Function | MIG Pulse |
|---|---|
| Current Type | AC/DC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 110V - 32 (A) / 230V - 16 (A) |
|---|---|
| Wire Speed | 1.5 - 16m/min |
| Arc Adjustment | -9 soft + 9 hard (default 0) |
| Current Range |
110v 230v |
| Duty Cycle | @ 40°C: 200 Amps @ 25% |
| Efficiency | 85% |
| Power Factor at 100% | 0.99 |
| Protection/Insulation Class | IP23/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 550 |
|---|---|
| Width | 195 |
| Length | 375 |
| Weight | 13Kg |
Functions
- MIG/MAG
- MMA
- MIG PULSE
- TIG DC LIFT
- Synergic or Manual Mode
- Single/Double Pulse Settings
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
- Variable Inductance
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source

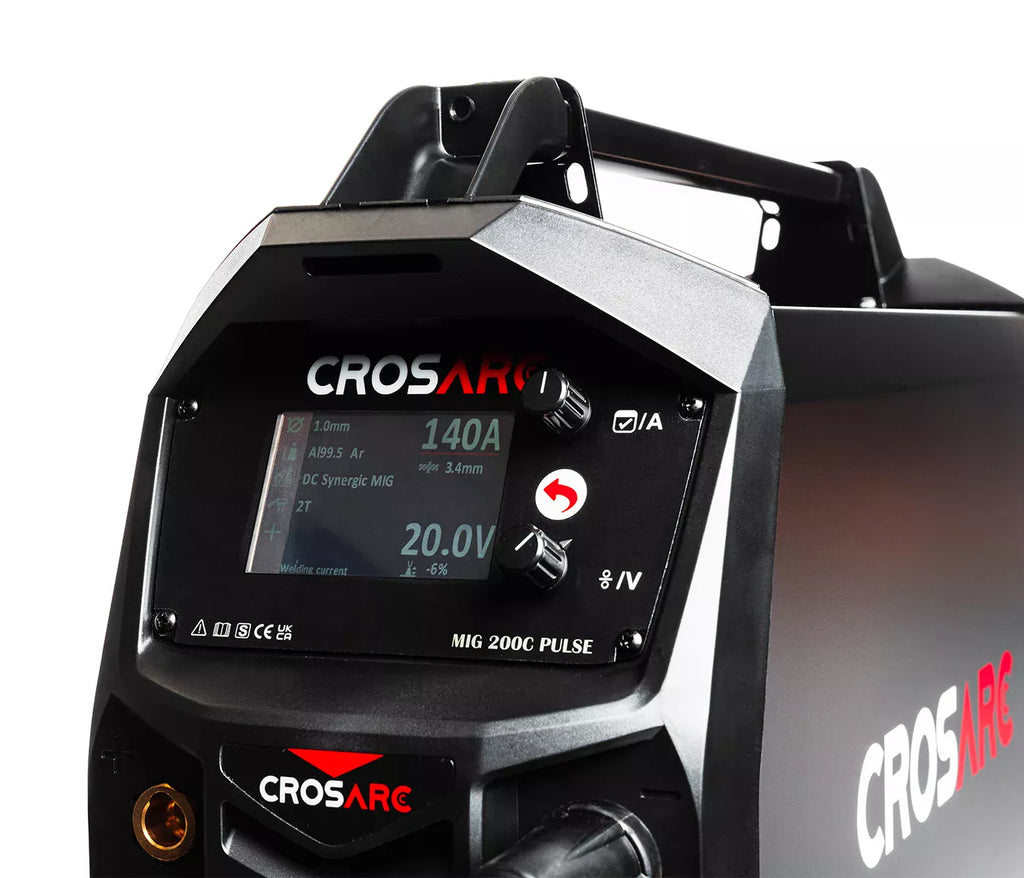

- High Resolution Colour User Interface

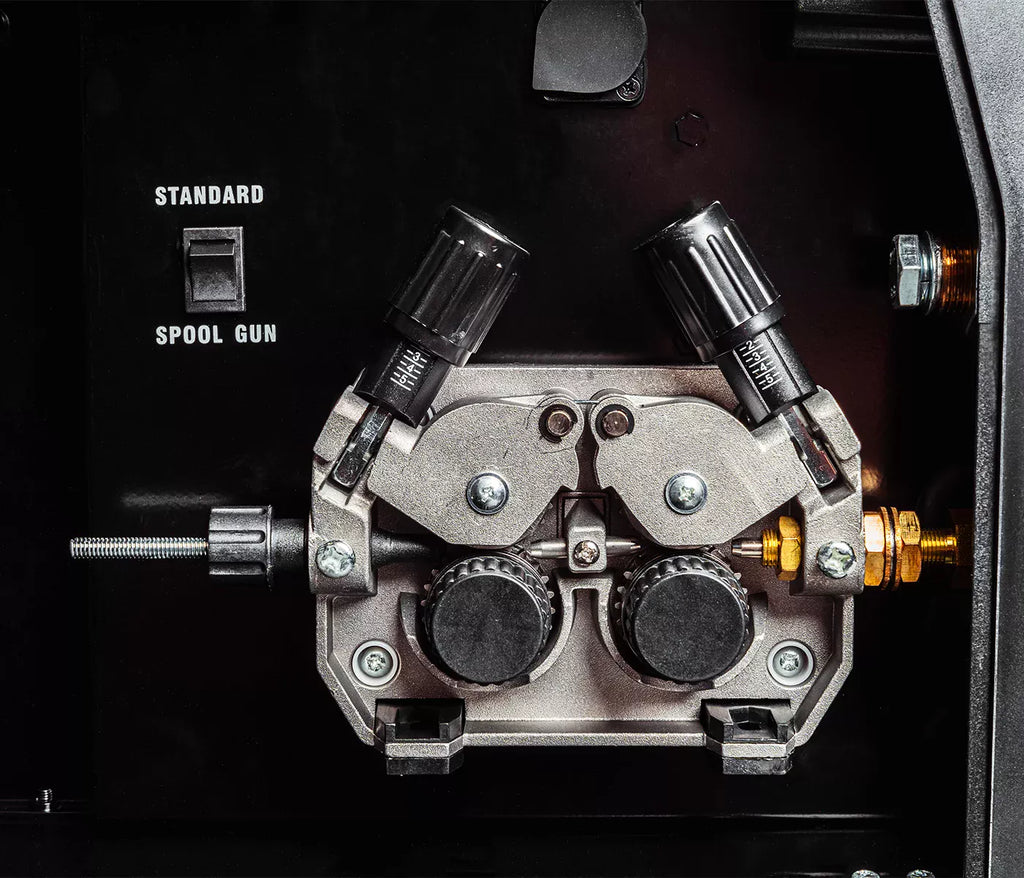

- 2 Roll Wire Feed System
- Suitable for 0.6, 0.8 & 1.0mm Wire
- Fe, AI, Stainless Steel & Flux Cored Wires
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 200C Pulse Inverter Power Source
- M2-3 Mtr MIG Welding Torch
- Gas Hose
- Earth Return Lead & Clamp
