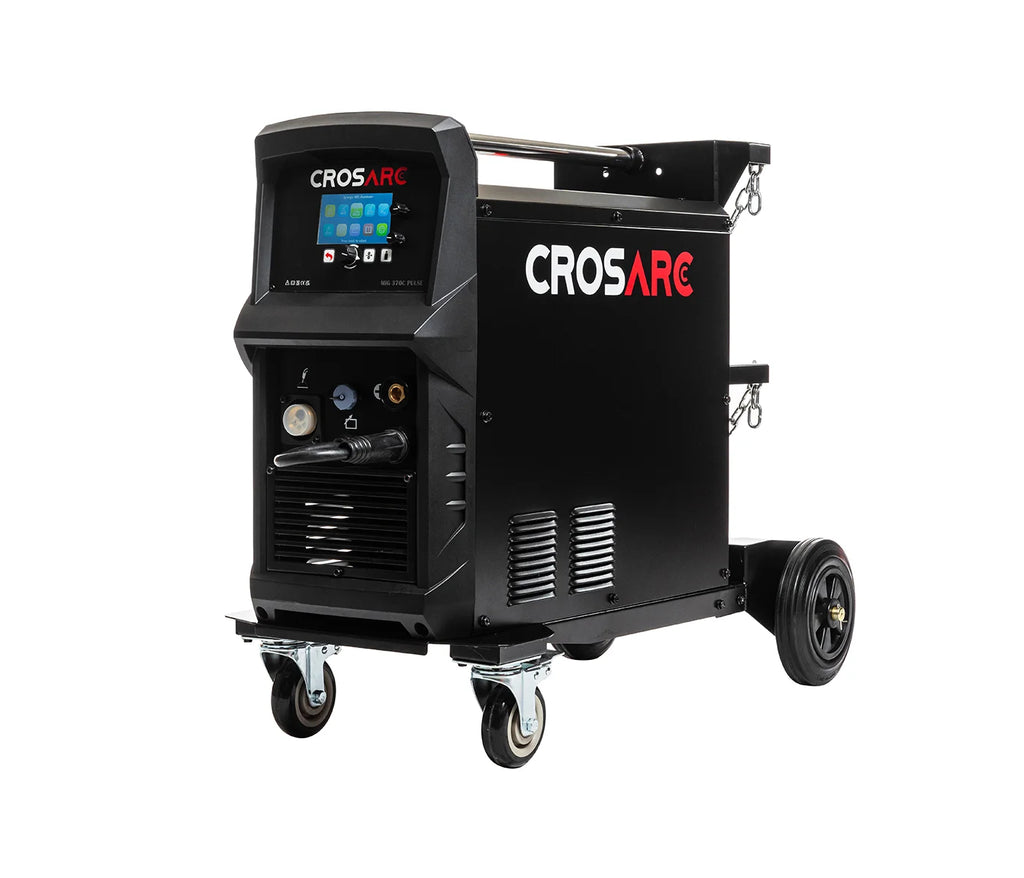

The CROSARC PULSE MIG MULTI PROCESS 370c is an energy-efficient next-generation inverter-based power source.
This exciting new water-cooled compact power source takes welding to the next level, allowing the operator to select one of the many available welding processes quickly and intuitively from the LCD colour display. High welding performance and repeatability in any working industry are a minimum expectation from this outstanding new machine.
| Function | MIG Pulse |
|---|---|
| Current Type | AC/DC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan, Water Cooling Torch Unit |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 20 Amps |
|---|---|
| Wire Speed | 2 - 16m/min |
| Arc Adjustment | -9 soft to +9 hard (default 0) |
| Current Range |
20-350 Amps |
| Duty Cycle | @ 40°C: 350 Amps @ 60% |
| Efficiency | 85% |
| Power Factor at 100% | 0.93 |
| Protection/Insulation Class | IP21/S |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 880 |
|---|---|
| Width | 295 |
| Length | 850 |
| Weight | 72Kg |
Functions
- MIG/MAG
- MMA
- MIG PULSE
- TIG DC LIFT
- HD MIG/MAG
- Synergic or Manual Mode
- Single/Double Pulse Settings
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
- Variable Inductance
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source

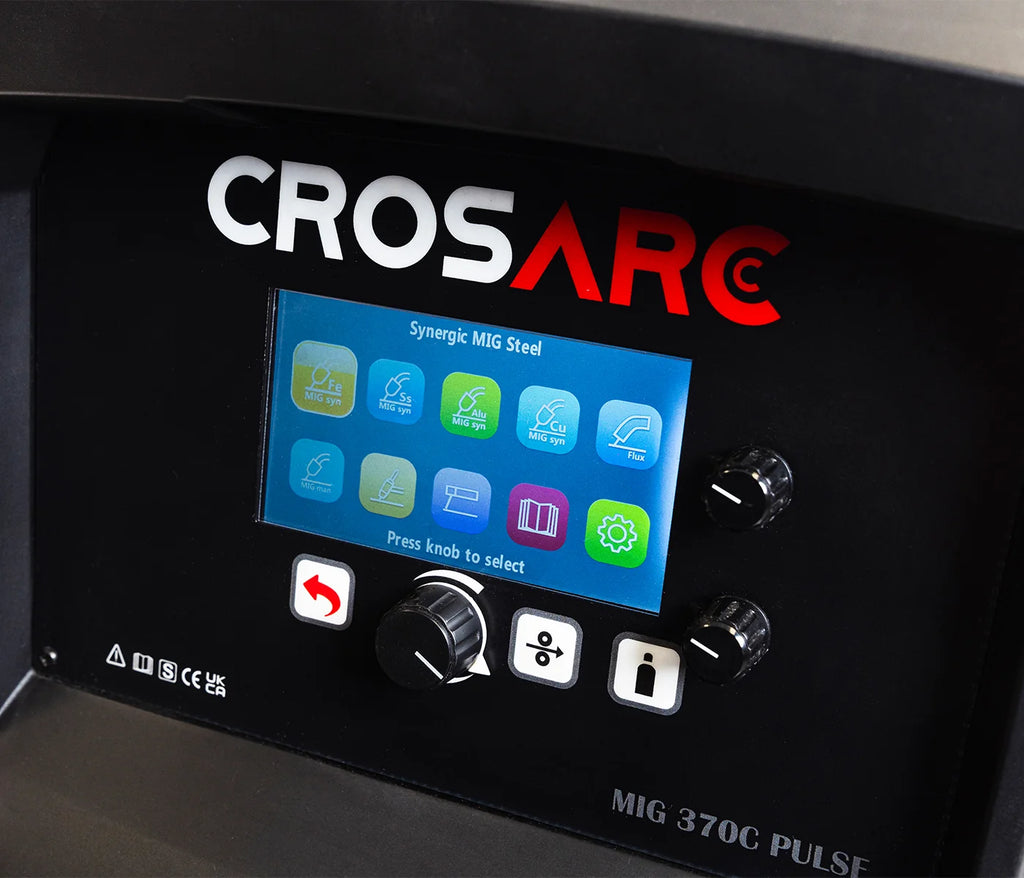

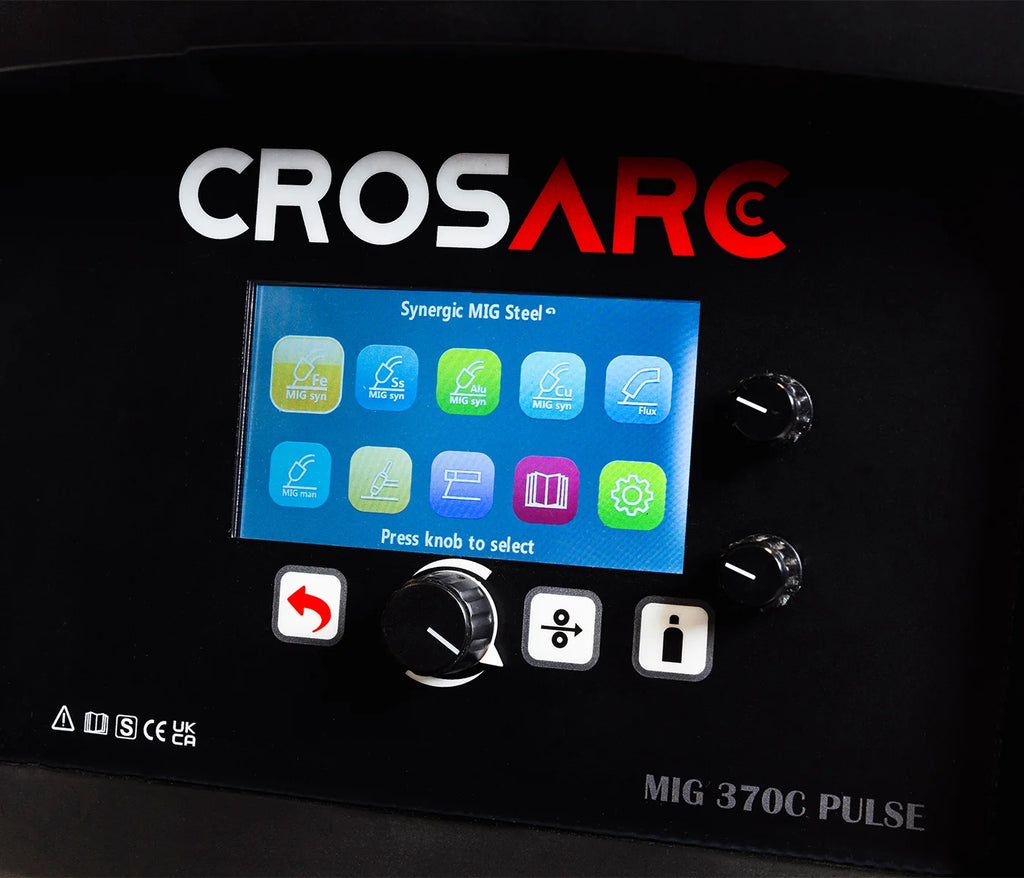

- High Resolution Colour User Interface

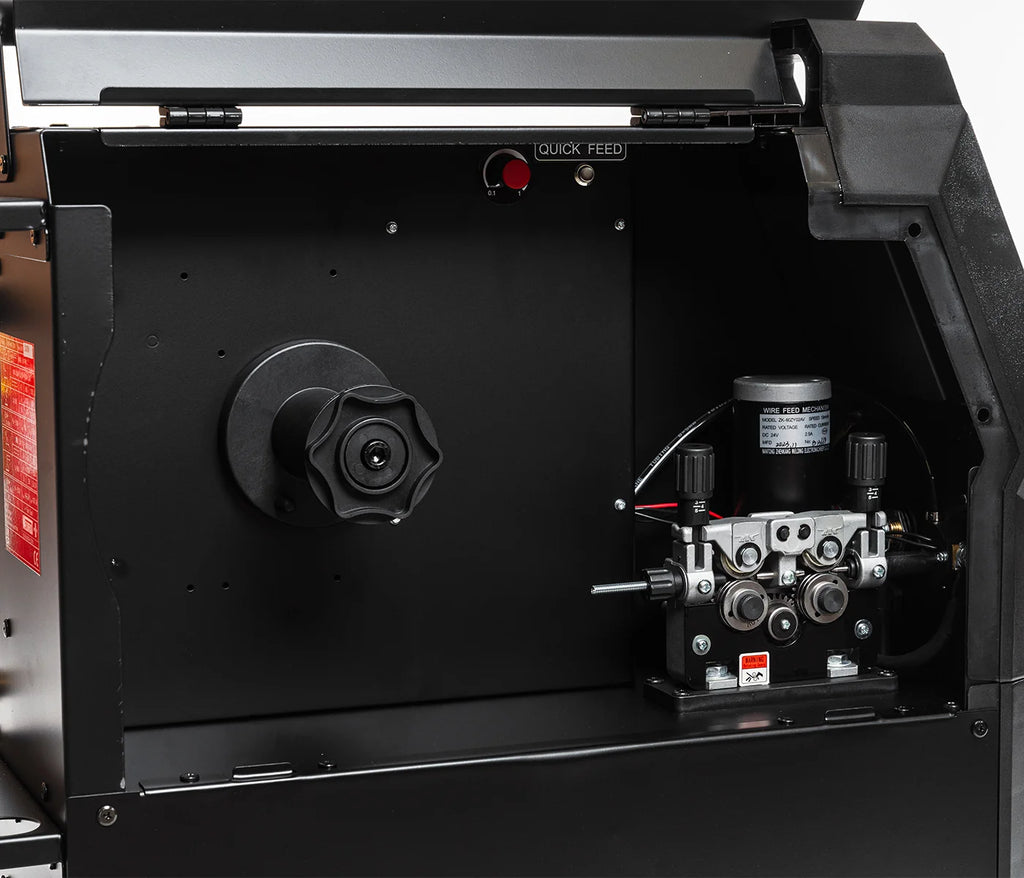

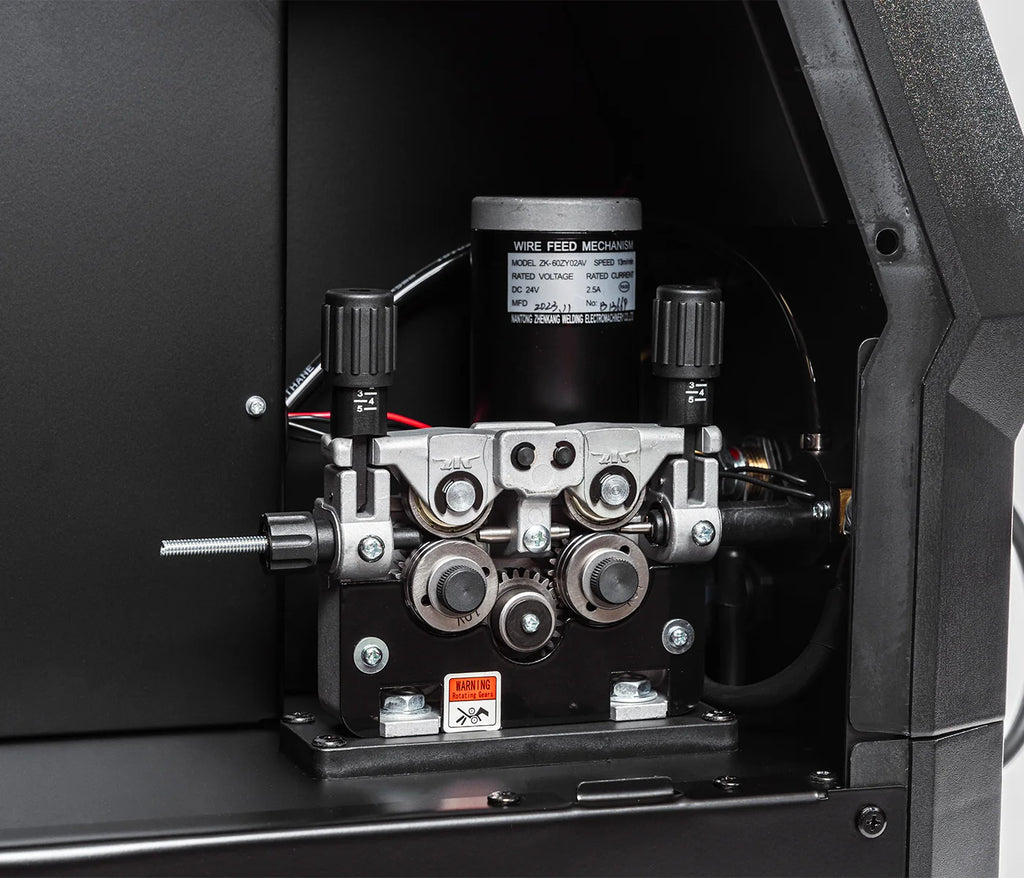

- 4 Roll Wire Feed System
- Suitable for 0.6, 0.8, 1.0 & 1.2mm Wire
- Fe, AI, Stainless Steel & Flux Cored Wires
- Trolley Mounted
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 370C Pulse Inverter Power Source
- M5W-4 Mtr MIG Welding Torch
- Water Cooler
- Gas Hose
- Earth Return Lead & Clamp
