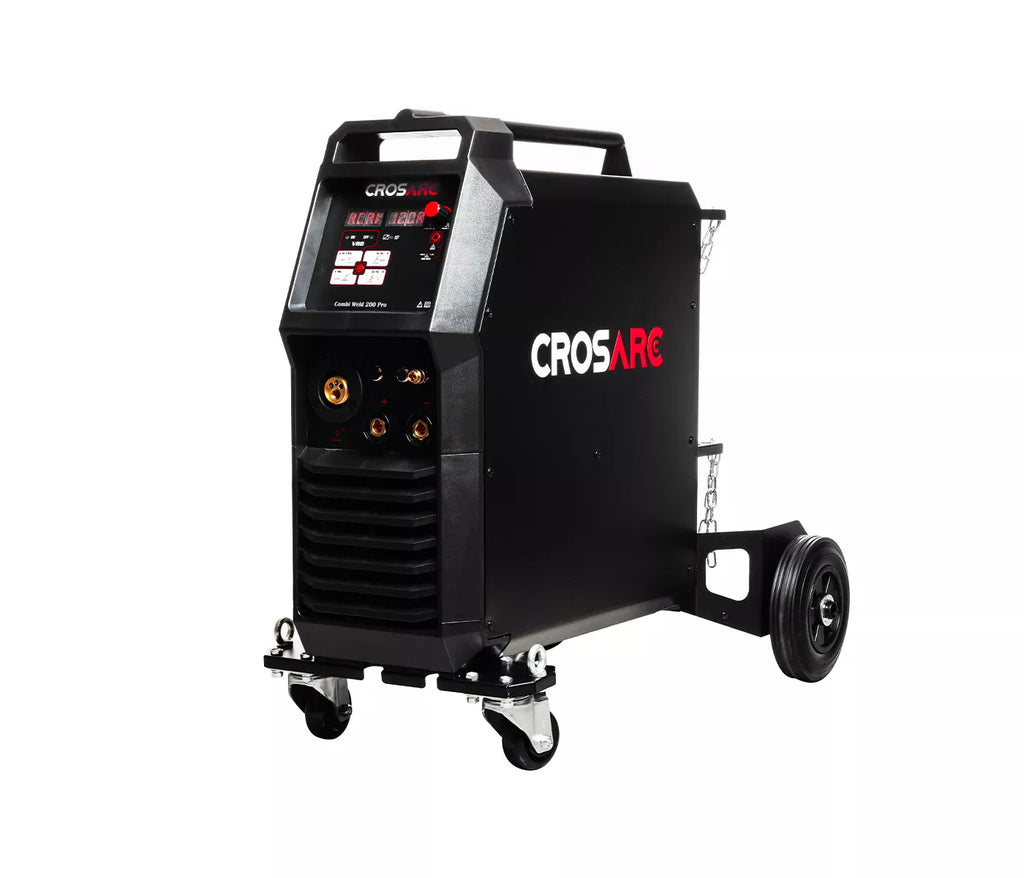

The CROSARC COMBI WELD 200MF PRO is the latest evolution of the modern inverter based multi process power source operating from a 230v mains supply.

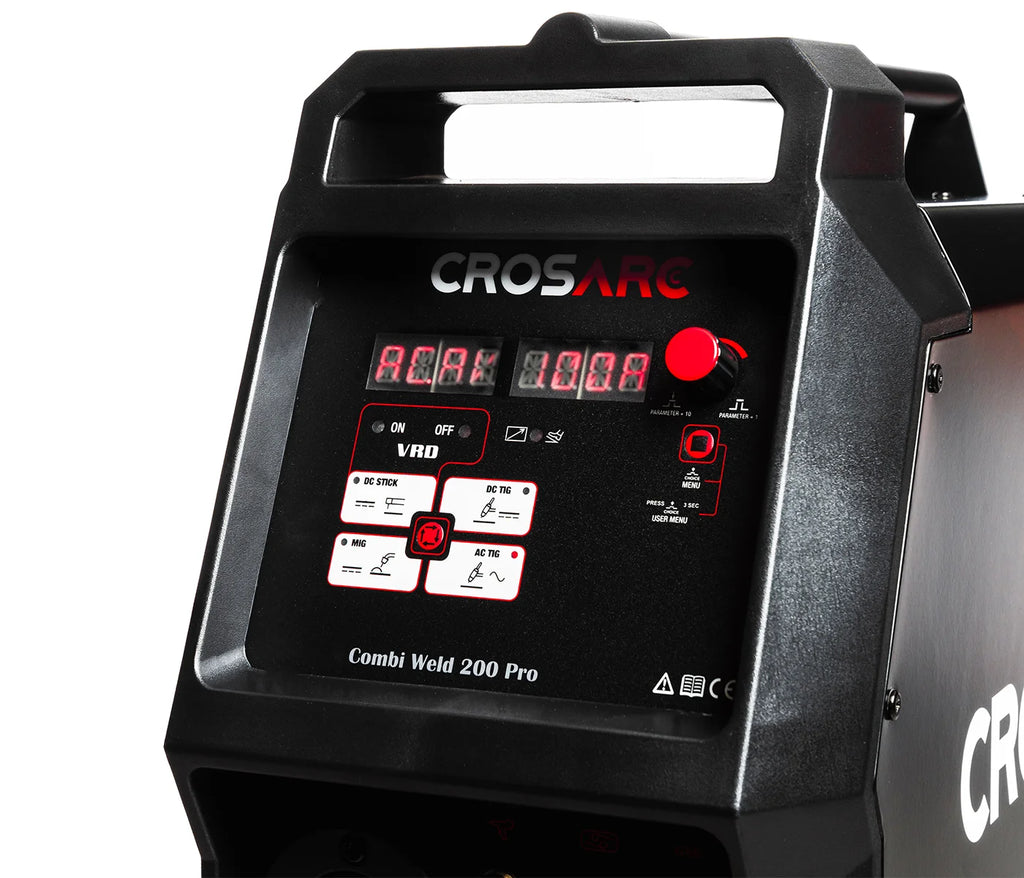

This stunning new welding system offers MIG/MAG, TIG AC/DC with HF START OR LIFT & MMA welding processes. Professional results are easily obtained from this next generation power source, allowing the operator full parameter control and adjustment via the intuitive control panel. The CROSARC COMBI WELD 200MF PRO is supplied with a sturdy transportation trolley and is the perfect solution for a wide range of site, workshop and training applications.
| Function | MIG Multi-function |
|---|---|
| Current Type | AC/DC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Wire Speed | 2 - 16m/min |
| Current Range |
|
| Duty Cycle | MIG @ 40°C: 200 Amps @40% / IG @ 40°C: 200 Amps @40% / MMA @ 40°C: 200 Amps @40% |
| Efficiency | 80% |
| Power Factor at 100% | 0.73 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 750 |
|---|---|
| Width | 375 |
| Length | 725 |
| Weight | 40Kg |
Functions
- MIG/MAG
- MMA
- TIG AC/DC HF/LIFT
- 2T/4T
- Burn Back Adjustment
- Variable Inductance
- Pre/Post Flow Gas Adjustment
- Up/Down Slope Adjustment
- AC Frequency Control
- AC Balance Control
- Start & End Current Adjustment
- Pulse Function
- Pulse Frequency Control
- Hot Start
- Arc Force
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source
- Digital Volt / Amp Display
- 4 Roll Wire Feed System
- Suitable for 0.6, 0.8 & 1.0mm Wire
- Will Accept 5 Kilogram Reel’s
- Suitable for 1.6 – 4mm MMA Electrodes
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- Combi Weld Power Source
- M2-4 Mtr MIG Welding Torch
- Parker DGT26FX-12 TIG Welding Torch
- Foot Pedal
- Gas Hose
- Earth Return Lead & Clamp
- 3 Mtr MMA Lead
- VRD Safety Device
- 16A Plug
