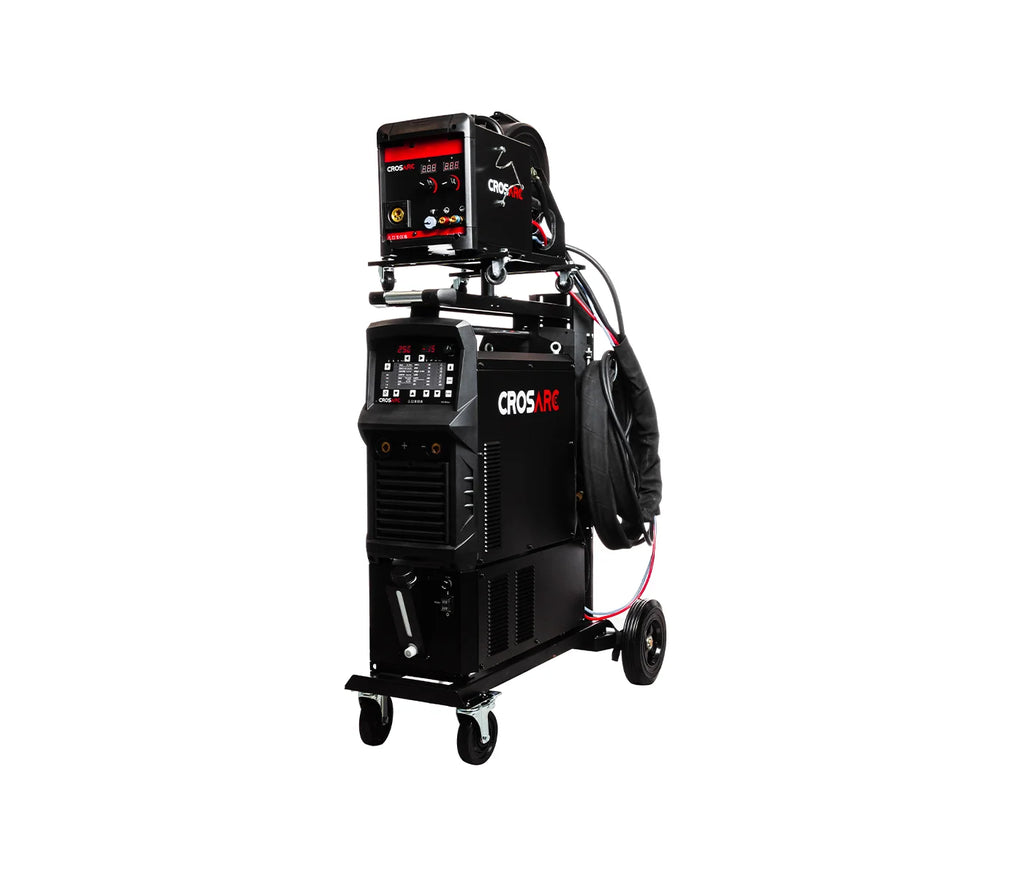

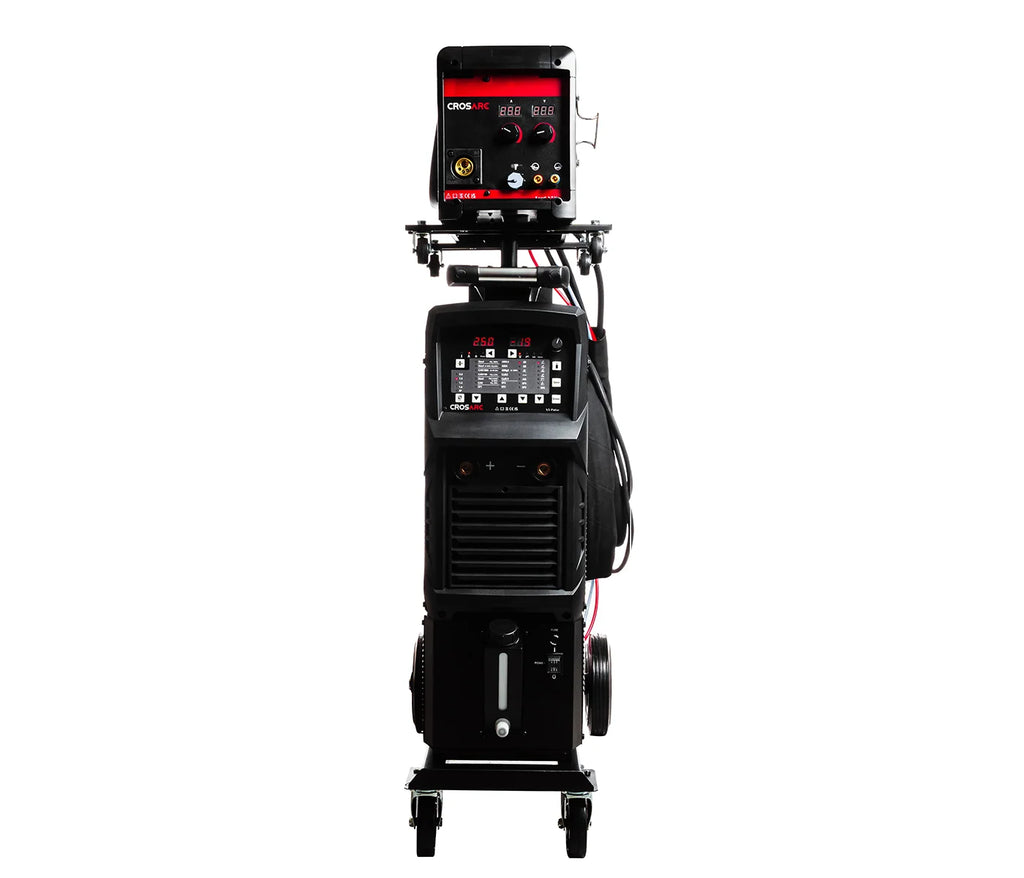

The CROSARC X5 Pulse MIG multi-process is a premium latest technology IGBT inverter power source, taking MIG and multi process welding to the next level.
The X5 Pulse sets a new benchmark in industrial water-cooled MIG welding machines, giving outstanding performance and reliability with perfect results as standard. The professional user-friendly control panel allows easy selection of the required process and achieves stunning results on any industrial application.
| Function | MIG Pulse |
|---|---|
| Current Type | AC/DC |
| Voltage | 400v |
| Cooling | Power source Integrated Fan |
| Approvals | CE / UKCA |
| Warranty | 3 Years |
Technical Specification
| Input Current | 24 Amps |
|---|---|
| Wire Speed | 0 - 24m/min |
| Arc Adjustment | -9 soft + 9 hard (default 0) |
| Current Range |
MIG: 30-500 Amps |
| Duty Cycle | @ 30°C: 500 Amps @ 60% |
| Efficiency | 85% |
| Power Factor at 100% | 0.90 |
| Protection/Insulation Class | IP23/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 685 |
|---|---|
| Width | 300 |
| Length | 560 |
| Weight | 53Kg |
Functions
- MIG/MAG
- MMA
- MIG PULSE
- TIG DC LIFT
- Synergic or Manual Mode
- Single/Double Pulse Settings
- Burn Back Adjustment
- Wire Inching
- 2T/4T
- Gas Purge Function
- Variable Inductance
- Job Save Function
Features
- Latest IGBT Multi Process Inverter Power Source

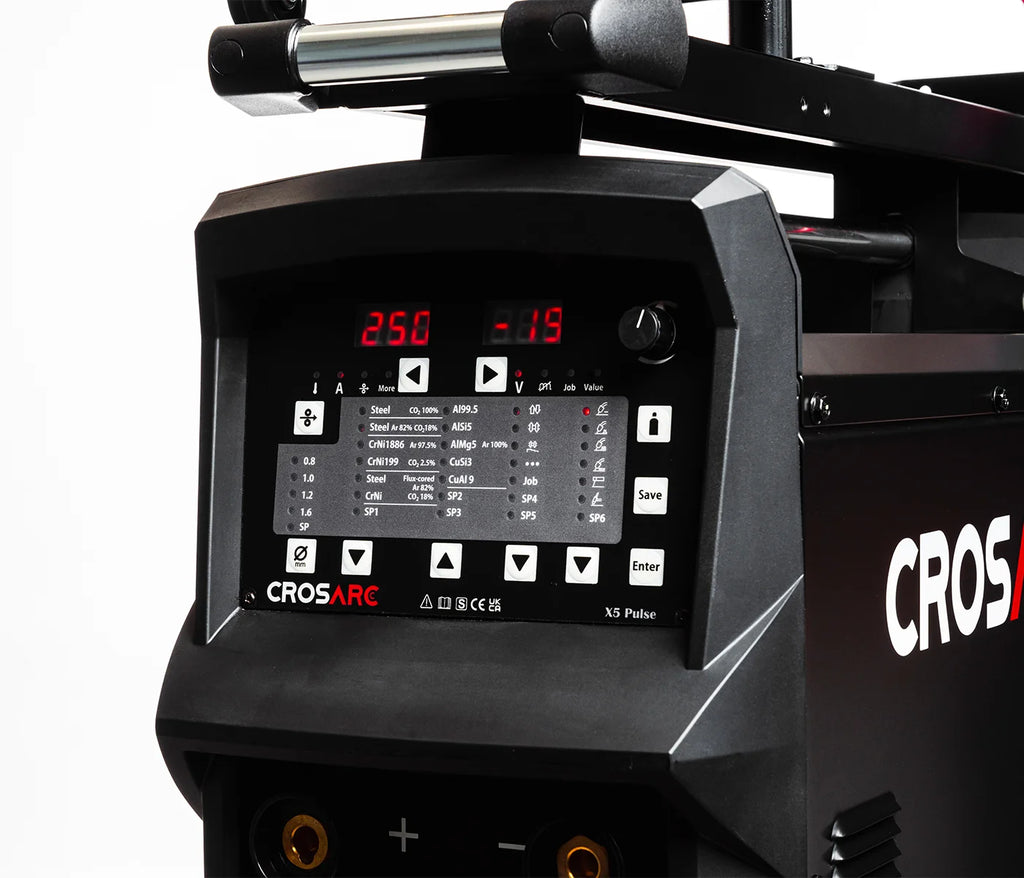

- Digital Volt / Amp Display

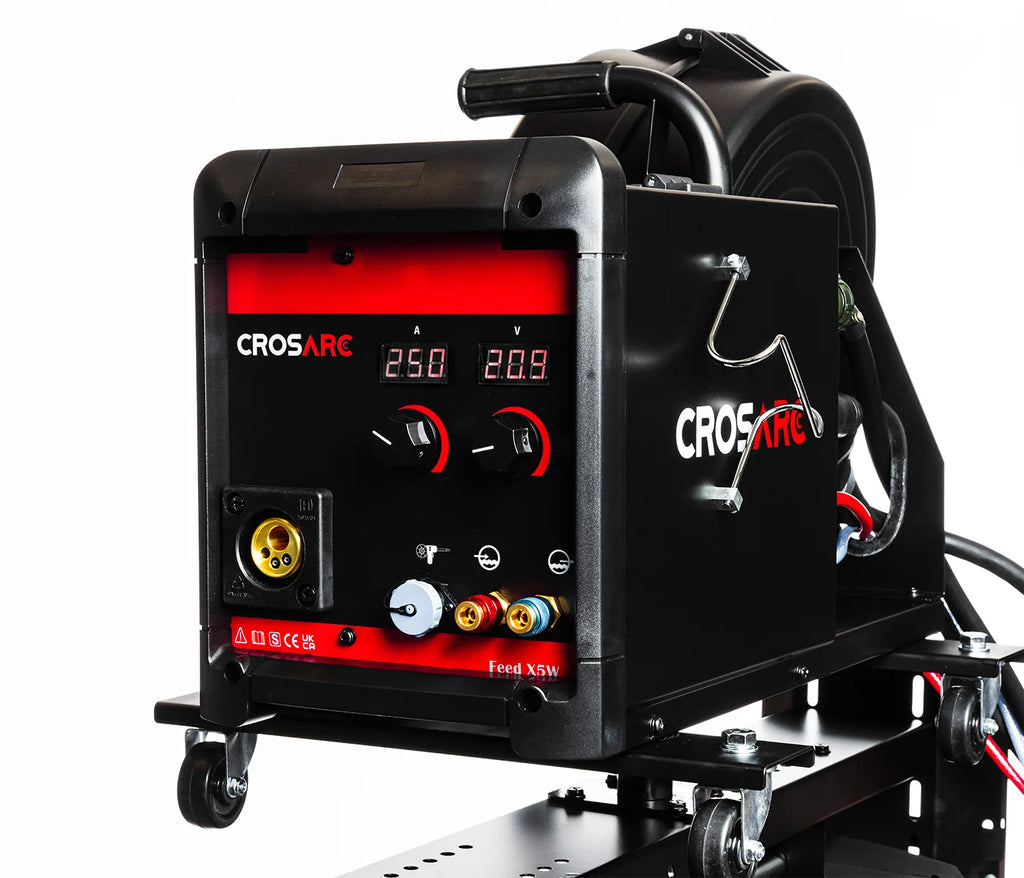

- 4 Roll Wire Feed Unit
- Suitable for 0.6, 0.8, 1.0, 1.2 & 1.6mm Wire
- Fe, AI, Stainless Steel & Flux Cored Wires
- Trolley Mounted
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- X5 Pulse Inverter Power Source
- M5W-4 Mtr MIG Welding Torch
- Water Cooler
- Gas Hose
- Earth Return Lead & Clamp
