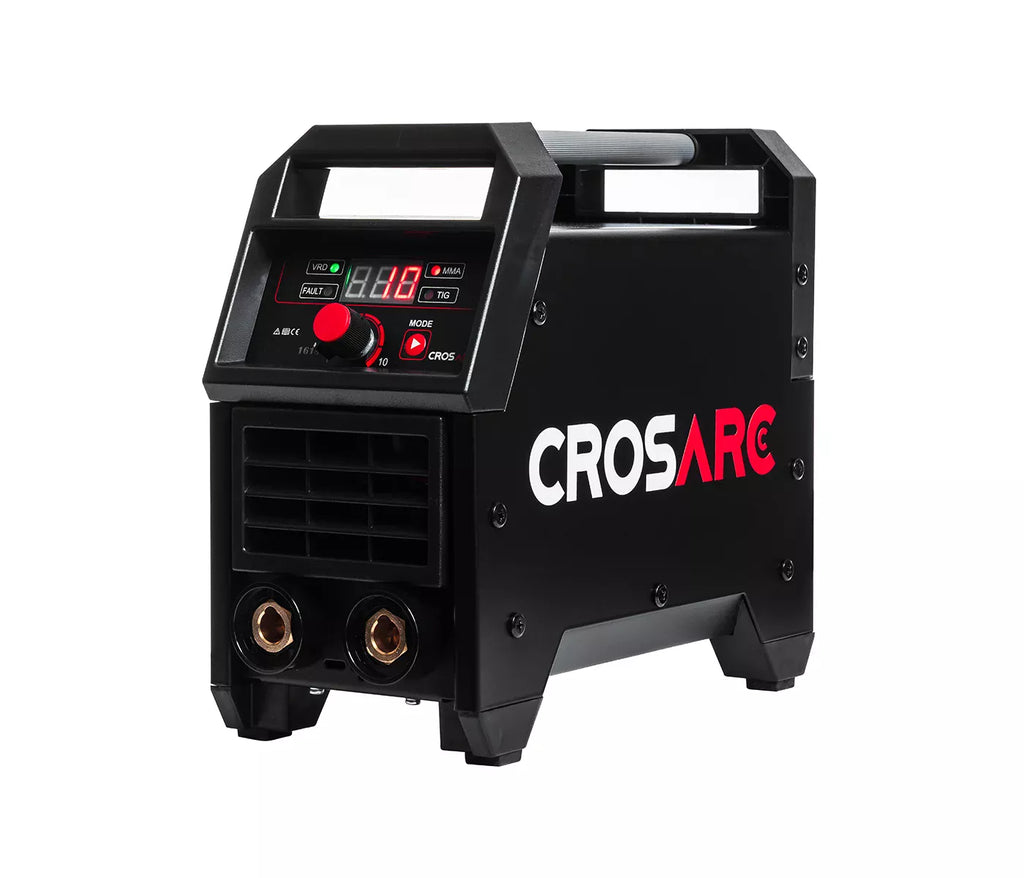

The CROSARC MMA 161s is a highly portable latest technology inverter based DC multi process power source operating from a 230v mains supply.
This advanced DC MMA welding machine also offers TIG in DC with lift, it produces excellent arc characteristics with a range of electrodes and is the perfect solution to light fabrication and maintenance applications.
| Function | MMA |
|---|---|
| Current Type | AC/DC |
| Voltage | 230v |
| Cooling | Power source Integrated Fan |
| Approvals | CE |
| Warranty | 3 Years |
Technical Specification
| Input Current | 16 Amps |
|---|---|
| Current Range |
15-160 Amps |
| Duty Cycle | @ 40°C: 160 Amps @ 25% |
| Efficiency | 80% |
| Power Factor at 100% | 0.73 |
| Protection/Insulation Class | IP21/F |
| Generator Compatible | Yes |
| Conforms to |
EN IEC 60974-10:2021 |
Dimensions (mm)
| Height | 450 |
|---|---|
| Width | 280 |
| Length | 320 |
| Weight | 8.5Kg |
Functions
- MMA
- TIG DC LIFT
Features
- Latest IGBT Multi Process Inverter Power Source

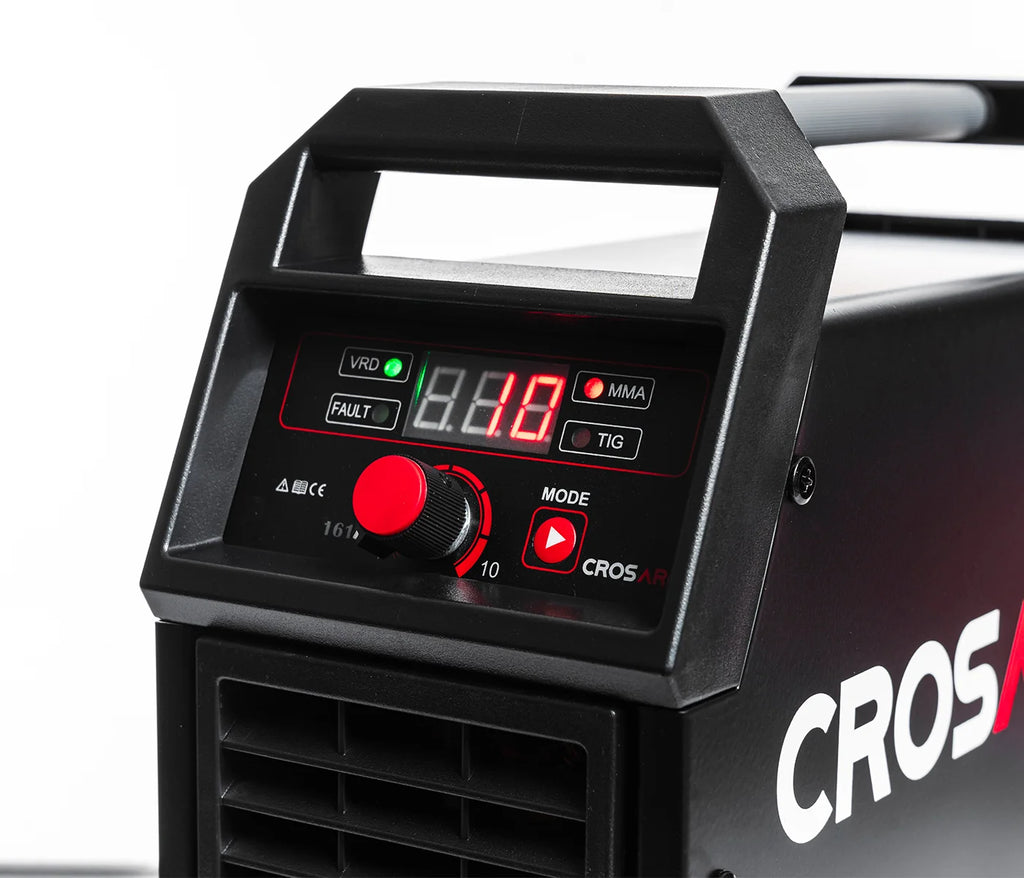

- Digital Amp Display
- Suitable for 1.6 – 3.2mm MMA Electrodes
- 35-50mm Cable Sockets
- Portable
- Generator Friendly
- Easy Set Up & Operation
What’s Included In The Box?
- Owner’s Manual
- 161S Inverter Power Source
- Earth Return Lead & Clamp
- 3 Mtr MMA Lead
- VRD Safety Device

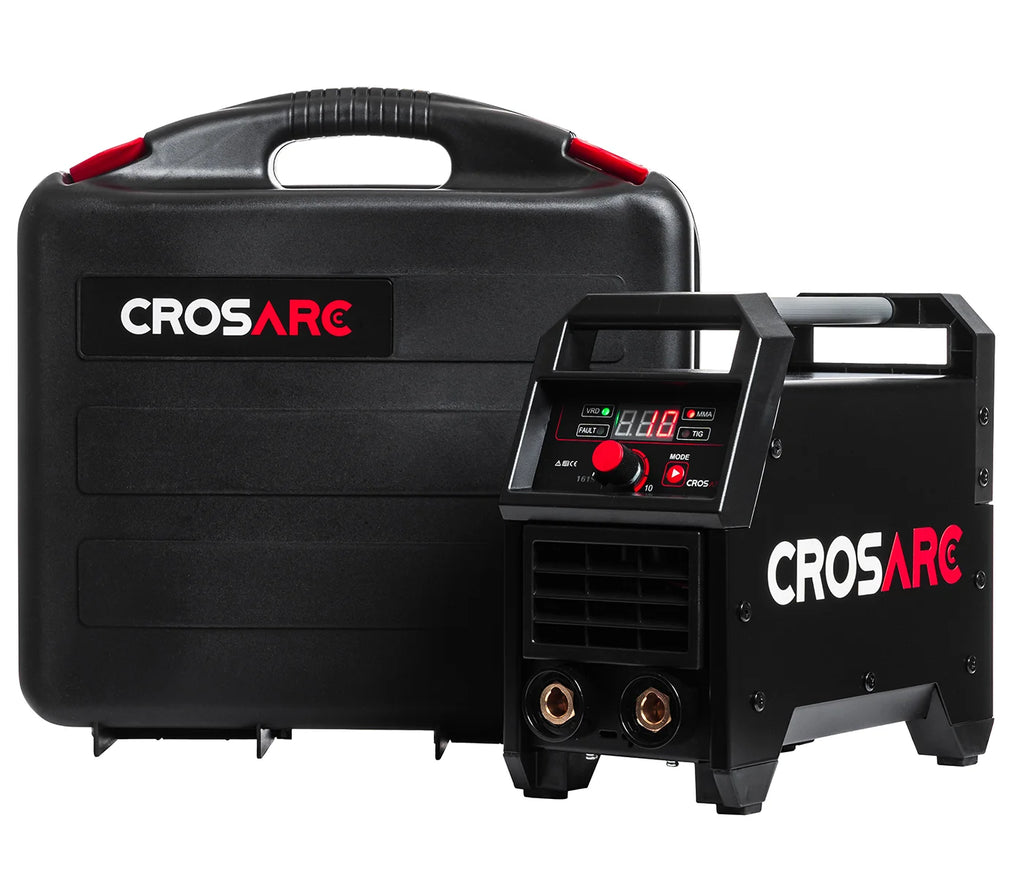

- Carrying Case
- 13A Plug
