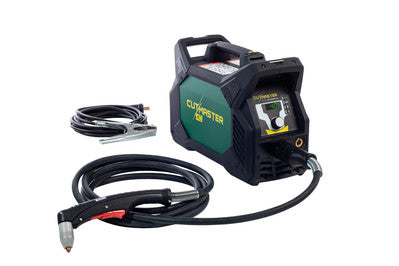

Cutmaster 40 power source, 5 m hose package with SL60 70° torch
Maximum Portability
Cutmaster 40 features an all-new ergonomic design for the best portability in its
class – without sacrificing performance. It weighs only 10 kg, with multiple handles
and carrying points that help it feel even lighter.
Greater Flexibility
With an incredible arc stretch, Cutmaster 40 can be used in unusual cutting positions
while maintaining cut quality. It comes with a complete range of consumables out of
the box for cutting and gouging, and it runs on 200–240 V power with automatic amperage
adjustment.
Incredible Performance
Cutmaster 40 has remarkable power for a machine of its size. The legendary 1TorchTM
allows for a best-in-class 12 mm pierce and cut capacity and 16 mm max sever, with a
35% duty cycle at 40 A.
Serious Durability
Cutmaster 40’s proven industrial-grade housing ensures it can keep performing in all
conditions. With an IP23 all-weather rating, Cutmaster 40 is ready to work where you
need it to – rain or shine, day in and day out.
Features
• 35% Duty Cycle at 40A and 60% Duty Cycle at 30A;
built for portability and durability with an integral
multi-handle design.
• SL60 1Torch with ATC® (Advanced Torch Connector).

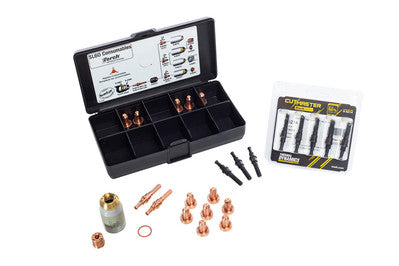

• Cutmaster Black Series electrodes included as
standard for up to 60% longer life of consumable parts
• 12 mm recommended cut and pierce capacity with a
16 mm maximum severance capacity
• Automotive Bodies
• Industrial and General
Fabrication
• General Manufacturing
• HVAC
• Repair and Maintenance
• Training Schools
Performance
• True Cut - 12 mm
• Severance Cut - 16 mm
• Pierce Rating - 12 mm
• Max Amperage Output - 40A
Dimensions
• W200 mm x H320 mm x
D460 mm
Weight
• 10 kg
Torch
• SL60
• Air Pressure - 6.2 - 8.6 bar
• Air Flow - 142 - 235l/m
Input Voltage - 200-240 VAC, 50-60Hz, 1ph
Duty Cycle (40º C)
• 35% at 40A
• 60% at 30
