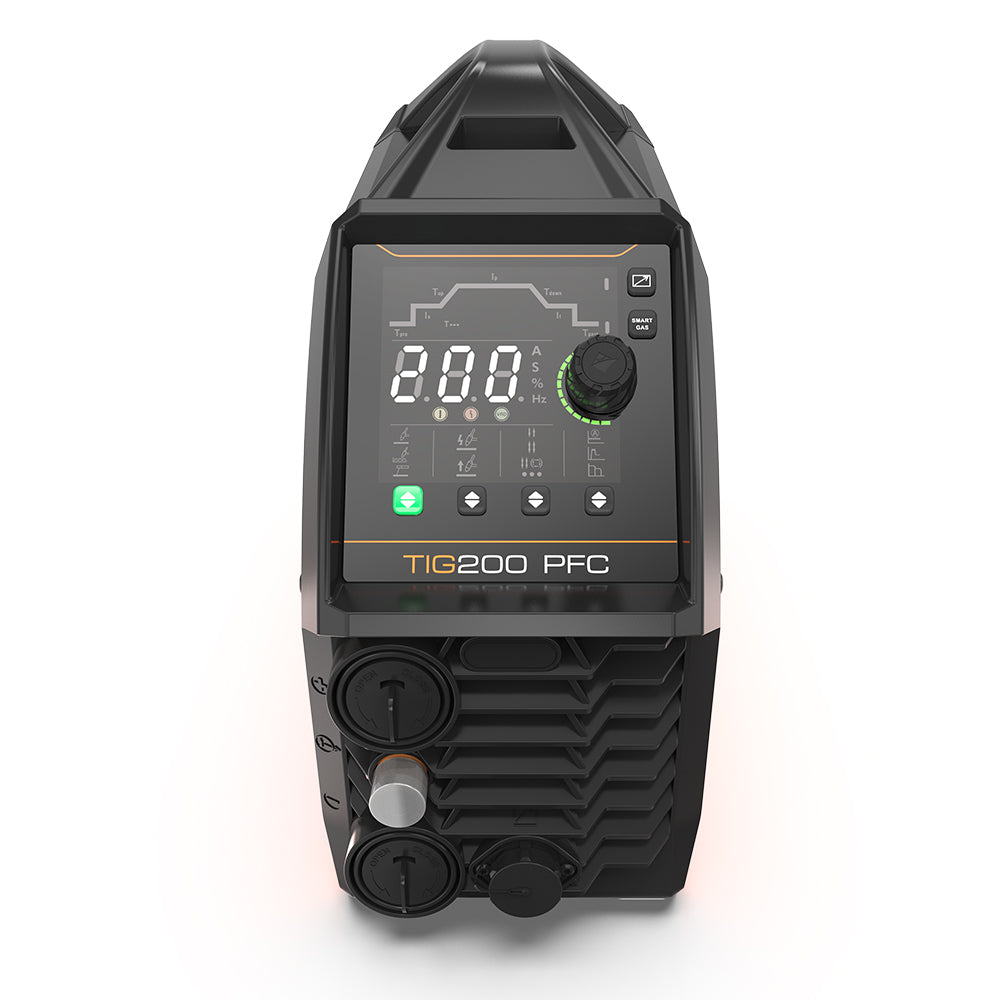

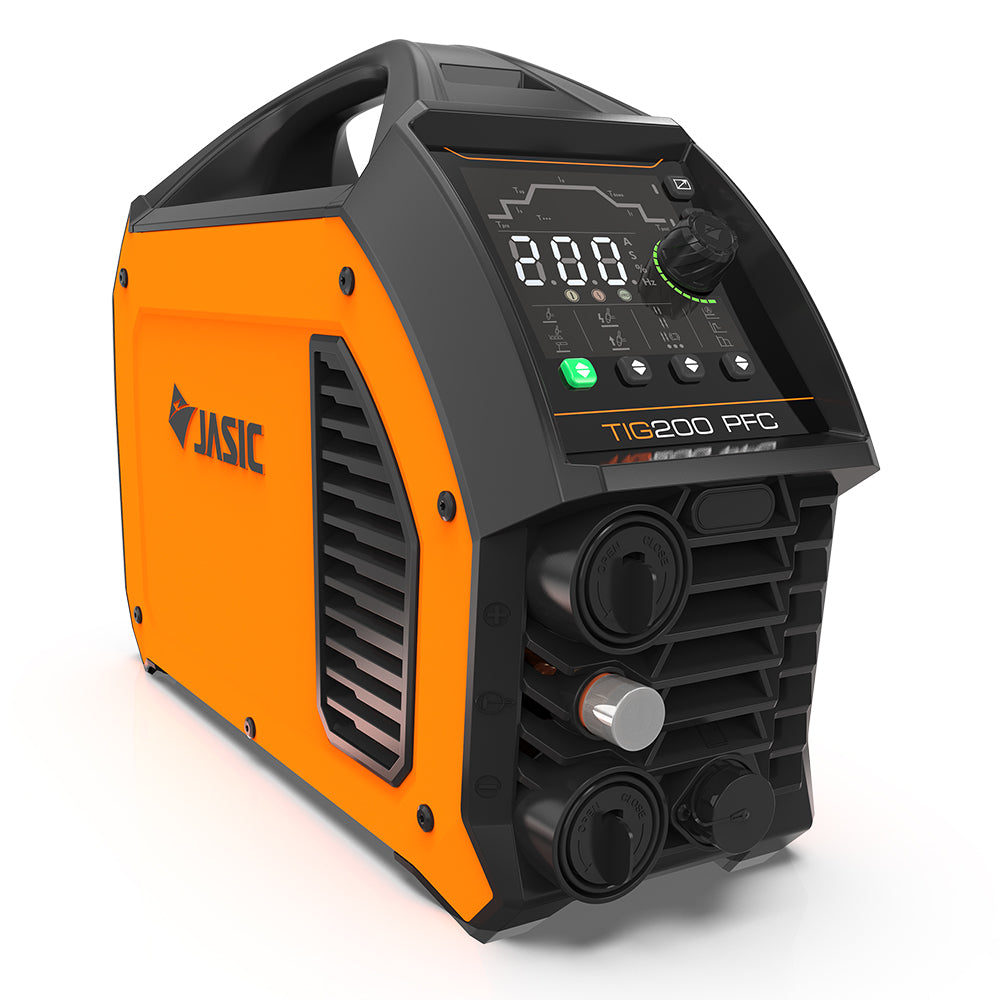

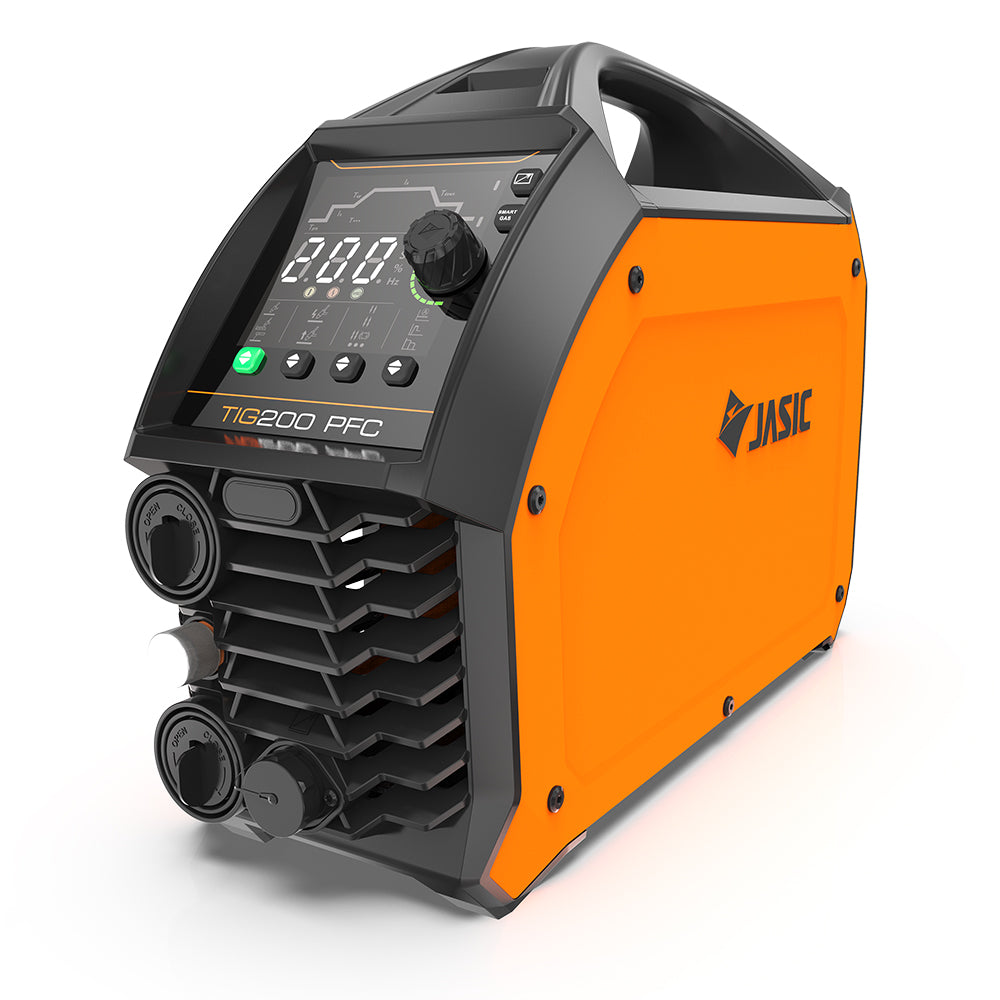

Jasic ET-200 EVO TIG 200 PFC Inverter c/w Case & Lead Set
The Jasic EVO ARC 200 PFC is a compact yet powerful inverter welder designed for reliable MMA and Lift TIG applications. With advanced ClearVision technology, Intelligent Synergic Control, and generator-friendly power factor correction, this machine delivers consistent performance for professionals and serious hobbyists alike.

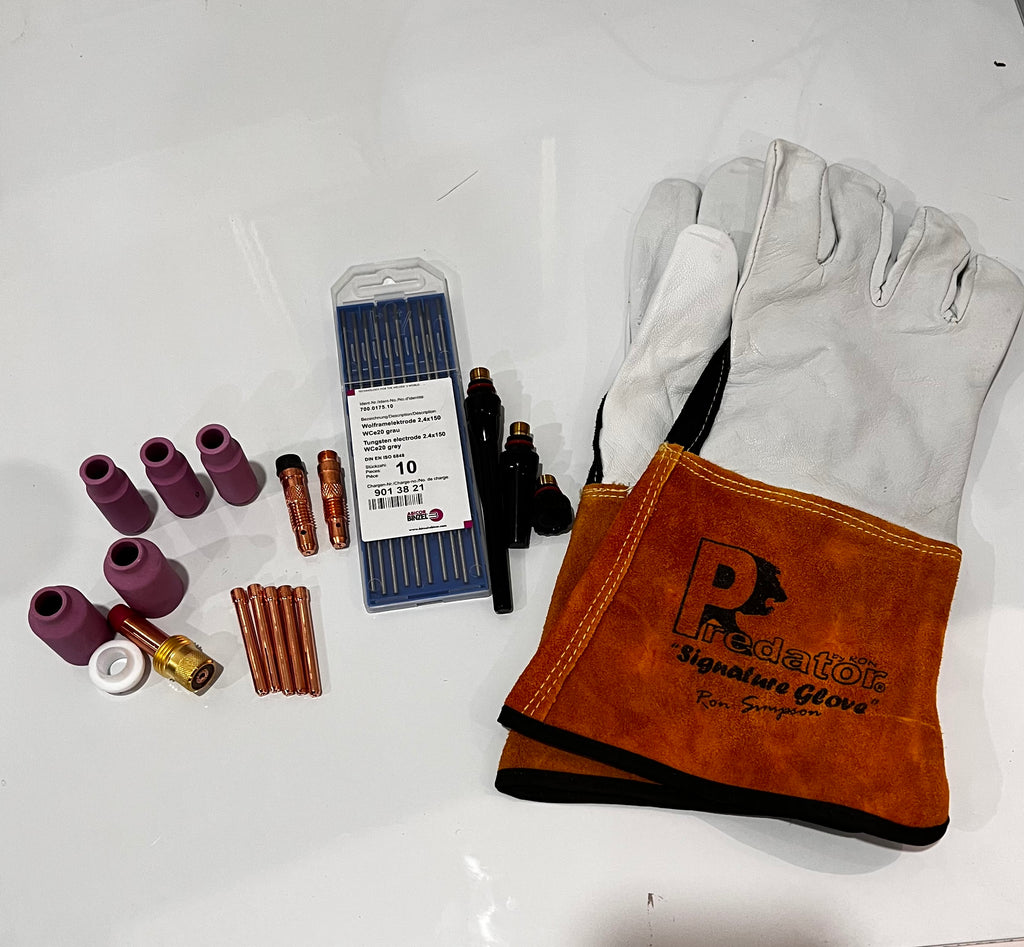

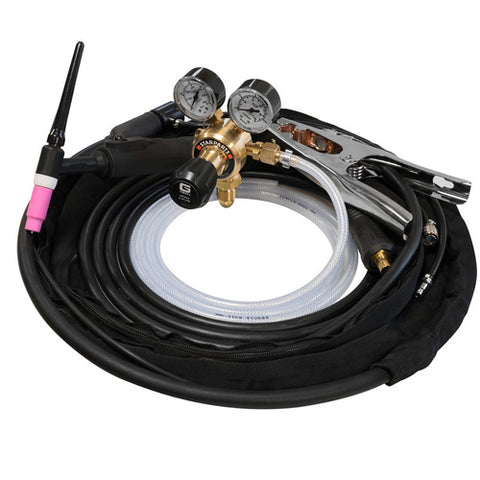

All Tig Packages incl. Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungsten's, Pair of Tig Gloves, 230V 16Amp Plug with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
Features
- Rugged, ergonomic design
- ClearVision technology
- Adaptable wide voltage range
- Dash-Arc
- Smart Lift TIG
- Full featured DC TIG parameters
- Flexible remote control solutions (optional)
- Power factor correction (PFC), generator friendly
- Quick factory reset; auto sleep mode
- ABAP: Active Balancing Air Passage
- Smart gas for optimised shielding gas consumption
- Fan on demand
- Voltage Reduction Device (VRD)
- Key power electronic component protection
- Overcurrent and overheat protection

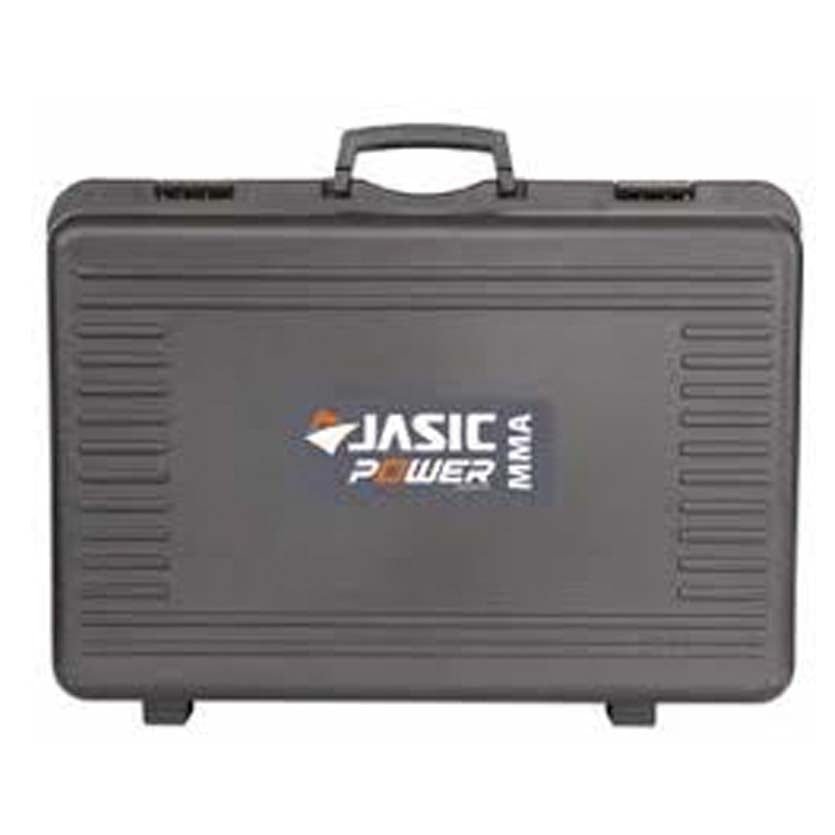

- Complete with protective case
Specifications
TIG
- Rated input current: 29.7A (AC 115V) / 19.5A (AC 230V)
- Ieff: 14.9A (AC 115V) / 9.8A (AC 230V)
- Rated input power: 3.4kVA (AC 115V) / 4.5kVA (AC 230V)
- Current range: 5-160A (AC 115V) / 5-200A (AC 230V)
- Rated duty cycle @ 40ºC: 25%
MMA
- Rated input current: 31.6A (AC 115V) / 25.6A (AC 230V)
- Ieff: 15.8A (AC 115V) / 12.8A (AC 230V)
- Rated input power: 3.7kVA (AC 115V) / 5.9kVA (AC 230V)
- Current range: 10-120A (AC 115V) / 10-180A (AC 230V)
- Rated duty cycle @ 40ºC: 25%
- Efficiency: 84%
- Power factor: 0.99
- Idle state power MMA: 33W TIG: 7W
- Protection class: IP23S
- Insulation class: H
- Dimensions L x W x H: 453 x 150 x 313mm
- Weight: 8.97Kg
- Recommended generator size: 5kVA 7kVA
