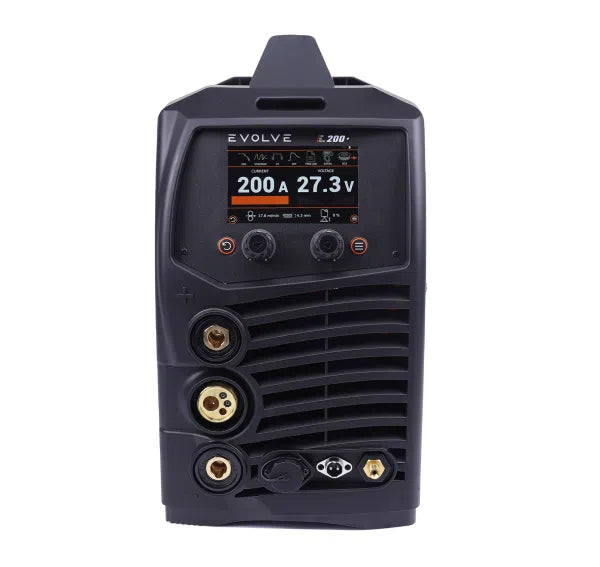

Jasic Evolve 200 Multi Process Inverter ZXEV-200P 200A 230V
All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
• Single and double pulse synergic MIG
• High frequency LIFT DC pulse TIG
• Hard Core MIG Torch with 4 button digital control
• MMA mode
• 4 roll wire feeder
• Wi-Fi enabled firmware updates

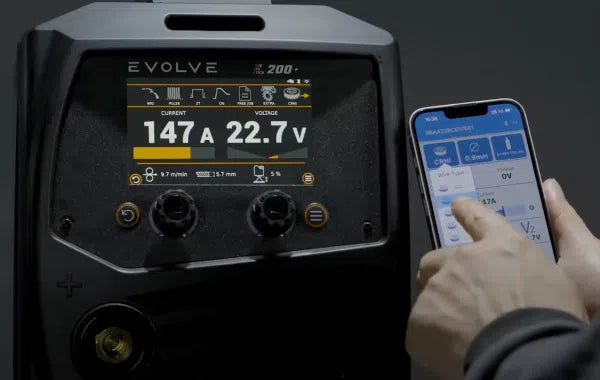

• App control
• Digital control MIG torch
• 100+ synergic programs
• 100 job memory storage
• 2T/4T Spot trigger control
• IP23S
• On demand cooling
• ABAP: Active Balancing Air Passage
• Fan on demand
• Ideally suited for light industrial fabrication work
• Generator friendly * must have AVR
Single & Double Pulse MIG
Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.
A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way, but with a second background current to add even more control over the arc.
Technical Data
Input Voltage 1ph 230Vac +/-15% 50/60Hz
Ieff (A) 15.9
No Load Voltage 77V
Idle State Power <50W
Current Range MIG 40-200A TIG 5-200A MMA 20-180A
Duty Cycle @ 40oC
Mig 25% @ 200A 60% @ 101A 100% @ 78A
Tig 25% @ 200A 60% @ 116A 100% @ 70A
MMA 25% @ 180A 60% @ 91A 100% @ 70A
Wire Size Range 0.6-1.2mm
Wire Spool Size D200/5KG
Protection/Insulation Class IP23S/H
Minimum Generator (kVA)* 11.0
Dimensions ( L x W x H mm) 605 x 230 x 400
Weight (Kg) 17
