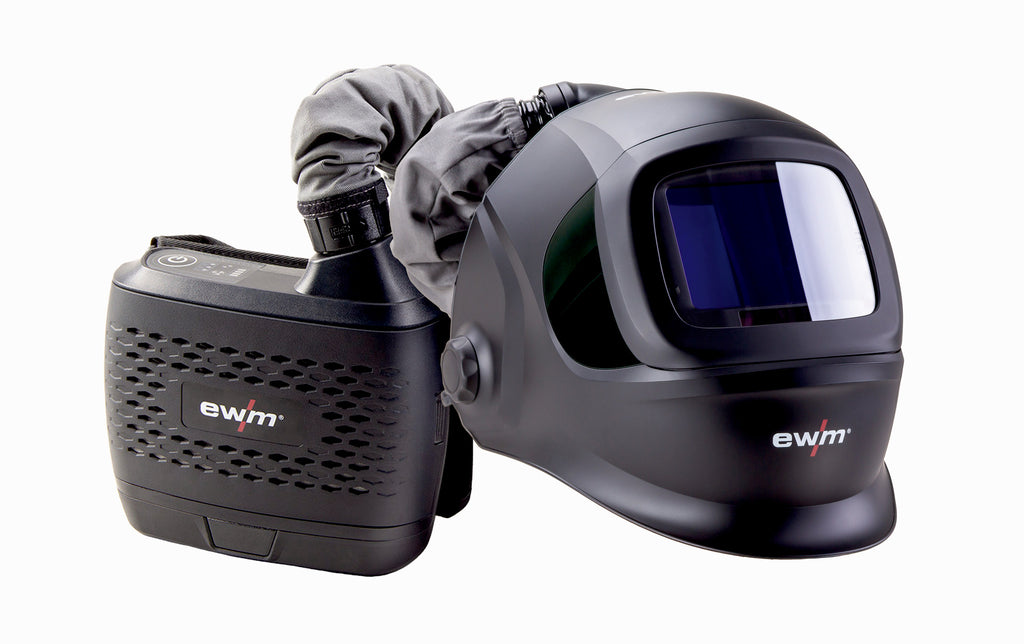

EWM 398-120002-00000 Powershield Guardian ECLIPSE AIR Set

EWM  398-120002-00000 Powershield Guardian ECLIPSE AIR Set

Automatic welding helmet including fresh air system suitable for MIG/MAG, pulse, TIG and MMA, microplasma welding, as well as grinding and cutting

• LED display
• Four built-in arc sensors
• Fan unit (with two speed settings) included in the delivery
• Solar cell, 2 x replaceable CR2450 lithium batteries
• High degree of breathing protection (EN12941 TH3)
• Advantages of the fan unit:
• Fan unit with one-touch operation
• Control lamps on the screen indicate machine status
• Visible, audible and vibrating automatic alarm function to ensure safety
• High degree of breathing protection (EN 12941 TH3)
• Filter offers protection against dust, pollutants, fine dust and other impurities
• Fan features two speed settings: Low speed 170+ Ipm, high speed 210+ Ipm
• Technical data are available for fan unit POWERSHIELD GUARDIAN VENT (398-017813-00000)

• Applications:
• TIG-DC and TIG pulse (excellent TIG reaction at low current), MIG/MAG, MIG/MAG pulse, plasma cutting/welding, grinding, oxy-fuel welding/cutting
• Not suitable for laser beam welding
• Scope of delivery (ready to weld):
• 1 x Guardian CLEAN welding helmet incl. connection to fan unit
• 1 x Guardian VENT fan unit with belt and shoulder strap
• 5 x front cover lens
• 2 x inside cover lens
• 2 x button cells
• 1 x face seal
• 1 x hose for the air supply to the helmet incl. textile hose cover
• 1 x AIR FLOW METER air volume test unit
• 1 x lithium-ion battery and charger
• Operating instructions
