EWM 398-120003-00000 Powershield Guardian CLEAN Set
- LED display
- Four built-in arc sensors
- Fan unit (with two speed settings) included in the delivery
- Solar cell, 2 x replaceable CR2450 lithium batteries
- High degree of breathing protection (EN12941 TH3)
- Advantages of the fan unit:
- Fan unit with one-touch operation
- Control lamps on the screen indicate machine status
- Visible, audible and vibrating automatic alarm function to ensure safety
- High degree of breathing protection (EN 12941 TH3)
- Filter offers protection against dust, pollutants, fine dust and other impurities
- Fan features two speed settings: Low speed 170+ Ipm, high speed 210+ Ipm
- Technical data are available for fan unit POWERSHIELD GUARDIAN VENT (398-017813-00000)
- Applications:
- TIG-DC and TIG pulse (excellent TIG reaction at low current), MIG/MAG, MIG/MAG pulse, plasma cutting/welding, grinding, oxy-fuel welding/cutting
- Not suitable for laser beam welding

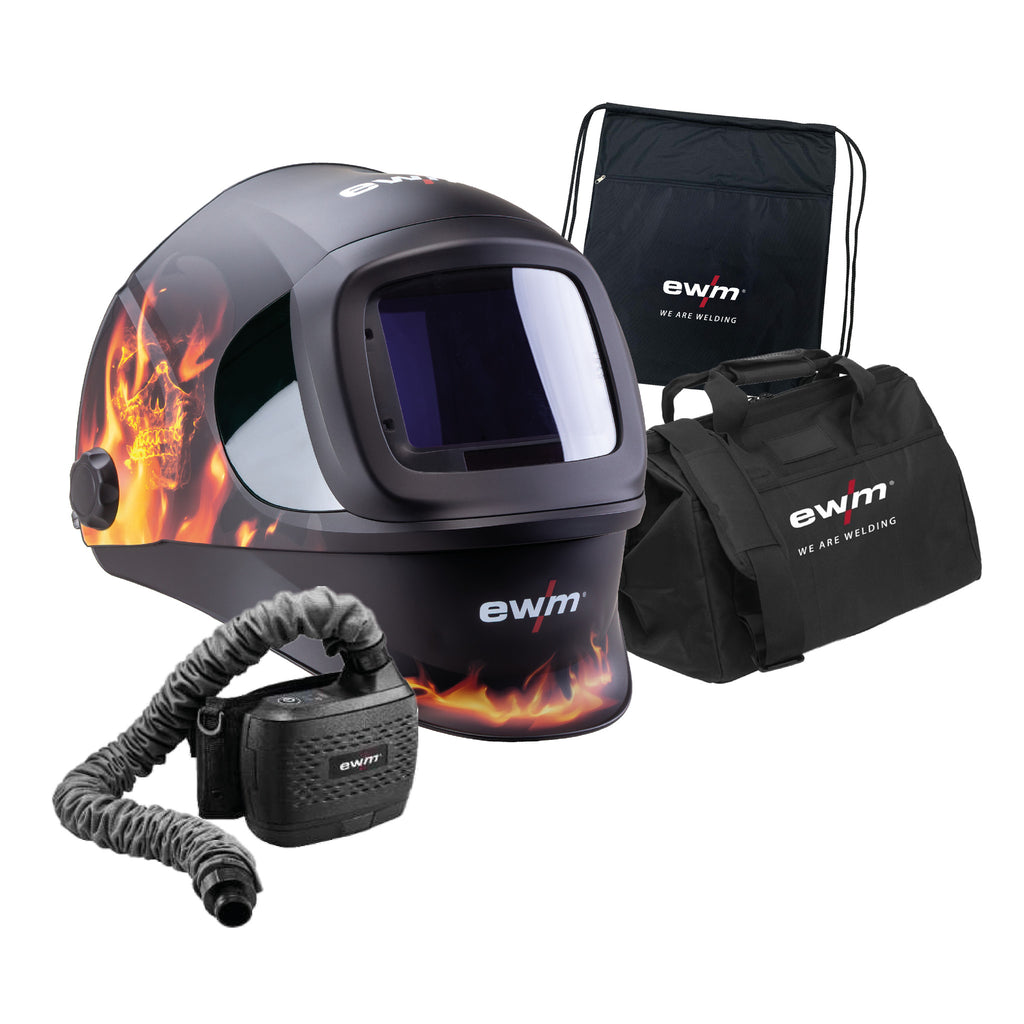

- Scope of delivery (ready to weld):
- 1 x Guardian CLEAN welding helmet incl. connection to fan unit
- 1 x Guardian VENT fan unit with belt and shoulder strap
- 5 x front cover lens
- 2 x inside cover lens
- 2 x button cells
- 1 x face seal
- 1 x hose for the air supply to the helmet incl. textile hose cover
- 1 x AIR FLOW METER air volume test unit
- 1 x lithium-ion battery and charger
- Operating instructions
| Standards | EN 379 |
| Response time light/dark (23 °C) | 0.04 ms |
| Brightening time dark/light | 0.1 ms - 1 s |
| Viewing field | 107 mm x 75 mm |
| Power supply | 2 x CR2450 Lithium 3V |
| Usage | TIG, MIG/MAG, plasma, grinding, oxy-fuel welding/cutting |
| Weight | 1800 g |
| Approvals | |
| Operating temperature | -5 °C - 55 °C |
| Classification to EN 379 | 1/1/1/2" |
| Classification to EN 12941 | TH3 |
Note
- Limited Edition - Set contains:
- Welding helmet Powershield Guardian CLEAN LE (398-019138-00000)
- Fan unit Powershield Guardian VENT (398-017813-00000)
- Bag for fan unit VENT bag (398-018576-00000)
- Welding helmet bag DUSTBAG (398-018881-00000)
