EWM Pico 160 230V, 160Amps

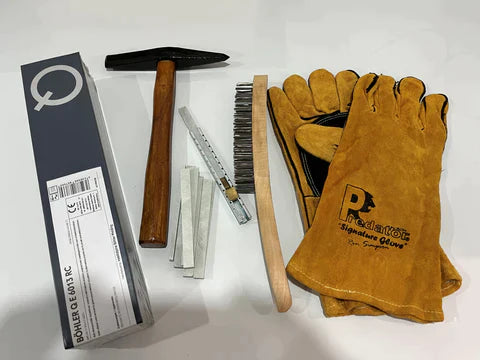

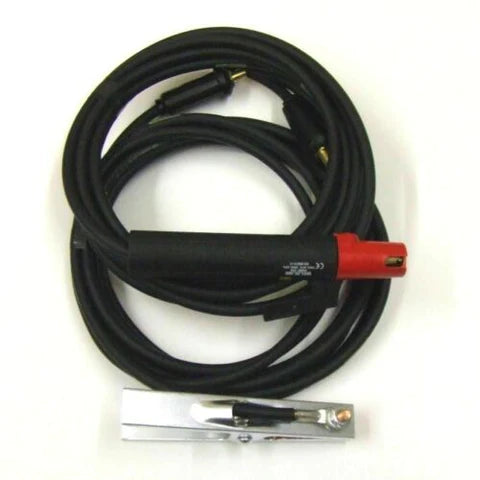

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
- Inverter welding machine, DC
- Welding procedures and functions
- MMA welding
- TIG lift arc welding
- Arcforce, hot start, antistick
- Arcforce and hot start can be set
- Your benefits
- Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
- Robust design suitable for construction site use
- Impact-resistant casing
- Portable, shoulder strap
- Energy-saving thanks to high efficiency and standby function
- Very light-weight – casing made of aluminium and impact-resistant plastic
- IP23 spray water protected
- 3.5 m mains lead with 16 A earthed plug
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
-
Data SheetVersion Pico 160 Setting range for welding current 10 A - 150 A Duty cycle 40 °C 150 A / 35 % 120 A / 60 % 100 A / 100 % Open circuit voltage 105 V Netztoleranzen (ab Werk) -40 % up to +15 % Mains frequency 50 Hz / 60 Hz Recommended generator power 9.9 kVA Protection classification IP23 Test mark EMC class A Dimensions (L x B x H) 370 mm x 129 mm x 236 mm 14.6 inch x 5.1 inch x 9.3 inch Weight 4.9 kg / 10.8 lbs Standards IEC 60974-1 and -10 CL.A - Manual
