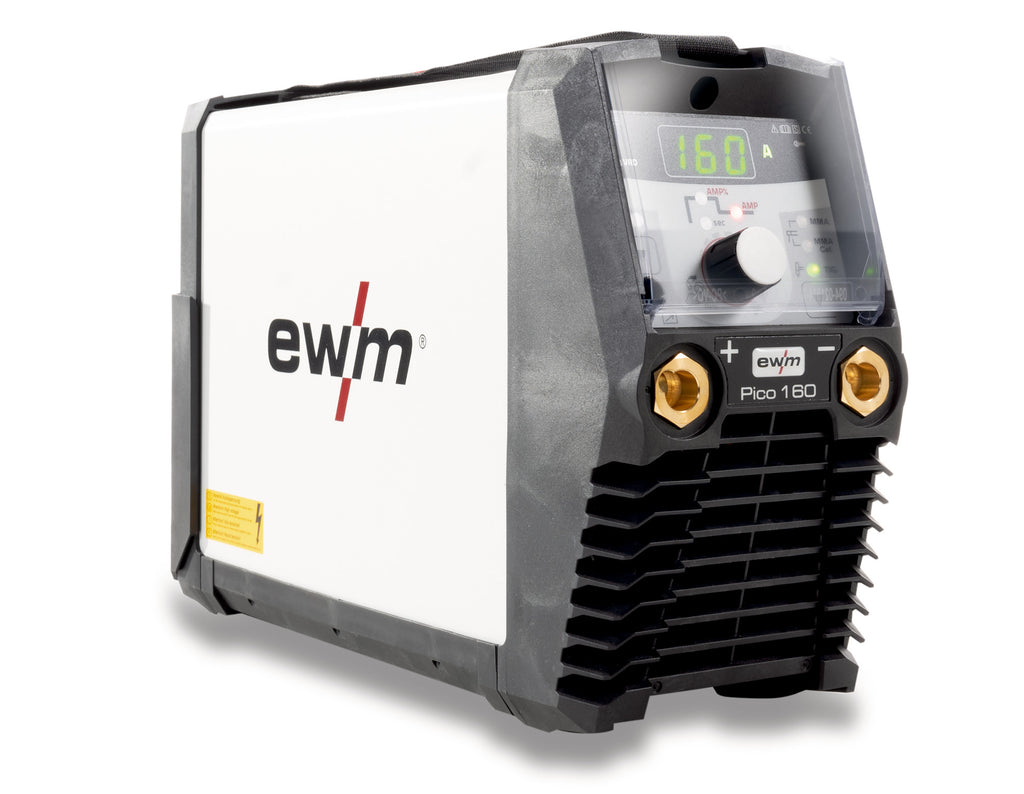

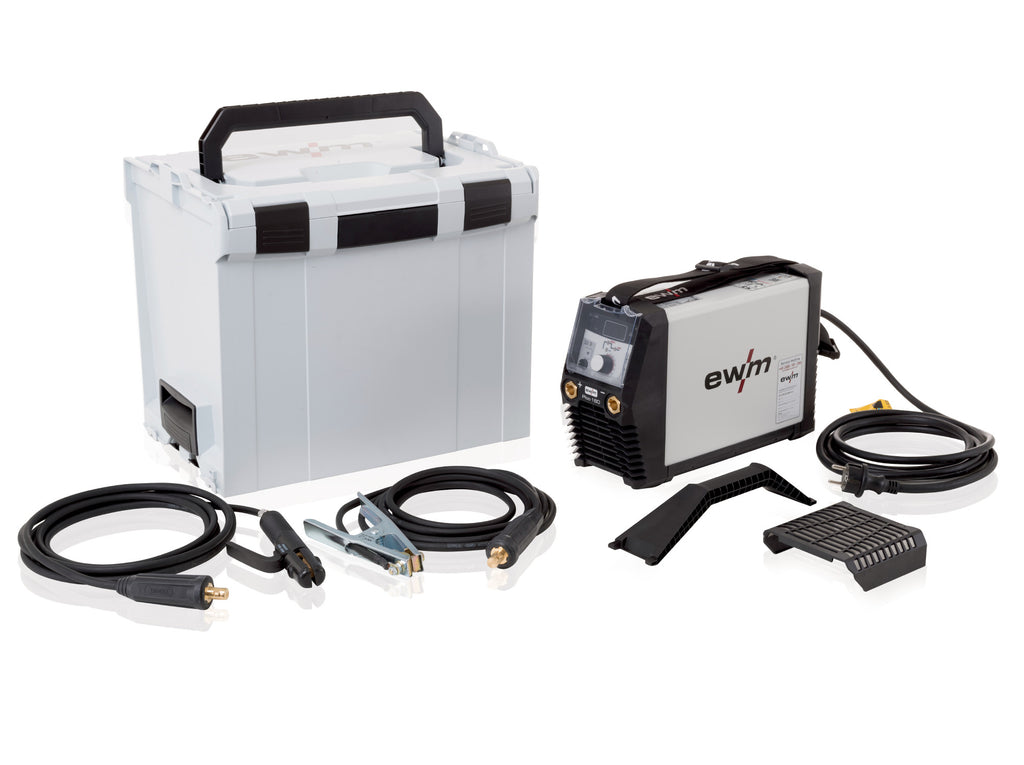

EWM 091-002129-00502 Pico 160 cel puls L-BOXX Set 230V, 160Amps

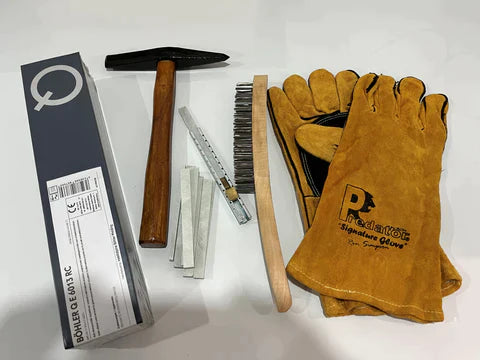

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
- activgauss – degaussing during welding
- Inverter welding machine, DC
- Welding procedures and functions
- MMA and pulsed TIG welding
- MMA welding
- TIG lift arc welding
- Cel characteristic
- Arc-force, hot start, antistick
- Arc-force and hot start can be set
- Your benefits
- Cellulose electrodes: 100% safe for vertical-down welding
- Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
- Welding of stick electrodes up to 4 mm
- Robust design suitable for construction site use
- Impact-resistant casing
- Connection capability for remote control
- Portable, shoulder strap
- Energy-saving thanks to high efficiency and standby function
- Very light-weight – casing made of aluminium and impact-resistant plastic
- IP23 spray water protected
- Available with open circuit voltage reduction, VRD (to AS 1674.2-2003; IEC/DIN EN 60974-1 and ГОСТ 12.2 007.8)
- 3.5 m mains lead with 16 A earthed plug
- Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
| Version | Pico 160 cel puls |
| Setting range for welding current | 5 A - 150 A |
| Duty cycle 40 °C | 150 A / 30 % |
| 120 A / 60 % | |
| 110 A / 100 % | |
| Open circuit voltage | 94 V |
| Mains tolerances (ex works) | -40 % up to +15 % |
| Mains frequency | 50 Hz / 60 Hz |
| Recommended generator power | 9.9 kVA |
| Protection classification | IP23 |
| Test mark | |
| EMC class | A |
| Dimensions (L x B x H) | 370 mm x 129 mm x 236 mm |
| 14.6 inch x 5.1 inch x 9.3 inch | |
| Weight | 4.9 kg / 10.8 lbs |
| Standards | IEC 60974-1 and -10 CL.A |
